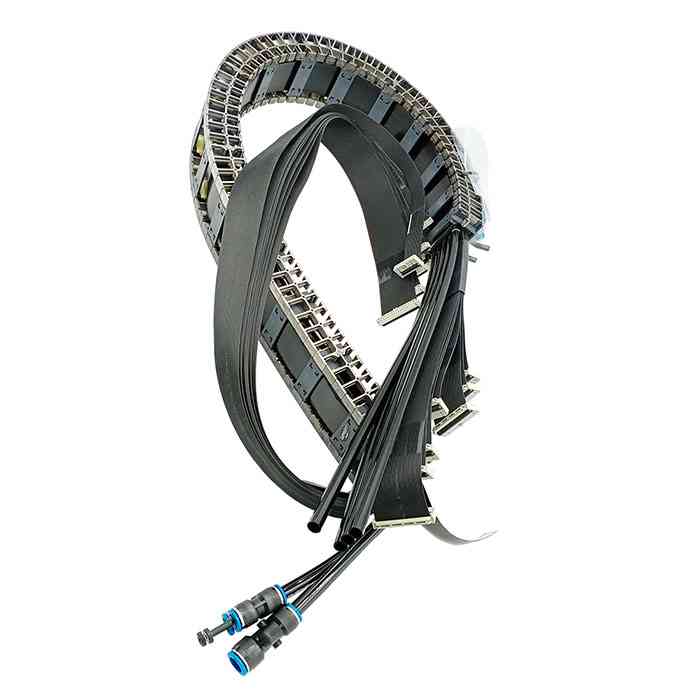

The ASM 03075584 is a specialized, multi-layer vacuum conduit assembly designed to withstand the extreme mechanical stress of the SIPLACE Y-axis trailing chain (E-Chain). Unlike standard industrial tubing, the 03075584 is constructed with a Spiral-Reinforced Elastomer, which prevents the tube from "kinking" or narrowing when bent at tight radii during high-speed gantry transitions. This ensures that the vacuum volume flow remains $100\%$ constant, regardless of the gantry’s position on the Y-axis.
GEEKVALUE provides the 03075584 with a focus on Low-Inertia Surface Friction. The outer jacket of this vacuum cable is treated with a PTFE-Infused Coating, allowing it to slide smoothly against other electrical cables within the trailing chain. This eliminates "Cable-to-Cable Abrasion," which is the primary cause of heat buildup and premature sheath failure in high-speed SMT machines.
Technical Specifications
Feature | Technical Data |
Product Type | Dynamic Trailing Chain Vacuum Conduit |
Part Number (P/N) | 03075584 |
Compatible Machines | SIPLACE X-Series, SX-Series, and D-Series Platforms |
Motion Axis | Y-Axis Trailing Chain (GR Y) |
Structure | Reinforced Anti-Kink Multi-Layer Composite |
Bending Radius | Optimized for Small-Radius E-Chains |
Interface | Precision Quick-Connect Vacuum Couplings |
Strategic Performance Advantages
· Anti-Collapse Structural Integrity: The 03075584 features an Integrated Internal Support Skeleton. In high-vacuum environments, standard tubes can "ovalize" or collapse under external atmospheric pressure, restricting flow. This assembly maintains its perfect circular cross-section, ensuring the placement head always has maximum suction power for large components.
· High-G Vibration Dampening: As the gantry accelerates at $2\text{G}$ to $4\text{G}$, the 03075584 acts as a Kinetic Energy Absorber. Its material composition is tuned to dampen the vibrations traveling from the machine frame to the placement head, resulting in cleaner vacuum sensor readings and improved placement stability.
· Extended Flex-Life Cycle: Tested for over 50 million bending cycles, the 03075584 is engineered to outlast generic aftermarket hoses. Its molecular structure resists "Work Hardening," a phenomenon where plastic becomes brittle over time due to constant movement, ensuring your line remains leak-free for years.
· Vacuum-Tight Integrated Couplings: GEEKVALUE’s 03075584 comes with Factory-Crimped End Fittings. These connectors are leak-tested to $1 \times 10^{-5}\text{ mbar}\cdot\text{l/s}$, ensuring that no air enters the system at the junction points, which is critical for maintaining the high-vacuum thresholds required for 01005 assembly.
The GEEKVALUE Advantage: "Seamless Power in Motion"
1. 360° Total Cost Optimization (TCO)
A hidden leak in a Y-trailing cable forces the vacuum generator to run harder, wasting compressed air and masking the root cause of "Intermittent Pick-up Failures." GEEKVALUE optimizes your TCO by providing 03075584 Assemblies that are Pre-Stress Tested. By installing a reliable conduit, you reduce air consumption and eliminate the "Ghost Alarms" that stop your production line.
2. Trusted by 400+ Public Companies
Global leaders in high-speed telecommunications and automotive electronics trust GEEKVALUE for their gantry infrastructure parts. Our 03075584 cables are the standard choice for listed companies that require "Predictable Maintenance Intervals" for their large-scale SMT fleets.
3. Optimized for "TX/SX" Dynamic Performance
GEEKVALUE’s 03075584 is fully compatible with the Dynamic Trailing Chain Layouts of the latest SIPLACE models. We ensure the length and flexibility parameters match the OEM specifications exactly, preventing "Cable Tensioning" or "Snagging" that can damage the gantry’s linear motors.
Frequently Asked Questions (FAQ)
Q1: How often should the 03075584 vacuum cable be replaced?
In high-volume 24/7 environments, GEEKVALUE recommends a Visual Inspection every 12 months for signs of "Stress Whitening" or jacket abrasion. Total replacement is usually recommended every 3-5 years as part of a major gantry overhaul to prevent sudden failure.
Q2: Can I use a standard 6mm or 8mm pneumatic hose instead?
NO. Standard hoses lack the internal reinforcement to prevent collapse under high vacuum and do not have the specific "Flex-Life" required for trailing chain applications. Using an incorrect hose will lead to vacuum fluctuations and eventually placement errors.
Q3: What causes the 03075584 to wear out faster?
The most common factor is Improper Cable Routing in the trailing chain. If the cable is twisted during installation or compressed by other heavy electrical lines, it will experience localized stress and fail prematurely.
Q4: Is the 03075584 compatible with older S-series machines?
While some dimensions may be similar, the 03075584 is specifically length-optimized for the X and SX series gantry. For older S-series (S23/S27), please consult your parts manual for the specific Trailing Cable P/N.
