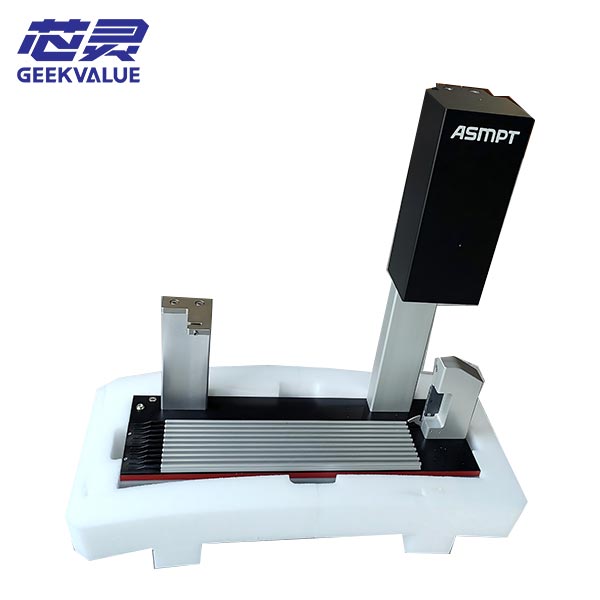

The ASM 03126186 (XFVS) is a high-precision metrology station designed to perform Pre-Production Feeder Audits. In a 01005 or 0201 component environment, the slightest mechanical wear on a feeder's tape-guide or advancement motor can lead to "Pick Failure" or "Component Tombstoning." The XFVS acts as an Offline Diagnostic Hub, allowing maintenance teams to verify the $X/Y$ pick-point accuracy of a feeder before it ever touches the SMT line. By establishing a "Digital Birth Certificate" for each feeder’s mechanical status, the 03126186 eliminates the "Trial-and-Error" adjustment on the machine, which is the leading cause of production downtime.
GEEKVALUE provides the 03126186 with a focus on Data Traceability and Optical Clarity. We ensure the verification optics and the docking interface are precision-aligned, providing a stable platform for the most rigorous quality control audits.
Technical Specifications
Feature | Technical Data |
Product Type | Integrated Feeder Calibration & Verification System |
Part Number (P/N) | 03126186 |
Compatible Feeder Types | SIPLACE S-Feeder, X-Feeder (8mm to 88mm) |
Measurement Scope | $X/Y$ Offset, Advance Stroke Accuracy, Tape Tension |
Interface | Integrated Power & High-Speed Data Link |
Calibration Logic | Software-Guided Step-by-Step Verification |
Build Standard | Aerospace-Grade Thermal Stability Substrate |
Strategic Performance Advantages
· Virtual "Golden Machine" Simulation: The 03126186 mimics the exact electrical and mechanical environment of an X-Series machine. This allows for "True-to-Life" Diagnostics, ensuring that if a feeder passes on the XFVS, it is $100\%$ guaranteed to perform correctly on the gantry, reducing "Ghost Errors" during shift changes.
· Preventive Wear Analysis: Beyond simple alignment, the XFVS software utilized with the 03126186 can detect Motor Torque Fluctuations or Indexing Lag. This enables "Predictive Maintenance," allowing you to service a feeder whose motor is beginning to fatigue before it fails in the middle of a high-priority production run.
· Non-Contact Optical Inspection: GEEKVALUE’s 03126186 provides a stable mount for high-resolution cameras to inspect the Tape Window and Cover Tape Peeling Angle. This ensures that the component exposure is perfect, preventing "Stick-and-Flip" defects that are common with poorly maintained feeder units.
· Universal Feeder Rail Synchronization: The docking rail of the 03126186 is precision-ground to match the SIPLACE Gold-Series and Silver-Series feeder tables. This ensures that the mechanical "Z-height" and "Pitch" of the feeder during testing are identical to its operating position on the gantry.
The GEEKVALUE Advantage: "Verified Before the First Pick"
1. 360° Total Cost Optimization (TCO)
The cost of one "Head Crash" caused by a bent feeder is higher than the cost of a decade of calibration. GEEKVALUE optimizes your TCO by providing the 03126186 XFVS System, enabling Offline Quality Assurance. By shifting the verification process away from the machine, we help you keep your SMT lines running at $100\%$ capacity while maintenance happens in parallel.
2. Trusted by 400+ Public Companies
Global leaders in high-mix automotive safety modules and advanced medical imaging PCBA trust GEEKVALUE for their feeder quality standards. Our 03126186 verification systems are the standard choice for listed companies that require "Zero-Defect Material Delivery" for their premier SIPLACE assets.
3. Optimized for "Smart Factory" Integration
GEEKVALUE’s 03126186 is designed to support the SIPLACE Setup Center logic. We ensure the hardware provides the stable data link required to update the feeder’s internal memory with new calibration offsets, allowing for a truly intelligent and self-correcting SMT environment.
Frequently Asked Questions (FAQ)
Q1: Is the 03126186 a standalone unit or does it require a PC?
The 03126186 is the Hardware Verification Base. It requires a dedicated PC running the SIPLACE XFVS Software and an associated high-resolution camera/microscope setup to perform the visual measurements.
Q2: Can this system calibrate older silver feeders (S-Feeders)?
Yes, the XFVS 03126186 is designed to be backward compatible with both the newer X-Feeders and the standard S-Feeders, provided you have the correct software licenses and interface cables.
Q3: How often should the XFVS hardware itself be calibrated?
To maintain the "Master Standard" status, GEEKVALUE recommends a Mechanical Alignment Check on the 03126186 every 12 months using a "Golden Feeder" or a certified calibration jig to ensure the base hasn't shifted.
Q4: Does the XFVS 03126186 verify the feeder's RFID chip?
Yes. When a feeder is docked into the 03126186, the system reads the internal RFID data. This allows the software to log the calibration history against that specific serial number, creating a full traceability trail for ISO audits.
Q5: How is this comprehensive verification station packaged?
Every 03126186 is shipped in a Reinforced Laboratory-Grade Crate with anti-static and anti-vibration layering. We ensure that the docking interfaces and the optical mounting points are protected from any deformation during transit, ensuring the system arrives "Audit-Ready."
