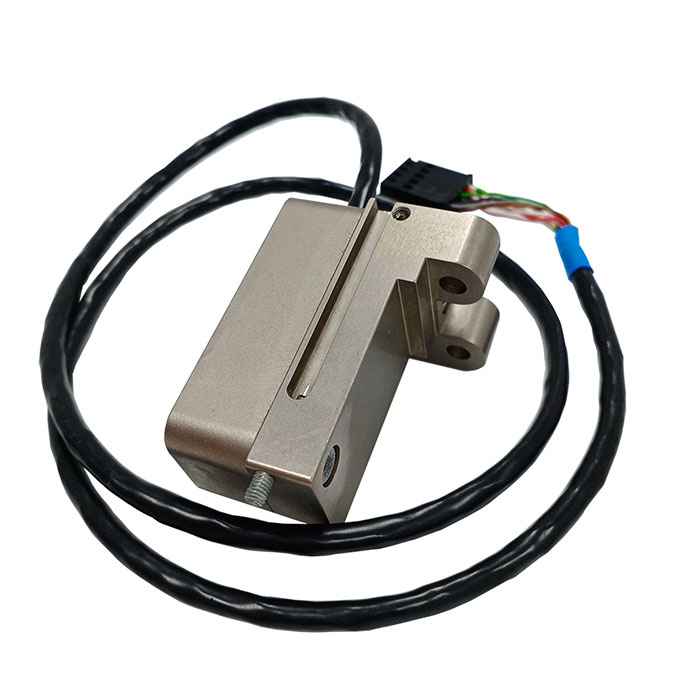

The ASM 03020588 is a high-performance optical linear encoder head designed for the primary X-axis of the SIPLACE gantry. This module is the heart of the machine's "Closed-Loop Servo System." It utilizes an advanced Infrared Interferometry Logic to read the fine-pitch graduations of the X-axis scale tape. Unlike standard encoders, the 03020588 is engineered for "High-Speed Signal Sampling," ensuring that the positional feedback remains jitter-free even when the gantry is moving at its maximum rated velocity.
GEEKVALUE provides the 03020588 with a focus on Optical Path Integrity. We understand that in SMT environments, microscopic dust or oil mist can interfere with light transmission. Our units are verified for Signal Amplitude Stability, ensuring that the "Sine/Cosine" output waves are perfectly balanced to prevent interpolation errors that lead to placement offsets.
Technical Specifications
Feature | Technical Data |
Product Type | Precision Optical Read Head |
Part Number (P/N) | 03020588 |
Axis Compatibility | Main X-Axis Gantry |
Machine Compatibility | SIPLACE X2, X3, X4, SX1, SX2 Series |
Resolution Support | Sub-Micron Precision Feedback |
Signal Type | High-Frequency Analog/Digital Differential |
Housing | Electromagnetic Shielding (EMS) Grade Alloy |
Strategic Performance Advantages
· Active Signal Gain Compensation: The 03020588 features an Integrated Auto-Gain Controller. If the optical scale becomes slightly soiled, the read head automatically boosts its internal signal sensitivity to maintain a stable reading, preventing "Positioning Errors" and sudden machine E-stops during critical production runs.
· Non-Contact Sensing Technology: Designed for Zero-Friction Operation, the 03020588 maintains a precise air gap between the sensor and the scale. This eliminates mechanical wear, ensuring that the machine’s accuracy does not degrade over years of 24/7 high-speed operation.
· Thermal Expansion Neutrality: The internal optical bench of the 03020588 is constructed from Low-Expansion Materials. This ensures that the distance measurement remains accurate even as the gantry temperature rises during prolonged high-speed sessions, eliminating the need for frequent "Warm-up" recalibrations.
· Vibration-Resistant SMT Circuitry: Inside the head, the signal processing PCB is Encapsulated in Anti-Vibration Resin. This protects the delicate electronic components from the constant harmonic resonance of the linear motors, ensuring a MTBF (Mean Time Between Failure) that far exceeds generic alternatives.
The GEEKVALUE Advantage: "Mastering the Spatial Coordinate"
1. 360° Total Cost Optimization (TCO)
A failing read head often causes intermittent "X-Axis Following Errors" that are difficult to pin down. GEEKVALUE optimizes your TCO by providing 03020588 Read Heads with Verified Signal-to-Noise Ratios (SNR). By ensuring a "Clean" digital signal from the start, we help you avoid the expensive labor costs involved in troubleshooting phantom gantry glitches.
2. Trusted by 400+ Public Companies
Global leaders in high-density server motherboard assembly and flagship smartphone production trust GEEKVALUE for their gantry feedback systems. Our 03020588 read heads are the standard choice for listed companies that require "Absolute Positional Certainty" for their most advanced SMT production lines.
3. Optimized for "TX/SX" High-G Performance
GEEKVALUE’s 03020588 is fully stress-tested for the high-acceleration profiles of the latest SIPLACE models. We ensure that the mounting interface and the high-flex cable connection are factory-perfect, facilitating a seamless "Plug-and-Play" replacement that maintains the sub-micron integrity of your gantry.
Frequently Asked Questions (FAQ)
Q1: What are the primary signs of a failing 03020588 read head?
The most common symptoms are "X-Axis Grating Scale Alarms," inconsistent placement in the X-direction, or the machine failing its "Initialization" phase. If you notice a "Jumping" movement in the gantry during slow-jogging, the read head may be losing signal pulses.
Q2: Can I clean the lens of the 03020588?
Yes, but only with Specialized Optical Grade Swabs and anhydrous alcohol. Never use a dry cloth or pressurized air, as micro-scratches on the lens will diffuse the light and lead to permanent signal degradation.
Q3: How does this read head handle "Scale Tape" contamination?
While the 03020588 has some gain compensation, it is vital to keep the scale tape clean. GEEKVALUE recommends a Dual-Step Cleaning Process: Clean the scale with a lint-free wipe, then verify the read head's "Signal Strength" via the SIPLACE maintenance software.
Q4: Is any specialized calibration required after replacement?
After replacing the 03020588, a "Gantry Calibration" and "Scale Offset Calibration" are mandatory. This ensures the machine's software correctly maps the new sensor's zero-point to the PCB's physical coordinates.
