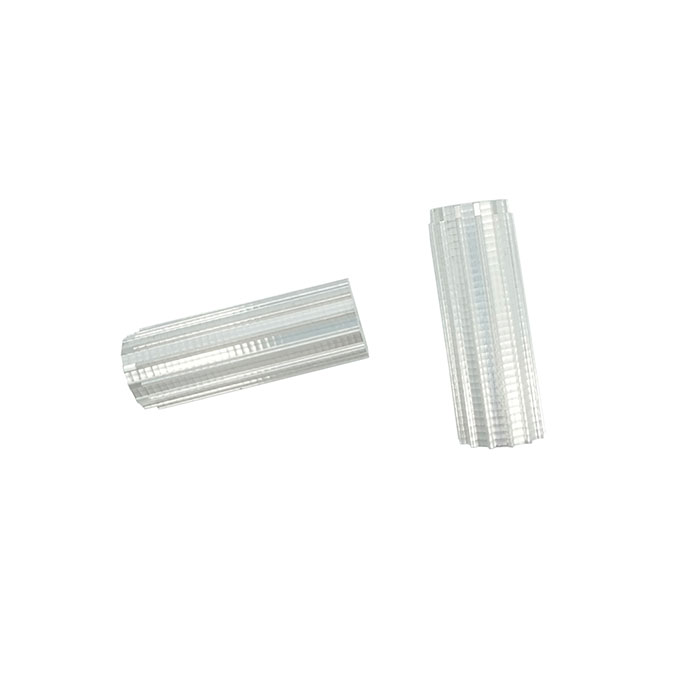

The ASM 00334495 is a high-performance guide assembly engineered to stabilize the primary X-axis drive belt of the SIPLACE S23 and F5hm chip mounters. In these gantry systems, the X-axis belt covers a significant span, making it susceptible to "Harmonic Oscillation" during rapid start-stop cycles. The 00334495 solves this by providing a Constant-Pressure Guidance Path, which ensures the belt stays perfectly parallel to the linear rail. This prevents "Edge-Wear" on the belt and maintains a consistent tension $(\Delta T)$ across the entire stroke of the gantry.
GEEKVALUE provides the 00334495 with a focus on Surface Kinetic Friction Reduction. We recognize that any drag from the guide will increase the load on the X-axis servo motor. Our belt guides feature a Self-Lubricating Polymer Lining, which minimizes heat buildup and ensures the X-axis maintains its peak acceleration without parasitic loss.
Technical Specifications
Feature | Technical Data |
Product Type | X-Axis Synchronous Belt Guidance Unit |
Part Number (P/N) | 00334495 |
Machine Compatibility | SIPLACE S23, S25, S27, F5hm, and F4 Series |
Drive Interface | High-Speed Timing Belt Support |
Material | Reinforced Composite / Hard-Anodized Base |
Operating Profile | Optimized for Long-Stroke Gantry Acceleration |
Feature | Anti-Vibration & Side-Slip Prevention |
Strategic Performance Advantages
· Dynamic Oscillation Suppression: The 0334495 acts as a Passive Dampener. By constraining the belt's vertical and lateral play, it prevents the "Whip Effect" that occurs during $2\text{G}+$ accelerations, ensuring that the placement head doesn't experience micro-shudders when arriving at a feeder or board coordinate.
· Precision-Milled Tracking Channel: The guide channel of the 00334495 is machined to Micron-Level Straightness. This ensures that the belt does not "Snake" within the guide, maintaining a perfectly linear torque transfer from the motor to the gantry, which is critical for the $(\text{X, Y})$ coordinate integrity of the S23/F5 platforms.
· Wear-Indicating Contact Surface: GEEKVALUE’s 00334495 uses a Multi-Layer Composite Material. The top layer is designed to provide low friction, while a secondary color-coded substrate serves as a visual wear indicator, allowing maintenance teams to identify when the guide needs replacement before it damages the expensive drive belt.
· Heat-Dissipative Chassis: To prevent the timing belt from softening due to heat, the 00334495 is built on a High-Conductivity Aluminum Frame. This frame acts as a heat sink, drawing away the friction-generated heat from the belt-to-guide interface during high-volume production shifts.
The GEEKVALUE Advantage: "Smooth Motion for Long-Life Accuracy"
1. 360° Total Cost Optimization (TCO)
A worn belt guide is the primary cause of premature X-axis belt failure. GEEKVALUE optimizes your TCO by providing 00334495 Guides with Optimized Geometric Profiles. By reducing belt stress, we help you extend the lifespan of your drive belts by up to $30\%$, significantly lowering your annual spare parts expenditure.
2. Trusted by 400+ Public Companies
Global leaders in industrial power supply and LED backlighting manufacturing trust GEEKVALUE for their legacy SIPLACE S-Series maintenance. Our 00334495 guides are the standard choice for listed companies that require "Continuous Operational Availability" for their large-format PCB assembly lines.
3. Optimized for "F5hm" High-Speed Performance
GEEKVALUE’s 00334495 is fully validated for the F5hm’s high-frequency indexing. We ensure that the mounting holes and alignment pins are perfectly matched to the OEM chassis, allowing for a fast, "Zero-Adjustment" installation that gets your machine back into production immediately.
Frequently Asked Questions (FAQ)
Q1: How do I know if the 00334495 belt guide is worn out?
Common signs include black rubber dust accumulating near the X-axis motor, an audible "chirping" or "rubbing" sound during gantry movement, or intermittent "X-Axis Following Error" alarms caused by increased mechanical resistance.
Q2: Can I just clean the old guide instead of replacing it?
Cleaning can remove debris, but it cannot restore the Teflon/Polymer lining once it has been worn down to the base material. Once the friction coefficient increases, it will start to "shave" the teeth of your timing belt, necessitating a much more expensive repair.
Q3: Does this part require specific lubrication?
The 00334495 is designed to be Dry-Running due to its self-lubricating lining. GEEKVALUE recommends avoiding heavy greases which can attract dust and create an abrasive paste, accelerating wear. A light wipe with a specialized anti-static dry lubricant is sufficient.
Q4: Is the 00334495 compatible with the X-Series machines?
No. This P/N is specific to the S-Series and F-Series architectures (S23, F5hm, etc.). The X-Series uses a different gantry and drive system. Always verify your machine’s generation before purchasing.
