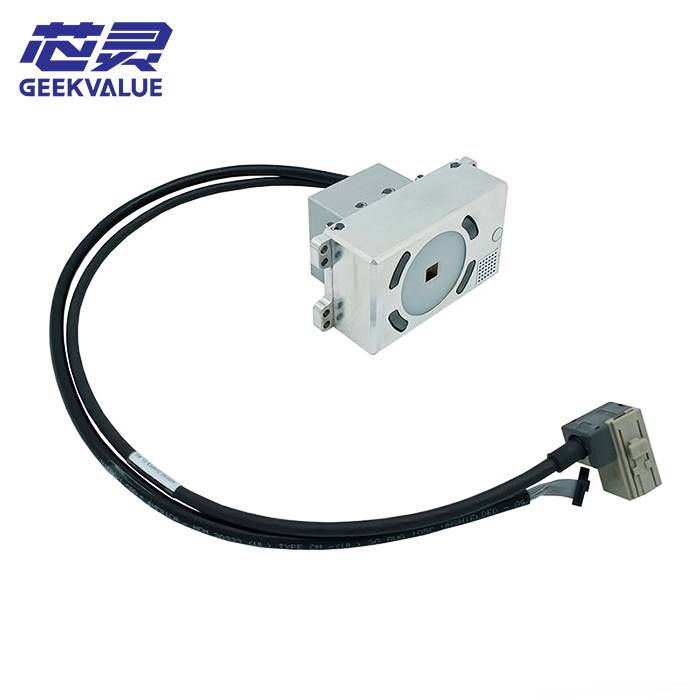

The ASM 03101402 (Type 34) is a high-speed, high-resolution digital imaging sensor engineered for the world’s fastest placement machines. Unlike standard cameras, the Type 34 is integrated with a Proprietary DSP (Digital Signal Processor) that performs hardware-level image pre-processing. This allows the camera to filter out noise and extract component leads or solder ball (BGA) outlines before the data even reaches the main computer.
GEEKVALUE provides the 03101402 with a focus on Optical Path Parallax Correction. We understand that in ultra-fine pitch placement (such as 01005 or 008004), even a microscopic tilt in the camera lens can cause a calculated offset error. Our Type 34 cameras undergo Laser-Axis Alignment Validation, ensuring the optical center and the sensor center are perfectly coaxial.
Technical Specifications
Feature | Technical Data |
Product Type | High-Definition Intelligent SMT Camera |
Part Number (P/N) | 03101402 |
Camera Series | Type 34 |
System Compatibility | SIPLACE TX, SX, and X-Series |
Resolution | Sub-Micron Effective Pixel Pitch |
Shutter Type | Ultra-Fast Global Shutter (Zero Motion Blur) |
Interface | High-Bandwidth LVDS / Digital Data Link |
Strategic Performance Advantages
· Zero-Blur Global Shutter Technology: The 03101402 utilizes a Global Shutter Sensor, which captures the entire frame at once rather than scanning line-by-line. This is critical for SIPLACE machines moving at $4\text{m/s}$, ensuring that the images of 0201 or CSP components are captured with razor-sharp edges and no motion distortion.
· Multi-Spectral Illumination Compatibility: Type 34 is optimized to work with ASMPT’s Multi-Level LED Lighting. It can distinguish between reflective solder balls and dull component bodies, allowing for the precise recognition of complex 3D structures like PoP (Package-on-Package) or tall shielded inductors.
· High-Dynamic Range (HDR) Sensing: To handle the "Shiny Object" problem in SMT, the 03101402 features HDR Image Logic. It can simultaneously capture detail in the dark shadows of a component's underside and the high-glint reflections of gold-plated leads without "blooming" or losing detail.
· Vibration-Isolated Optical Housing: Mounted in a high-acceleration gantry environment, the 03101402 is encased in a Thermally Stable, Anti-Vibration Alloy Case. This prevents the optical elements from shifting due to the massive $G\text{-forces}$ generated during the placement cycle.
The GEEKVALUE Advantage: "Visual Clarity, Absolute Accuracy"
1. 360° Total Cost Optimization (TCO)
A degraded camera leads to increased "Vision Retry" errors, which can drop your line efficiency by 20% or more. GEEKVALUE optimizes your TCO by providing 03101402 Cameras with Certified Pixel Integrity. By ensuring every camera meets 100% of the OEM signal-to-noise ratio, we minimize expensive "False Rejects" of good components.
2. Trusted by 400+ Public Companies
Global leaders in 5G infrastructure and high-end server manufacturing trust GEEKVALUE for their vision system maintenance. Our Type 34 cameras are the standard choice for listed companies that require "Flawless Recognition" of the latest generation of micro-semiconductors.
3. Optimized for "TX-Series" Peak Performance
GEEKVALUE’s 03101402 is fully calibrated for the SIPLACE SVP (SIPLACE Vision Pro) software suite. We ensure the camera's firmware and data-link speeds are fully compatible with the latest machine OS versions, enabling seamless integration into your most advanced production lines.
Frequently Asked Questions (FAQ)
Q1: How do I know if my Type 34 camera (03101402) is failing?
Key indicators include a sudden spike in "Vision Errors," blurry component images in the diagnostic window, or "Camera Communication Lost" alarms. If the machine frequently fails to recognize 01005 passives despite correct lighting, the camera sensor may be degrading.
Q2: Does GEEKVALUE provide calibration services for this camera?
The 03101402 is a digital unit that requires Software-Level Calibration upon installation. GEEKVALUE provides a detailed guide on how to perform the "Camera Calibration" routine using the SIPLACE standard calibration plates.
Q3: Can this camera be used to recognize BGA balls?
Yes. The Type 34 is excellent for BGA, CSP, and WLCSP recognition. Its high resolution allows for the individual inspection of solder ball diameter and pitch during the flight-over process.
Q4: How should I clean the camera lens?
Only use Non-Abrasive, Optical-Grade Cleaning Wipes and specialized lens cleaner. Never use standard workshop compressed air, as it can contain oil droplets that will permanently damage the optical coating.
Q5: What is the packaging standard for this high-value component?
Every 03101402 is shipped in a Custom-Molded Anti-Static Case with multi-layer vibration dampening. We use vacuum-sealed moisture-barrier bags to ensure the sensitive CMOS sensor remains in pristine condition during international transit.
