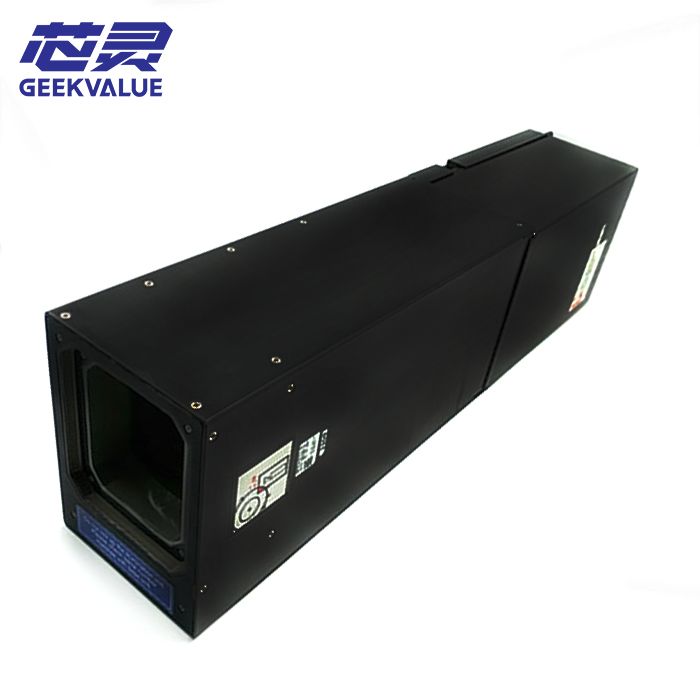

The ASM 03016339 (Type 33) is a foundational component of the SIPLACE optical inspection ecosystem. While newer micro-cameras focus on 01005 passives, the Type 33 remains the "heavy-lifter" for complex component geometries. Its primary engineering feat is its Telecentric Lens System, which ensures that the magnification of a component remains constant even if the component's Z-height varies slightly during the flight-over process. This is critical for the accurate placement of tall inductors, connectors, and large electrolytic capacitors.
GEEKVALUE provides the 03016339 with a focus on Bit-Depth Signal Integrity. In older digital systems, "image noise" can lead to false lead-count alarms. Our Type 33 units are verified for Signal-to-Noise Ratio (SNR) Optimization, ensuring clear, high-contrast images of component bottoms even under challenging ambient lighting conditions.
Technical Specifications
Feature | Technical Data |
Product Type | Wide-Field Industrial SMT Camera |
Part Number (P/N) | 03016339 |
Camera Series | Type 33 |
System Compatibility | SIPLACE S20-S27, F4/F5, G-Series, and X-Series |
Optical System | Telecentric Precision Optics |
Key Capability | Large IC (QFP, BGA) & Odd-form Component Recognition |
Data Interface | Proprietary SIPLACE Digital Vision Link |
Strategic Performance Advantages
· Geometric Distortion Compensation: The 03016339 utilizes a Multi-Element Glass Lens Stack that is factory-calibrated to minimize "Barrel Distortion" at the edges of the视场. This allows for the precise measurement of outer leads on large QFP packages $(\text{up to } 40\text{mm}+)$ without the warping effects common in lower-grade optics.
· Dynamic Exposure Logic: To handle the different reflectivity of plastic bodies, tinned leads, and gold pads, the Type 33 features Adaptive Gain Control. This ensures that the solder balls of a BGA are as clearly defined as the dark body of a PLCC, enabling a 99.9% first-pass recognition rate.
· Vibration-Resistant Matrix Sensor: Mounted within the machine's robust frame, the internal CCD/CMOS sensor of the 03016339 is secured via Shock-Absorptive Gaskets. This prevents "Pixel Jitter" caused by the movement of adjacent high-speed gantries, maintaining image sharpness at all times.
· Optimized Spectral Response: The Type 33 is specifically tuned for the 630nm-660nm (Red) LED Spectrum used in standard SIPLACE lighting units. This narrow-band sensitivity allows the camera to ignore interference from factory overhead lighting (fluorescent or HID), providing a consistent black-and-white silhouette for the SVP software.
The GEEKVALUE Advantage: "Visual Reliability for Complex Geometry"
1. 360° Total Cost Optimization (TCO)
For older machine platforms, a failing camera often means high "Reject Rates" for expensive ICs. GEEKVALUE optimizes your TCO by providing 03016339 Cameras with Certified Optical Clarity. By restoring the vision system to factory-new standards, we reduce the volume of "good" parts sent to the waste bin due to blurry recognition.
2. Trusted by 400+ Public Companies
Global leaders in industrial power supply and automotive dashboard assembly trust GEEKVALUE for their legacy vision components. Our Type 33 cameras are the standard choice for listed companies that maintain "Stable-Process" lines for long-lifecycle industrial products.
3. Rigorous Geometric Validation
GEEKVALUE’s 03016339 units undergo a Grid-Target Accuracy Test. We verify that the camera can accurately measure a reference grid across the entire视场 within a $10\mu\text{m}$ tolerance, ensuring your large-package placement remains within IPC Class 3 standards.
Frequently Asked Questions (FAQ)
Q1: Is Type 33 (03016339) interchangeable with Type 34?
No. Type 33 and Type 34 have different resolutions and fields of view. The Type 33 is generally larger and optimized for larger components, whereas Type 34 is tuned for high-speed micro-component alignment. Always check your machine's software configuration.
Q2: What is the most common failure point for the 03016339?
The most frequent issue is Internal Dust Ingress or "Pixel Burn" from years of 24/7 exposure. If you see permanent dark spots or "lines" in your vision diagnostic window, the sensor or optics likely require professional refurbishment or replacement.
Q3: Can this camera recognize 0201 passives?
While it can see them, the Type 33's magnification is optimized for larger视场. For high-speed 0201 or 01005 production, SIPLACE machines typically use a dedicated high-resolution camera (like Type 30 or Type 34) in conjunction with the Type 33.
Q4: How does GEEKVALUE handle the shipping of such delicate optics?
Every 03016339 is shipped in a Double-Boxed Anti-Vibration System. The camera is first placed in a form-fitting ESD-safe foam enclosure, which is then suspended within a secondary shipping crate to ensure no mechanical shock reaches the lens alignment.
Q5: Does this camera require a specific driver?
The camera is recognized at the Hardware-Abstraction Layer (HAL) of the SIPLACE OS. Once plugged into the correct vision card and calibrated via the machine's "Vision Calibration" wizard, it is fully "Plug-and-Play."
