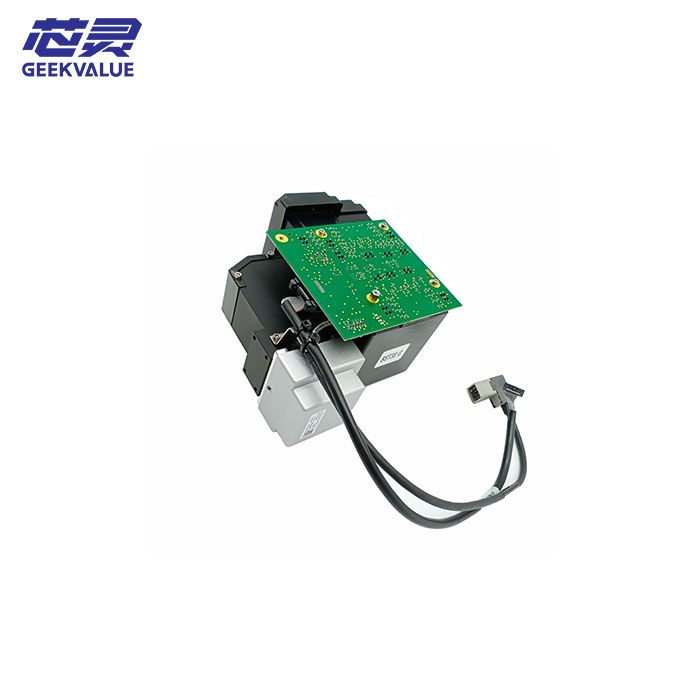

The ASM 03101672 represents the digital evolution of the Type 30 camera family. Optimized for the Collect & Place (C+P) architecture, this camera utilizes a Gigabit Ethernet (GigE) interface to eliminate the bandwidth bottlenecks associated with older analog or FireWire systems. With a 27x27mm square sensor, it provides a perfectly symmetrical field of view, ideal for recognizing square chips and multi-leaded QFPs in a single snapshot.
GEEKVALUE provides the 03101672 with a focus on Stream Integrity. In a high-speed SMT environment, "Packet Loss" is unacceptable. Our cameras are verified for Low-Jitter Data Transmission, ensuring that the vision system receives high-fidelity component images without frame-dropping, even when the machine is operating at its maximum rated CPH.
Technical Specifications
Feature | Technical Data |
Product Type | Digital GigE Vision Camera (Type 30) |
Part Number (P/N) | 03101672 |
Sensor Area | 27 x 27 mm (High-Resolution Square Array) |
Interface Protocol | Gigabit Ethernet (GigE) / 1000Base-T |
Scanning Mode | Progressive Scan with Global Shutter |
Integration | Optimized for C+P (Collect & Place) Logic |
Power Supply | PoE (Power over Ethernet) or Dedicated DC Input |
Strategic Performance Advantages
· Packet-Resend Technology: The 03101402 utilizes a robust GigE Vision Control Protocol. In the event of electromagnetic interference from linear motors, the camera’s firmware can automatically trigger a "Packet Resend," ensuring that a single bit of electrical noise doesn't result in a "Vision Recognition Fail" and a machine stop.
· Pixel-Level Shading Correction: To account for the high-intensity LED lighting used in SIPLACE gantries, the 03101672 includes On-Board Flat-Field Normalization. This ensures that the brightness of a component lead in the corner of the 27x27mm FOV is identical to one in the center, facilitating accurate sub-pixel measurement.
· Near-Zero Motion Blur: Featuring a High-Speed Global Shutter, the 03101672 captures all pixels simultaneously. This is essential for C+P heads, where the component is moving past the camera at high velocity. It ensures that the edges of a 0201 component remain sharp and distinct for the alignment algorithm.
· Direct-to-Memory (DMA) Transfer: GEEKVALUE’s 03101672 is engineered to support Zero-Copy Image Transfer. This allows the image data to bypass the machine's primary CPU and go directly to the Vision PC's memory, reducing "System Latency" and allowing for faster decision-making during high-speed production.
The GEEKVALUE Advantage: "Visual Speed, Digital Reliability"
1. 360° Total Cost Optimization (TCO)
Vision errors are the leading cause of "False Rejects," where perfectly good components are thrown away. GEEKVALUE optimizes your TCO by providing 03101672 Cameras with Verified Signal-to-Noise Ratios (SNR). By providing a cleaner digital signal, we help you lower your scrap rate and increase the overall efficiency of your high-speed lines.
2. Trusted by 400+ Public Companies
Global leaders in 5G infrastructure PCBA and automotive radar module assembly trust GEEKVALUE for their GigE vision systems. Our 03101672 cameras are the standard choice for listed companies that require "High-Throughput Digital Certainty" for their most advanced SIPLACE X and SX gantry systems.
3. Optimized for "Type 30" Optical Geometry
GEEKVALUE’s 03101672 is factory-matched to the Standard SIPLACE 27x27mm Lens Mount. We ensure that the sensor's physical center is perfectly aligned with the optical axis, allowing for a "Plug-and-Play" replacement that requires minimal geometry re-calibration.
Frequently Asked Questions (FAQ)
Q1: How do I distinguish the GigE 03101672 from the older analog 0308-series Type 30 cameras?
The 03101672 features an RJ45 Ethernet Port (or a specialized GigE circular connector) rather than the multi-pin analog interfaces found on older versions. You can also identify it in the machine's "Station Description" as a "GigE" or "Digital" vision device.
Q2: Is a special network card required for this camera?
Yes, the 03101672 requires a Dedicated Gigabit Ethernet Vision Controller within the machine's PC. Using a standard office-grade NIC can lead to performance issues and "Buffer Overflow" errors during high-speed recognition cycles.
Q3: Can I use this camera to recognize ultra-small 01005 components?
Absolutely. The 27x27mm sensor on the 03101672 provides high pixel density, which, when paired with the correct lens, allows for the precise recognition of micro-passive components. However, always ensure your machine's Vision Lighting is calibrated for these smaller targets.
Q4: Does the camera require software drivers?
The 03101672 follows the GigE Vision Standard, but it requires the specific ASM SIPLACE Vision Driver Package to be installed. GEEKVALUE recommends verifying that your machine software version supports the 0310-series GigE architecture before installation.
