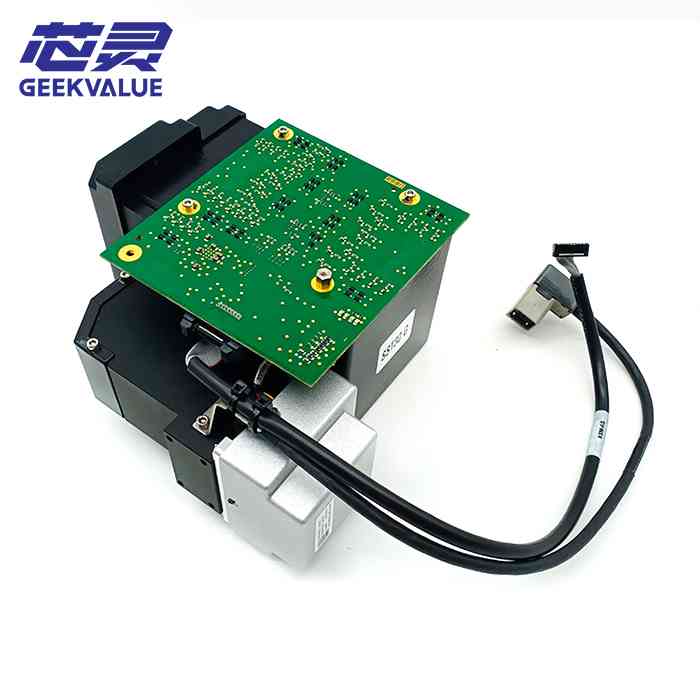

The ASM 03101672 (Type 30) represents the cutting edge of industrial imaging for SMT. While standard cameras struggle with the reflective properties and minuscule surface area of the latest generation of passives, the Type 30 utilizes an Optimized CMOS Sensor Architecture. This architecture is specifically tuned for Low-Contrast Detection, allowing the camera to perfectly distinguish the termination points of a 01005 resistor against the background of the nozzle tip with absolute clarity.
GEEKVALUE provides the 03101672 with a focus on Chromatic Aberration Suppression. In high-speed imaging, light refraction can cause "Color Fringing" at component edges, leading to calculation offsets. Our Type 30 units feature Apochromatic Lens Coatings, ensuring that the light of different wavelengths reaches the sensor at the same focal point, providing a crisp, true-to-life silhouette for the machine's vision logic.
Technical Specifications
Feature | Technical Data |
Product Type | Ultra-High Resolution Micro-Alignment Camera |
Part Number (P/N) | 03101672 |
Camera Series | Type 30 |
Platform Compatibility | SIPLACE TX, SX (Optimized for High-Speed Heads) |
Sensor Type | High-Sensitivity Global Shutter CMOS |
Imaging Logic | Real-Time Sub-Pixel Edge Extraction |
Data Link | Ultra-High Bandwidth Fiber/Digital Interface |
Strategic Performance Advantages
· High-Speed Pipeline Processing: The 03101402 integrates a Dedicated FPGA Image Processor. This allows the camera to perform real-time "Thresholding" and "Blob Analysis" within the camera head itself. By offloading these tasks from the main PC, the system can process images at the full cycle speed of the CP20/CP12 heads without a single "Wait-State."
· Nano-Aperture Sharpness: The Type 30 lens system is engineered for an Extreme Depth of Field (DoF). This ensures that even if a component is slightly tilted on the nozzle, the entire component remains in sharp focus, preventing the "Soft Edge" effect that causes placement inaccuracy in SiP (System-in-Package) applications.
· Intelligent Gain Synchronization: This camera works in perfect harmony with SIPLACE Smart-Lighting. It can adjust its internal gain $(\text{ISO})$ in nanoseconds to compensate for varying component reflections, ensuring that a gold-plated terminal and a matte-black body are captured with equal detail in the same frame.
· Thermally-Isolated Sensor Mount: To prevent "Thermal Noise" (image graininess) during 24/7 high-speed operation, the 03101672 features a Heat-Dissipative Chassis. This keeps the sensor at a stable temperature, maintaining a consistent signal-to-noise ratio regardless of the factory floor temperature.
The GEEKVALUE Advantage: "Visual Precision at Warp Speed"
1. 360° Total Cost Optimization (TCO)
In micro-component贴装, the cost of a "False Reject" (throwing away a good part because the camera couldn't see it clearly) can be staggering. GEEKVALUE optimizes your TCO by providing 03101672 Cameras with Verified Pixel Fidelity. We guarantee zero "Dead Pixels" in the critical sensing zone, ensuring every 01005 component is recognized on the first pass.
2. Trusted by 400+ Public Companies
Global leaders in 5G smartphone manufacturing and advanced semiconductor packaging trust GEEKVALUE for their high-end vision infrastructure. Our Type 30 cameras are the standard choice for listed companies that require "Micro-Level Process Control" for their most sophisticated electronic assemblies.
3. Optimized for "Zero-Downtime" Integration
GEEKVALUE’s 03101672 is fully "Plug-and-Play" with the latest SIPLACE Vision Pro software. We ensure that the camera's internal ID and firmware are fully updated to match current machine OS requirements, allowing for an instant return to production after replacement.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between Type 30 (03101672) and Type 34?
The Type 30 is the more advanced, higher-resolution variant specifically optimized for the extreme micro-scale (01005/03015). While Type 34 is a versatile high-speed camera, Type 30 provides the higher pixel density required for the most challenging miniaturization tasks.
Q2: How do I troubleshoot a "Vision System Error" involving this camera?
First, check the Diagnostic Image Dump in the SIPLACE software. If the images appear "grainy" or have persistent vertical lines, it indicates a sensor failure. If the image is simply dark, verify the LED lighting power supply before replacing the camera.
Q3: Can this camera handle BGA/CSP inspection?
Absolutely. Its high resolution makes it ideal for inspecting micro-BGA solder balls, allowing the system to verify not just the position, but the presence and integrity of individual balls during the flight-over cycle.
Q4: Is specialized maintenance required for Type 30 optics?
Yes. Due to the high magnification, even a speck of dust on the lens is visible. GEEKVALUE recommends using Ionized Air to blow off dust and only using Optical-Grade Solvents for cleaning.
