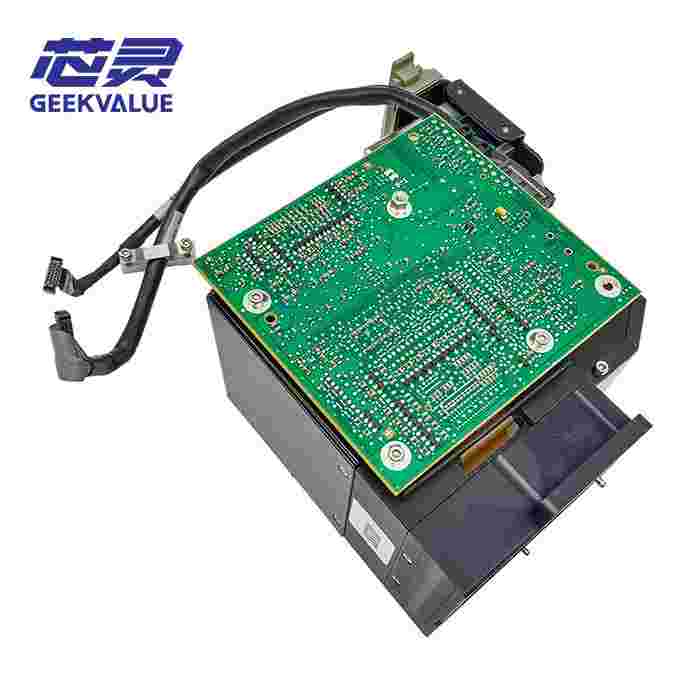

The ASM 03085394 (Type 30) is a specialized digital recognition camera optimized for the "Collect & Place" (C+P) high-speed architecture. With a dedicated 27x27mm CMOS/CCD sensor grid, this camera provides the ideal balance between Field of View (FOV) and Resolution. It is the "Visual Backbone" for heads that require rapid verification of component presence and orientation immediately after the pick-up phase.
GEEKVALUE provides the 03085394 with a focus on Bit-Depth Consistency. We ensure that the grayscale transitions of the sensor are perfectly linear, which is critical for the SIPLACE vision software to accurately distinguish between a component's "Lead" and its "Body," even when dealing with low-reflectivity matte finishes.
Technical Specifications
Feature | Technical Data |
Product Type | High-Speed Digital Imaging Camera (Type 30) |
Part Number (P/N) | 03085394 |
Sensor Dimensions | 27 x 27 mm Optimized FOV |
Interface Protocol | High-Speed Digital Interface (LVDS/FireWire depending on revision) |
Recognition Mode | Co C+P (Collect and Place) Synchronized |
Shutter Mode | Global Electronic Shutter |
Pixel Pitch | Micron-Level Precision for Small-Component Definition |
Strategic Performance Advantages
· Parallax-Free Optical Alignment: The 03085394 is engineered with a Zero-Distortion Sensor Mounting. This ensures that the light rays hitting the 27x27mm sensor stay perpendicular across the entire FOV, preventing "Perspective Warp" which can lead to incorrect centroid calculations for larger components near the image edges.
· High-Speed Frame Integration: Designed for the "C+P" duty cycle, the 03085394 features an ultra-short Reset-to-Expose Time. This allows the camera to fire in rapid succession as each nozzle of a multi-nozzle head passes over the vision station, maintaining the machine's maximum rated throughput.
· Active Noise Reduction (ANR) Circuitry: To combat the electrical noise found in the gantry’s cable tracks, the 03085394 utilizes Differential Signal Shielding. This maintains image clarity even when the gantry’s linear motors are drawing peak current, ensuring no "Ghost Pixels" interfere with component recognition.
· Ruggedized Thermal Housing: The 03085394 is built into a Vibration-Isolated Aluminum Shell. This shell acts as a heat sink for the internal imaging processor while protecting the delicate sensor alignment from the constant G-forces of the SIPLACE motion system.
The GEEKVALUE Advantage: "Precision Vision, Trusted Performance"
1. 360° Total Cost Optimization (TCO)
A camera with "Stuck Pixels" or sensor degradation leads to false rejects and high material waste. GEEKVALUE optimizes your TCO by providing 03085394 Cameras that have undergone Full-Field Sensitivity Mapping. We guarantee a clean, uniform image that reduces the "False Call" rate, keeping your production line moving and your bin of rejected components empty.
2. Trusted by 400+ Public Companies
Global leaders in high-speed LED packaging and consumer electronics trust GEEKVALUE for their Type 30 vision components. Our 03085394 cameras are the standard choice for listed companies that require "Continuous Optical Stability" for their high-volume SMT manufacturing fleets.
3. Seamless Co C+P Integration
GEEKVALUE’s 03085394 is factory-calibrated to match the Optical Timing of the SIPLACE C+P system. We ensure that the trigger response is instantaneous, allowing for a "Drop-in" replacement that maintains the sub-millisecond synchronization required for high-speed "Flight Alignment."
Frequently Asked Questions (FAQ)
Q1: What distinguishes the 03085394 (Type 30) from newer Type 34 cameras?
The Type 30 (03085394) is primarily used on legacy and mid-range SIPLACE platforms that utilize specific digital data interfaces. The Type 34 is a newer GigE-based architecture. Always verify your machine's vision control board compatibility before ordering.
Q2: Why does my machine show a "Brightness Abnormal" error with this camera?
This is often caused by the aging of the LED Lighting Unit associated with the camera, rather than the camera itself. However, if the error persists after cleaning the lens, the internal sensor of the 03085394 may be losing its sensitivity and require replacement.
Q3: Is the 03085394 sensitive to ambient factory lighting?
While the camera is shielded, extreme ambient light (like direct sunlight or high-intensity floodlights) can seep into the machine and affect the 27x27mm FOV. Ensure your machine covers are correctly closed and the internal vision filters are clean.
Q4: Does the camera come with the lens included?
The 03085394 is the digital camera body/sensor unit. The lens assembly is often a separate P/N depending on the specific magnification required for your machine's setup. GEEKVALUE can provide the matching lens if required.
