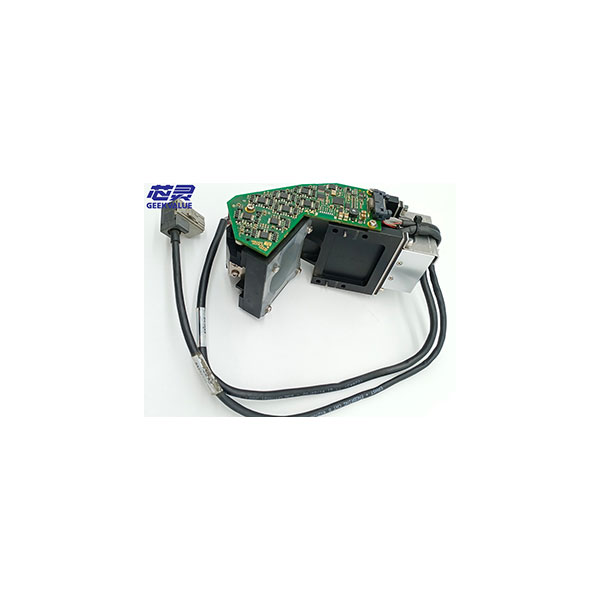

The ASM 03105195 (Type 23) is a high-bandwidth digital camera engineered for the precision recognition of micro-components. Its 6x6mm field of view (FOV) is specifically designed to provide maximum pixel density for components that are too small for standard 27x27mm cameras. By utilizing the Gigabit Ethernet (GigE) interface, this camera provides a significant upgrade in data throughput over legacy Type 23 versions, allowing the vision system to process high-resolution images in real-time as the gantry moves at speeds exceeding $2.5\text{ m/s}$.
GEEKVALUE provides the 03105195 with a focus on Signal Linearity and Low Noise. For 01005 components, the difference between a successful pick and a reject is measured in microns. Our cameras are verified to ensure that the image remains crisp and free of digital artifacts, providing the vision PC with the highest quality raw data for its alignment algorithms.
Technical Specifications
Feature | Technical Data |
Product Type | Digital GigE Vision CO Camera (Type 23) |
Part Number (P/N) | 03105195 |
Sensor FOV | 6 x 6 mm (High-Magnification Macro FOV) |
Interface Protocol | Gigabit Ethernet (GigE) / 1000Base-T |
Shutter Mode | Global Shutter for Zero-Blur Acquisition |
Application | Micro-Component Recognition (0201, 01005, Flip-Chip) |
Compatibility | SIPLACE X, SX, and TX Series High-Speed Gantries |
Strategic Performance Advantages
· Micro-Feature Extraction: The 03105195 is optimized for "High-Contrast Detail." Its sensor is tuned to detect the subtle edges of micro-passive components against the dark background of the vacuum nozzle, facilitating a level of precision that is essential for ultra-fine-pitch PCBA.
· Gigabit Ethernet Stability: Unlike older FireWire or Analog architectures, the 03105195 utilizes a Dedicated GigE Controller Interface. This ensures that the data stream is immune to the "Packet Jitter" typically caused by the heavy electrical load of the machine's linear motors, maintaining stable OEE (Overall Equipment Effectiveness).
· Dynamic Thermal Equilibrium: To prevent the sensor from drifting due to heat, the 03105195 features a Conductive Cooling Frame. This ensures that the "Black Level" of the image remains constant throughout a 24-hour shift, eliminating the need for frequent vision re-calibrations.
· Vibration-Isolated Lens Mount: GEEKVALUE’s 03105195 is engineered to withstand the extreme $4.5\text{G}+$ forces of the CP20P/C+P head. The internal sensor mount is Mechanically Hardened, ensuring the optical center remains perfectly aligned even after millions of high-speed gantry cycles.
The GEEKVALUE Advantage: "Digital Precision, Macro Detail"
1. 360° Total Cost Optimization (TCO)
On micro-component lines, "Vision Retries" are the biggest cause of lost production time. GEEKVALUE optimizes your TCO by providing 03105195 Cameras with Factory-Certified Pixel Calibration. By ensuring the camera captures the component correctly on the first attempt, we help you maintain your machine's peak CPH and reduce material waste.
2. Trusted by 400+ Public Companies
Global leaders in high-frequency 5G filter assembly and advanced SiP (System-in-Package) manufacturing trust GEEKVALUE for their Type 23 vision reliability. Our 03105195 cameras are the standard choice for listed companies that require "Micro-Level Digital Certainty" on their high-speed X-Series lines.
3. Optimized for "Type 23" Digital Logic
GEEKVALUE’s 03105195 is pre-synchronized with the SIPLACE GigE Vision Bus. We ensure that the "Trigger-to-Transmit" latency is minimal, allowing for a seamless "Plug-and-Play" replacement that restores your machine's high-accuracy recognition capabilities immediately.
Frequently Asked Questions (FAQ)
Q1: Why is the Type 23 (6x6mm) camera better for 01005s than the Type 30 (27x27mm)?
The Type 23 (03105195) offers much higher magnification. Because the 6x6mm sensor focuses on a smaller area, it can see much finer details on micro-components that would appear as just a few pixels on a larger FOV camera, significantly improving alignment accuracy.
Q2: Can I use a standard Ethernet cable for this camera?
No. GEEKVALUE recommends using only High-Flex, Double-Shielded CAT6a/7 Industrial Cables designed for SMT gantries. Standard cables will quickly fail due to the constant high-speed movement and electromagnetic interference inside the machine.
Q3: How do I handle a "Camera Not Found" error after installation?
This is usually a Network Configuration or Driver Issue. Ensure the machine's Vision PC has the correct GigE Vision drivers installed and that the camera's IP address is correctly mapped in the SIPLACE Station Description.
Q4: Is the 03105195 backward compatible with older analog machines?
No. The 03105195 is a native GigE Digital Camera. It requires a machine equipped with a GigE Vision controller and the appropriate digital bus architecture found in modern X, SX, and TX series platforms.
