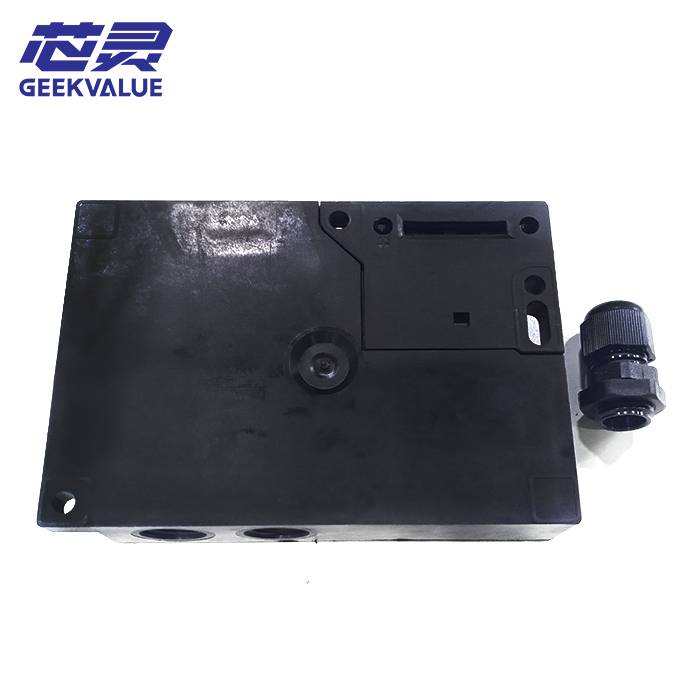

The ASM 03110691 is a high-reliability electromechanical safety interlocking device specifically engineered for the high-velocity TX machine environment. Unlike standard door latches, the 03110691 features an Active Monitoring Feedback Loop. It communicates directly with the machine’s safety PLC to confirm that the door is not just "closed," but "Electromechanically Secured." This is vital for the TX platform, where gantry speeds can reach several meters per second; the 03110691 prevents accidental entry during these high-inertia moves, protecting both the operator from injury and the machine from catastrophic damage caused by an unexpected gantry impact with a human limb.
GEEKVALUE provides the 03110691 with a focus on Switching Reliability and Wear Resistance. We ensure that the internal solenoid and contact points are designed for the high-cycle frequency typical of a busy SMT line where the doors may be opened dozens of times a day for feeder replenishment or maintenance.
Technical Specifications
Feature | Technical Data |
Product Type | Electromechanical Safety Interlock Lock |
Part Number (P/N) | 03110691 |
Series Compatibility | SIPLACE TX Series (TX1, TX2, TX2i) |
Safety Standard | Compliant with PL e / Cat 4 (System Integrated) |
Locking Force | High-Tensile Retention (Anti-Vibration) |
Feedback Logic | Dual-Channel NC/NO Signal Contacts |
Housing Material | Impact-Resistant, Flame-Retardant Industrial Polymer |
Strategic Performance Advantages
· Dual-Channel Redundancy Logic: The 03110691 is built with Redundant Circuitry. If one electrical contact fails, the second channel provides a fail-safe signal to the machine. This ensures that the TX gantry will never move if there is any doubt about the door’s status, meeting the highest global safety ratings for automated manufacturing.
· Tamper-Proof Mechanical Design: GEEKVALUE’s 03110691 utilizes a High-Security Actuator Profile. This design is virtually impossible to "bypass" or "cheat" with common tools, ensuring that your facility remains in strict compliance with OSHA and CE safety regulations.
· Vibration-Compensating Capture: In the high-acceleration world of the TX series, machine covers can experience micro-oscillations. The 03110691 features Internal Mechanical Dampening within the lock, ensuring that these vibrations do not cause "Nuisance Trips" or false safety alarms that halt production.
· Integrated Status LED Feedback: The module is designed to provide clear, visual confirmation of its status. This allows operators to quickly identify if a machine-stop is due to a door alignment issue, reducing the "Diagnostic Gap" and helping the line return to production faster.
The GEEKVALUE Advantage: "Securing the Future of High-Speed SMT"
1. 360° Total Cost Optimization (TCO)
A faulty door lock doesn't just stop a machine; it creates a "Compliance Bottleneck." GEEKVALUE optimizes your TCO by providing 03110691 Units with Precision Actuation Tests. By ensuring the lock engages cleanly every time, we help you avoid the hidden costs of intermittent machine restarts and the safety risks of a failing interlock.
2. Trusted by 400+ Public Companies
Global leaders in high-mix automotive electronics and high-volume smartphone assembly trust GEEKVALUE for their safety-critical sub-systems. Our 03110691 safety locks are the standard choice for listed companies that require "Certified Operational Safety" across their global SIPLACE TX fleets.
3. Optimized for "TX-Series" Rapid-Response Safety
GEEKVALUE’s 03110691 is factory-verified to integrate seamlessly with the SIPLACE TX safety bus architecture. We ensure the electrical "Stop Command" is delivered within the micro-second tolerances required to halt the TX gantry before any hazard can occur.
Frequently Asked Questions (FAQ)
Q1: How do I know if my 03110691 door lock needs replacement?
Warning signs include the machine reporting a "Door Open" error even when it is visibly closed, the lock making a "chattering" sound during engagement, or the machine refusing to clear its "Emergency Stop" status. If the physical door handle feels loose or "gritty" when latching, the 03110691 may be mechanically worn.
Q2: Is the 03110691 compatible with the older X-Series?
The 03110691 is specifically designed for the TX Series door geometry and electrical harness. While it may look similar to older locks, the mounting points and signal pin-out are optimized for the TX platform. Always check your machine's safety documentation before ordering.
Q3: Can the electrical contacts inside be cleaned?
No. The 03110691 is a Sealed Safety Unit. Any attempt to open the housing for cleaning or repair will compromise its safety certification and may lead to a catastrophic failure. GEEKVALUE recommends full unit replacement for any safety-related component.
Q4: Does this part include the "Actuator Key"?
Typically, the 03110691 refers to the locking body. If your door-mounted actuator key is also damaged or bent, GEEKVALUE recommends ordering both together to ensure perfect alignment and zero-friction locking.
Q5: How is this critical safety part packaged?
Every 03110691 is Anti-Static (ESD) Sealed and shipped in a high-impact, rigid box with custom-cut protective foam. We ensure the mechanical locking tongue and the electrical connectors are protected from any transit damage, arriving ready to safeguard your SMT floor.
