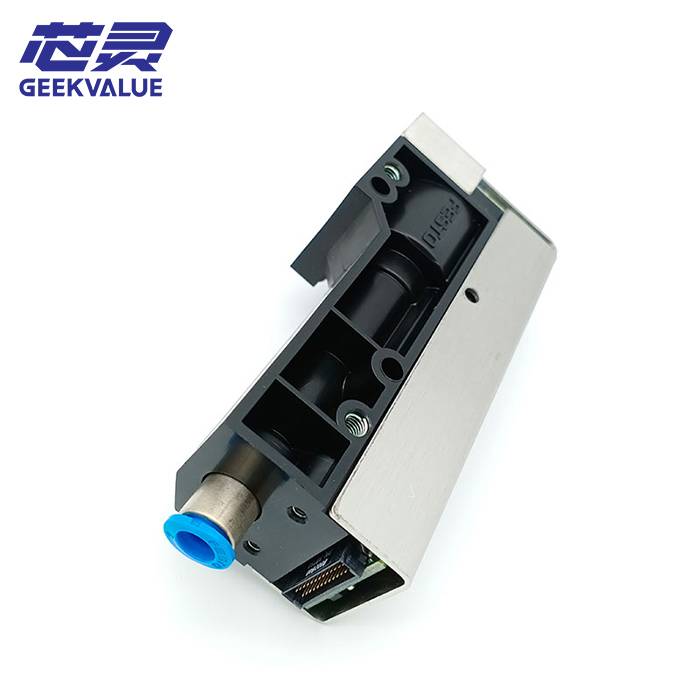

The ASM 03058802 is a high-efficiency vacuum generation unit based on precision Venturi Technology. Specifically engineered for the SIPLACE TwinHead (TH), this module is the engine behind the head’s massive lifting capacity. Unlike multi-nozzle heads that share a vacuum line, the 03058802 is optimized to provide a High-Volume Vacuum Flow, ensuring that even components with slightly porous or uneven surfaces (like large plastic connectors) are held with "Absolute Mechanical Rigidity" during $2\text{G}$ gantry accelerations.
GEEKVALUE provides the 03058802 with a focus on Pneumatic Conversion Efficiency. We recognize that air consumption $(SCFM)$ is a major factory cost. Our generators feature Micro-Honed Internal Nozzles, which maximize vacuum depth while minimizing the amount of compressed air required, optimizing your line's energy footprint.
Technical Specifications
Feature | Technical Data |
Product Type | High-Flow Venturi Vacuum Generator |
Part Number (P/N) | 03058802 |
Compatible Head | SIPLACE TwinHead (TH) |
Machine Series | SIPLACE X, SX, and D-Series |
Max Vacuum Pressure | Up to $-0.92\text{ bar}$ |
Material | Anodized High-Strength Aluminum |
Response Logic | Instantaneous On/Off Vacuum Switching |
Strategic Performance Advantages
· Dual-Stage Venturi Architecture: The 03058802 utilizes a Dual-Chamber Design that significantly increases the "Suction Volume." This is critical when picking large BGAs; the generator can evacuate the air inside a large nozzle cup in milliseconds, leading to a faster and more secure component "Handshake."
· Integrated Silencing Technology: High-speed vacuum generation typically produces significant acoustic noise. This generator is equipped with a High-Density Porous Silencer, which reduces decibel levels at the head assembly, contributing to a better working environment and preventing sonic vibrations from affecting nearby precision sensors.
· Resistant to "Compressed Air Contamination": Factory air often contains trace amounts of oil or moisture. The 03058802 is treated with a Non-Stick Internal Coating, which prevents these contaminants from adhering to the Venturi throat, maintaining a consistent vacuum $(\Delta P)$ over months of continuous operation.
· Rapid Blow-Off Synchronization: To ensure clean component release, the 03058802 features an Optimized Exhaust Path. This allows the "Vacuum-to-Pressure" transition to happen without turbulence, ensuring that large, heavy components are placed exactly on the solder paste without being "blown" out of position.
The GEEKVALUE Advantage: "Power for the Heavy Lifters"
1. 360° Total Cost Optimization (TCO)
A weak vacuum generator forces the machine to slow down its placement speed to avoid component drops. GEEKVALUE optimizes your TCO by providing 03058802 Generators with Certified Suction Curve Testing. We ensure your TwinHead maintains its peak torque, allowing you to run your heaviest components at maximum rated machine speeds.
2. Trusted by 400+ Public Companies
Global leaders in automotive infotainment and industrial power inverter manufacturing trust GEEKVALUE for their heavy-duty head components. Our 03058802 generators are the standard choice for listed companies that require "Maximum Holding Power" for large-form-factor PCBA.
3. Optimized for "High-Force" Placement
GEEKVALUE’s 03058802 is fully compatible with the Force Sensor logic of the TwinHead. It provides a stable pneumatic baseline, allowing the head's electronics to accurately measure placement force $(N)$ without interference from fluctuating vacuum levels.
Frequently Asked Questions (FAQ)
Q1: How do I diagnose a failing 03058802 vacuum generator?
The most common signs are "Vacuum Low" alarms specifically on the TwinHead, components "sliding" during high-speed movement, or a noticeable change in the "hissing" sound during the pick-up cycle.
Q2: Can the internal silencer be replaced?
Yes. If the generator becomes significantly louder, the Integrated Silencer may be clogged with oil/dust. While cleaning is possible, GEEKVALUE recommends replacing the silencer insert to maintain optimal exhaust flow and vacuum depth.
Q3: Does this generator require a specific air pressure?
For optimal performance of the 03058802, a stable supply of $5.0 \sim 5.5\text{ bar}$ of clean, dry compressed air is required. Pressure drops in the factory line will directly reduce the vacuum efficiency of this unit.
Q4: Is the 03058802 compatible with the TwinHead on an X4i machine?
Yes. It is the standard vacuum generation component for the TwinHead across the X, SX, and D-series gantry architectures.
Q5: What is the packaging standard for this pneumatic module?
Every 03058802 is shipped in a Sealed, Dust-Proof ESD Bag and protected by a dual-layer shock-absorbent carton. This ensures that the precision-honed internal Venturi surfaces and the mounting threads are factory-perfect upon arrival.
