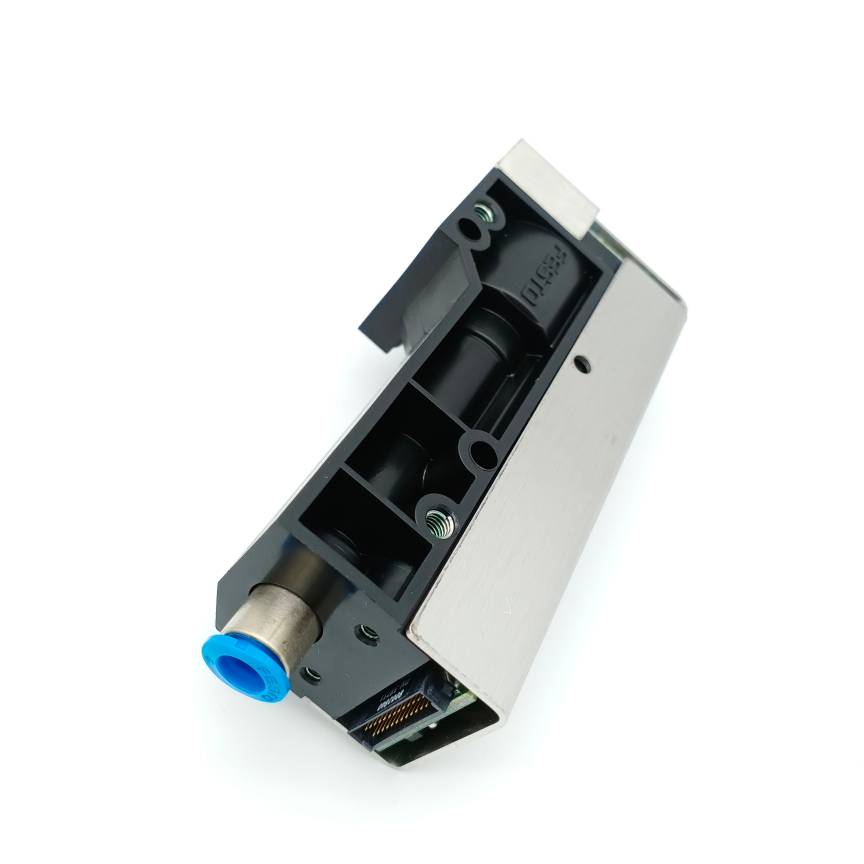

The ASM 03058802 is a high-performance digital manifold valve designed specifically for the SIPLACE Twin-Head architecture. While CP20 heads focus on microscopic speed, the Twin-Head focuses on "Power and Versatility." The 03058802 manages the significant airflow required to securely hold large ICs, connectors, and heavy shielding cans. Its digital switching logic ensures that the vacuum "Grip" is instantaneous and the "Blow-off" is clean, preventing the "Vacuum Drag" that can misalign large components during the placement stroke.
GEEKVALUE provides the 03058802 with a focus on Pneumatic Isolation. We ensure that the internal valve seats are precision-lapped to prevent cross-leakage between the two heads, allowing one head to perform a delicate placement while the other executes a high-pressure pick-up without any drop in signal integrity.
Technical Specifications
Feature | Technical Data |
Product Type | Integrated Digital Twin-Head Valve Module |
Part Number (P/N) | 03058802 |
Head Compatibility | SIPLACE Twin-Head (Dual-Head) Systems |
Logic Interface | High-Speed Digital Bus Control |
Airflow Capacity | High-Flow Optimized for Large Components |
Operating Pressure | Precision Regulated for Heavy-Load Retention |
Cycle Life | Industrial-Grade Endurance for Continuous Operation |
Strategic Performance Advantages
· Dual-Channel Independent Logic: The 03058802 features Independent Solenoid Actuators for each head. This allows the Twin-Head to operate in "Asynchronous Mode," where each nozzle can follow a completely different vacuum profile, which is essential for boards requiring a mix of small passives and large connectors.
· High-Volume Vacuum Recovery: Engineered for larger nozzles, the 03058802 is designed with Internal High-Flow Channels. This ensures that the vacuum builds up to its target level in milliseconds, even when using large-diameter suction cups for heavy automotive or industrial components.
· EMI-Suppressed Digital Switching: GEEKVALUE’s 03058802 utilizes Optical Isolation in its signal path. This prevents the electrical spikes from the valve’s solenoids from leaking back into the machine’s sensitive head-bus, protecting your Twin-Head's internal sensors and vision electronics from data corruption.
· Thermal-Compensated Valve Seats: To maintain accuracy during long-shift operations, the 03058802 uses Low-Expansion Internal Seals. As the Twin-Head generates heat during heavy-duty movement, these seals maintain their geometry, ensuring that the "Vacuum-Leaking Limit" remains within factory tolerances
The GEEKVALUE Advantage: "Heavy-Duty Grip, Digital Precision"
1. 360° Total Cost Optimization (TCO)
Large components are often the most expensive parts on a PCB. A single dropped BGA or connector due to a lagging valve can result in significant financial loss. GEEKVALUE optimizes your TCO by providing 03058802 Valves with Certified Holding Torque. We guarantee that the vacuum force remains rock-steady during the gantry's highest acceleration phases.
2. Trusted by 400+ Public Companies
Global leaders in automotive ECU (Engine Control Unit) and power supply manufacturing trust GEEKVALUE for their Twin-Head reliability. Our 03058802 digital valves are the standard choice for listed companies that require "Zero-Defect Power-SMT" for their high-reliability industrial production lines.
3. Optimized for Twin-Head "Synchronous" Calibration
GEEKVALUE’s 03058802 is factory-tested to match the Dual-Head Timing Specs of the SIPLACE X and SX series. We ensure that both channels of the valve respond with identical latency, facilitating perfect "Parallel Picking" and maintaining the balanced weight distribution required for high-accuracy placement.
Frequently Asked Questions (FAQ)
Q1: How do I know if my 03058802 valve needs replacement on a Twin-Head?
The most common sign is a "Vacuum Low" error that only appears on one of the two heads, or a "Sluggish Pick-up" where the machine pauses slightly to wait for vacuum levels to stabilize. If the valve makes an unusual "chattering" sound during switching, the internal solenoid is likely failing.
Q2: Can I use a CP20 head valve as a substitute for the 03058802?
NO. The 03058802 is specifically designed for the Twin-Head’s high-flow requirements. CP20 valves have much smaller internal orifices and will not be able to provide the volume of air needed to securely hold large components handled by a Twin-Head.
Q3: Does this valve handle the "Blow-off" (Placement) pulse as well?
Yes. The 03058802 manages both the vacuum retention and the positive-pressure "Blow-off." It is calibrated to ensure that even large components are released cleanly without "stuck-nozzle" errors.
Q4: Is any special maintenance required for this manifold?
Since the Twin-Head often handles larger components that may have more dust or packaging debris, GEEKVALUE recommends a Bi-Monthly Air-Port Inspection. Ensure the vacuum filters leading to the 03058802 are clean to prevent debris from fouling the internal valve seats.
