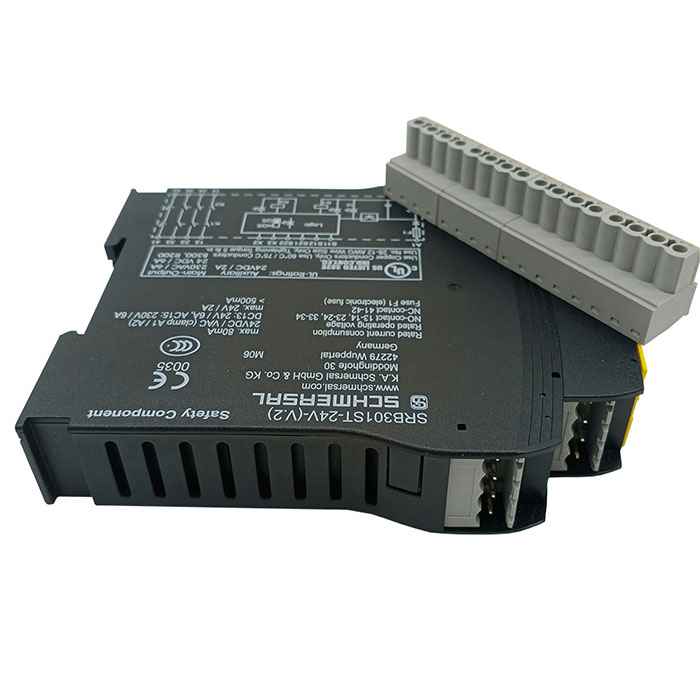

The ASM 03056745, manufactured in partnership with safety specialists Schmersal, is the foundational safety layer of the SIPLACE gantry system. This module is designed for "Fail-Safe Operation." It monitors the dual-channel inputs from the machine’s emergency stop buttons and transparent guard doors. If even a millisecond-level discrepancy is detected between the two channels (indicating a potential wire break or switch failure), the 03056745 triggers an Immediate Category 0 Stop, cutting power to all high-speed motors to protect both the operator and the internal machine components.
GEEKVALUE provides the 03056745 with a focus on Diagnostic Transparency. In high-speed SMT lines, a "Safety Trip" can be difficult to troubleshoot. Our modules feature Integrated LED Status Indicators, allowing maintenance teams to instantly distinguish between a "Door Open" state, a "Cross-Wire Short," or an internal relay fault.
Technical Specifications
Feature | Technical Data |
Product Type | Redundant Safety Monitoring Relay |
Part Number (P/N) | 03056745 |
Safety Standards | SIL 3, PLe, Category 4 Compliant |
Monitoring Inputs | E-Stop Buttons, Guard Door Interlocks |
Control Logic | Dual-Channel Microprocessor Verification |
Response Time | $< 20\text{ms}$ (Signal to Power Cut) |
Housing | DIN-Rail Mountable / Industrial Enclosure |
Strategic Performance Advantages
· Synchronous Cross-Monitoring: The 03056745 continuously compares the electrical state of both safety loops. This "Anti-Defeat" Logic ensures that the machine cannot be started if one of the safety switches has been bypassed or welded shut, maintaining 100% compliance with international factory safety mandates.
· Vibration-Hardened Relay Contacts: Unlike standard commercial relays, the internal contacts of the 03056745 are designed for high-vibration SMT environments. They utilize Force-Guided Contacts, which guarantee that if one contact welds, the other will not close, preventing the machine from entering an unsafe "Ghost Running" state.
· Intelligent Reset Logic: To prevent accidental restarts, the 03056745 supports Monitored Manual Reset. This requires a deliberate, verified signal from the machine's UI after a safety breach is resolved, ensuring that no gantry movement begins while an operator is still inside the machine envelope.
· Low-Power "Green" Monitoring: GEEKVALUE’s 03056745 is optimized for low energy consumption during standby. This reduces heat buildup within the machine's primary electrical cabinet, extending the lifespan of neighboring sensitive components like the main CPU and servo drives.
The GEEKVALUE Advantage: "Uptime Through Safety"
1. 360° Total Cost Optimization (TCO)
A faulty safety module that "trips" without cause is a major drain on OEE (Overall Equipment Effectiveness). GEEKVALUE optimizes your TCO by providing 03056745 Modules with Certified Signal Stability. By eliminating "False Safety Trips" caused by aged internal components, we keep your gantry running at maximum speed without interruptions.
2. Trusted by 400+ Public Companies
Global leaders in high-reliability medical electronics and aerospace PCBA trust GEEKVALUE for their machine safety infrastructure. Our 03056745 modules are the standard choice for listed companies that must adhere to strict OSHA / CE safety audits and zero-accident workplace policies.
3. Optimized for "X/SX" Electrical Integration
GEEKVALUE’s 03056745 is factory-calibrated for the SIPLACE electrical backplane. We ensure that the DIN-rail footprint and terminal blocks match the OEM specifications perfectly, allowing for a "Slide-and-Snap" replacement that requires no rewiring or panel modification.
Frequently Asked Questions (FAQ)
Q1: What is the primary sign that the 03056745 needs replacement?
The most common indicator is a "Safety Circuit Error" that cannot be cleared despite all doors being closed and E-stops released. If the module's "Internal Fault" LED is illuminated or if the relay "clicks" but fails to pass power to the motor contactors, it must be replaced.
Q2: Can this module be repaired?
Because this is a Life-Safety Component, GEEKVALUE and Schmersal strictly advise against internal repairs. Any modification to the internal circuitry voids the safety certification and puts the machine operator at risk. Always replace with a certified unit.
Q3: How does moisture affect the 03056745?
While the housing is robust, high humidity or liquid ingress can cause corrosion on the internal logic board, leading to intermittent safety trips. Ensure your electrical cabinet's cooling system is operating correctly and free of condensation.
Q4: Is the 03056745 compatible with older D-Series or S-Series machines?
Yes, the 03056745 is a versatile safety module used across several generations of SIPLACE hardware. However, always verify the specific wiring diagram of your machine, as the input/output mapping can vary.
