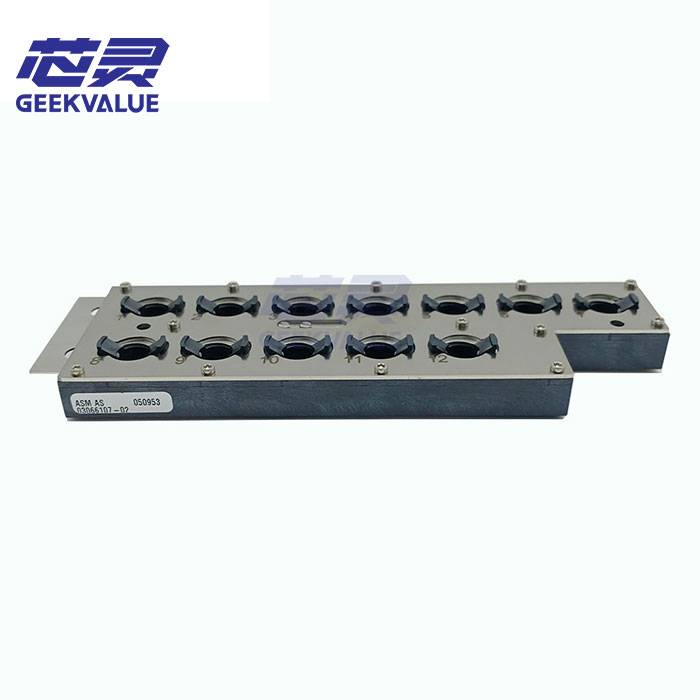

The ASM 03066107 (Type 20xx) is a specialized high-density storage and exchange interface for SIPLACE nozzles. Positioned within the machine’s workspace, it serves as the physical repository for the various nozzle types required for complex PCB assemblies. The 20xx series is engineered for "Zero-G Friction Engagement," allowing the placement head to pick and deposit nozzles with minimal mechanical resistance. This module is essential for maintaining the SIPLACE Smart Nozzle Management system, where every nozzle change is tracked by the machine’s software to prevent cycle-time loss.
GEEKVALUE provides the 03066107 with a focus on Interface Surface Integrity. We ensure that each nozzle pocket is precision-machined to prevent "Nozzle Jamming" or "Off-Center Pickup," which are the leading causes of ATC (Automatic Tool Change) failures during mid-production.
Technical Specifications
Feature | Technical Data |
Product Type | Nozzle Magazine / Automatic Exchanger (ATC) |
Part Number (P/N) | 03066107 |
Series Compatibility | SIPLACE 20xx Standard (X, SX, TX Platforms) |
Material | Anti-Static (ESD) Grade Specialized Alloy |
Storage Capacity | Optimized for Multi-Type Nozzle Arrays |
Locking Mechanism | Passive Precision Retention Logic |
Surface Coating | Low-Friction Hard-Anodized Finish |
Strategic Performance Advantages
· Total ESD Protection Path: The 03066107 is constructed from Highly Conductive Materials. This ensures that any static charge accumulated on the nozzles is safely dissipated into the machine's ground plane the moment they are placed back into the magazine, protecting sensitive components like 01005s from electrostatic discharge.
· High-Repeatability Pocket Geometry: GEEKVALUE’s 03066107 features Chamfered Pocket Entry-ways. This design allows for a slight self-correction during the "Placement Stroke," ensuring that even if the head has a micro-micron gantry deviation, the nozzle will still seat perfectly in its assigned slot without damaging the shank.
· Thermal Linear Stability: To prevent the magazine from "warping" or expanding during long production shifts, the 03066107 is made from a Low-Expansion Composite Alloy. This maintains the "Absolute Pitch" between nozzle slots, ensuring that the machine's $X/Y$ coordinates for the magazine never need re-teaching due to factory temperature changes.
· Non-Magnetic Retention Logic: Unlike low-end alternatives, the 20xx series uses Precision Tension Springs or Gravity-Balanced Slots rather than magnets. This prevents the nozzle tips from becoming magnetized, which could otherwise cause micro-passive components (like inductors) to "stick" to the nozzle during placement.
The GEEKVALUE Advantage: "Seamless Exchange, Maximum Uptime"
1. 360° Total Cost Optimization (TCO)
A damaged nozzle magazine leads to "ATC Errors," forcing the machine to stop and requiring manual operator intervention. GEEKVALUE optimizes your TCO by providing 03066107 Magazines with Certified Slot Alignment. By ensuring $100\%$ exchange reliability, we help you achieve the "Lights-Out" manufacturing goals of modern SMT facilities.
2. Trusted by 400+ Public Companies
Global leaders in high-mix automotive electronics and aerospace PCBA trust GEEKVALUE for their tool-change reliability. Our 03066107 nozzle magazines are the standard choice for listed companies that require "Zero-Friction Tooling Management" for their premier SIPLACE assets.
3. Optimized for "Smart Nozzle" Data Link
GEEKVALUE’s 03066107 is factory-checked to ensure it doesn't interfere with the RFID or Visual Identification of the nozzles. We ensure the magazine's profile allows the machine's vision system to clearly see the nozzle tips for "Pre-Pick Verification," ensuring the right tool is used for the right component every time.
Frequently Asked Questions (FAQ)
Q1: How do I know if my 03066107 magazine needs replacement?
Common signs include the machine frequently reporting "Nozzle Pick Failure" at the magazine, visible wear or scratches inside the nozzle pockets, or the magazine appearing "loose" on its mounting rail. If you see metal shavings near the magazine, it is a sign that the head and magazine are misaligned and causing mechanical wear.
Q2: Does the 03066107 require any maintenance?
Yes. GEEKVALUE recommends a Weekly Cleaning with Isopropyl Alcohol (IPA) to remove any dust or solder balls that may have fallen into the pockets. A single solder ball in a pocket can cause the nozzle to sit tilted, leading to a "Head Crash" during the next exchange.
Q3: Can I mix different nozzle types in the same 03066107 magazine?
Yes, the 20xx series magazine is designed to hold a variety of nozzle sizes. However, you must ensure that the "Nozzle Map" in your SIPLACE software matches the physical location of the nozzles in the magazine.
Q4: Is the 03066107 compatible with the newer TX series?
The 03066107 is a versatile part used across multiple SIPLACE generations. However, for the ultra-compact TX series, you should verify if your machine uses the standard or the "Space-Saving" magazine variant.
Q5: How is this precision storage module packaged?
Every 03066107 is VCI-wrapped (Vapor Corrosion Inhibitor) and shipped in a custom-engineered, shock-absorbent rigid box. We ensure that the mounting interfaces and the individual nozzle pockets are protected from any impact that could compromise their critical alignment during transit.
