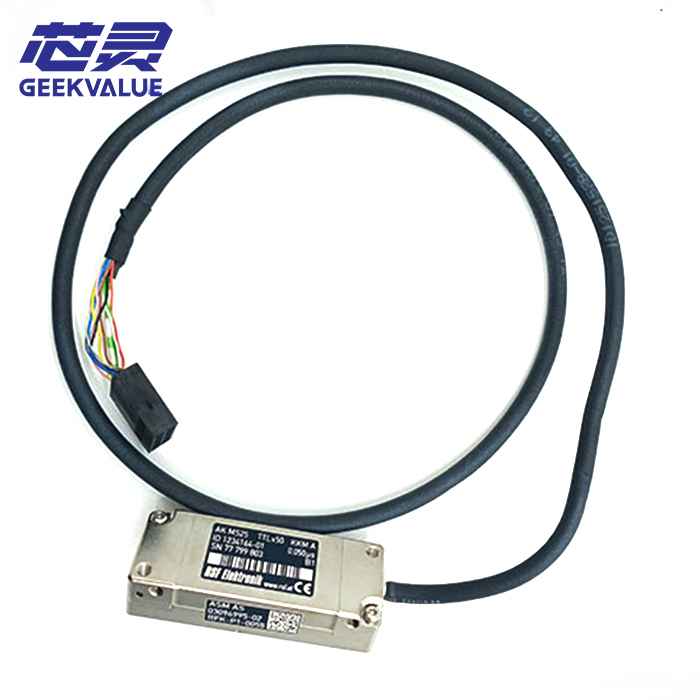

The ASM 03094995 is a high-precision digital sensor interface engineered for the ASMPT placement ecosystem. Positioned within the machine's gantry or feeder interface area, this reading head acts as the "eyes" of the SIPLACE Setup Validation system. It is responsible for the rapid scanning and synchronization of intelligent feeders and component carrier data. Without the 03094995, the machine cannot perform real-time verification of component counts, pitch settings, or part-number accuracy.
GEEKVALUE provides the 03094995 with a focus on Signal Transmission Integrity. In an SMT environment saturated with electromagnetic interference (EMI) from high-speed motors and vacuum pumps, our reading heads are shielded with Industrial-Grade Anti-Interference Housing, ensuring zero packet loss during data exchange.
Technical Specifications
Feature | Technical Data |
Product Type | Intelligent Feeder / Component Identification Sensor |
Part Number (P/N) | 03094995 |
System Compatibility | SIPLACE X, SX, TX, and D-Series Platforms |
Interface Logic | High-Speed Digital Bus Protocol |
Response Time | Real-time Synchronization (< 10ms) |
Scanning Capability | Electronic ID Recognition & Setup Validation |
Operational Rating | 24/7 Industrial Production Cycle |
Strategic Performance Advantages
· Active Error-Proofing (Poka-Yoke): The 03094995 reading head prevents the #1 cause of SMT rework: the wrong component on the wrong pad. It performs a Dual-Check Validation, comparing the physical feeder ID with the machine's software placement program before the first component is picked.
· Enhanced Optical/Magnetic Sensitivity: Engineered for the modern smart factory, the 03094995 features a Wide-Angle Reading Field. This allows for consistent data retrieval even if the feeder is slightly misaligned, reducing "Read Failed" errors that cause unnecessary machine alarms.
· Vibration-Hardened Internal Circuitry: Mounted on the moving gantry or near high-vibration zones, the 03094995 utilized Potting Compound Technology to secure internal chips. This prevents micro-cracks in solder joints, ensuring the reading head remains operational for years under constant $G\text{-force}$ stress.
· Gold-Plated Contact Interface: To ensure a low-resistance connection with the machine's backplane, the connector pins are Gold-Plated $(>3\mu\text{m})$. This prevents oxidation and ensures stable voltage levels for digital signal processing, even in humid production environments.
The GEEKVALUE Advantage: "Data Reliability at the Source"
1. 360° Total Cost Optimization (TCO)
A malfunctioning reading head can lead to entire line shutdowns. GEEKVALUE optimizes your TCO by providing 03094995 Reading Heads with Pre-Calibrated Signal Thresholds. By ensuring the sensor is "factory-tuned," we eliminate the time-consuming manual calibration steps often required with generic replacement parts.
2. Trusted by 400+ Public Companies
Leading automotive electronics manufacturers and global EMS providers trust GEEKVALUE for their mission-critical sensor replacements. Our 03094995 units are the standard choice for listed companies that require "Absolute Traceability" throughout their manufacturing execution systems (MES).
3. Optimized for "Smart-Setup" Changeovers
GEEKVALUE’s 03094995 is fully optimized for SIPLACE Smart-Setup logic. It supports "Hot-Swapping" of feeders, allowing your team to prep for the next product run while the current one is still finishing, maximizing your machine utilization rates.
Frequently Asked Questions (FAQ)
Q1: Is the 03094995 reading head compatible with both X and TX series?
Yes. This P/N is designed to work across the unified ASMPT sensor bus architecture, covering the X, SX, and TX platform generations.
Q2: What are the signs that a reading head needs replacement?
Common indicators include intermittent "Feeder Not Found" errors, failure to recognize specific feeder lanes, or setup validation alarms even when the feeder is properly locked in.
Q3: How does GEEKVALUE test the 03094995?
Each unit undergoes a Full-Loop Communication Test. We simulate a high-speed production run and verify that the sensor correctly identifies 1,000+ feeder ID cycles without a single data-parity error.
Q4: Does the reading head require periodic cleaning?
Yes. Since it relies on digital contact/scanning, GEEKVALUE recommends a weekly wipe of the interface pins with an ESD-safe contact cleaner to remove any airborne flux residue or dust.
