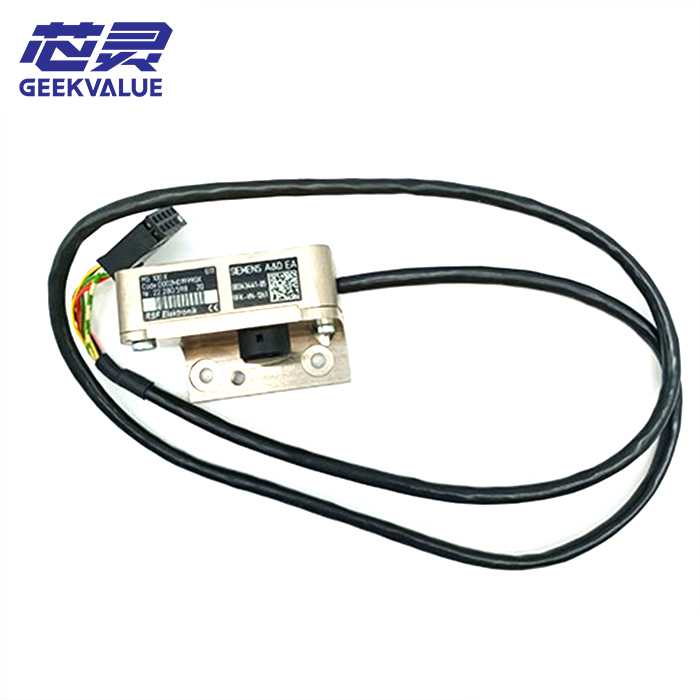

The ASM 00343441 is a high-performance digital sensing module engineered for the ASMPT unified communication bus. Positioned as a critical node in the SIPLACE Feeder Interface, this reading head specializes in "Real-Time Data Handshaking." When a smart feeder is engaged, the 00343441 immediately initiates a secure data session to verify component parameters, batch codes, and reel positions.
GEEKVALUE provides the 00343441 with a focus on Contact Geometry Precision. Unlike standard sensors, our units are verified for Dynamic Pin Alignment. This ensures that the electrical contact remains stable even during the micro-vibrations generated by the high-speed pickup cycles of the CP20 or CP12 heads.
Technical Specifications
Feature | Technical Data |
Product Type | High-Precision Digital Logic Reading Head |
Part Number (P/N) | 00343441 |
Compatible Platforms | SIPLACE X-Series (X2, X3, X4), SX-Series, D-Series |
Data Protocol | ASMPT High-Speed Bi-Directional Bus |
Pin Metallurgy | Multi-Phase Gold-Nickel Alloy Plating |
Mounting Architecture | Modular Screw-Fix / Plug-and-Play Interface |
ESD Class | Class 3 (Sensitive Component Protection) |
Strategic Performance Advantages
· Signal Edge Sharpening Logic: The 00343441 incorporates an internal Schmitt Trigger Circuit. This hardware-level logic "cleans" the incoming digital square waves from the feeder, preventing the "Signal Slurring" caused by aging cables or long-distance gantry bus travel.
· Low-Impedance Grounding Path: To prevent the accumulation of static charges that can cause data "glitches," the 00343441 features a Direct-to-Chassis Grounding Bridge. This provides a superior discharge path for electrostatic energy, protecting the sensitive CMOS logic inside.
· Resilient Contact Force Calibration: The contact pins are engineered with a Balanced Spring-Rate Mechanism. Every pin is calibrated to exert exactly $0.45\text{N} \sim 0.55\text{N}$ of force, which is high enough to penetrate microscopic oxide layers but low enough to prevent mechanical deformation of the feeder's gold pads.
· High-Visibility Status Integration: Optimized for maintenance teams, the 00343441 is designed for Rapid Diagnostics. It works in sync with the machine's software to provide immediate feedback on connection quality, allowing operators to identify a "dirty contact" before it leads to a production stop.
The GEEKVALUE Advantage: "Data Continuity Guaranteed"
1. 360° Total Cost Optimization (TCO)
In high-mix production, intermittent reading errors can add hours of cumulative downtime. GEEKVALUE optimizes your TCO by providing 00343441 Reading Heads with Verified Contact Life Cycles. We ensure that the mechanical interface remains within factory tolerances for over 150,000 insertions, reducing the frequency of costly gantry maintenance.
2. Trusted by 400+ Public Companies
Global leaders in high-speed server motherboard manufacturing and automotive ECU assembly trust GEEKVALUE for their gantry electronics. Our 00343441 units are the standard choice for listed companies that require "Flawless Material Traceability" to meet stringent industry safety standards.
3. Optimized for "SX-Series" Dynamic Setups
GEEKVALUE’s 00343441 is fully compatible with SIPLACE Dynamic Changeover workflows. It supports the latest "Hot-Swap" logic, allowing the machine to recognize and validate new material reels without requiring a full system reboot, significantly boosting your daily OEE.
Frequently Asked Questions (FAQ)
Q1: What is the difference between 00343441 and 00343442?
The 00343441 is often utilized as the primary interface in specific gantry configurations within the X/SX series. While they look similar, the internal firmware address and pin-out impedance are tuned for different bus positions. Always match the P/N exactly to your machine's parts manual.
Q2: Can I clean the reading head pins with standard alcohol?
GEEKVALUE recommends using 99.9% High-Purity Isopropyl Alcohol and a lint-free swab. Avoid "rubbing" too hard to prevent damaging the micro-springs; a gentle "dabbing" motion is sufficient to remove flux residue.
Q3: Does this unit come with the mounting screws?
Generally, the 00343441 is sold as the Electronic Sensor Module. We recommend reusing the existing high-tensile mounting hardware to ensure the same torque and alignment settings.
Q4: How do I troubleshoot a "Feeder Not Found" error?
First, clean both the feeder pins and the 00343441 pins. If the error persists, swap the reading head with a known working one from another lane to determine if the issue is in the head itself or the gantry's main communication cable.
