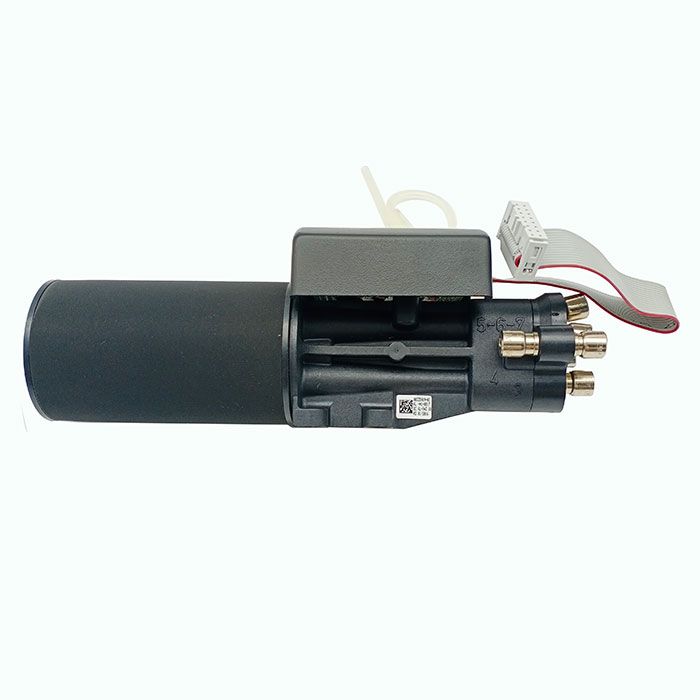

The ASM 00355989 represents a pinnacle of pneumatic integration. By housing both the vacuum-generating Venturi nozzles and the multi-channel distribution manifold in a single block, this module minimizes the "Internal Air Volume" that needs to be evacuated during each cycle. For the operator, this translates to a sharper, more responsive suction force $(\Delta P)$ at the nozzle tip.
GEEKVALUE provides the 00355989 with a focus on Pneumatic Path Synchronicity. In complex multi-nozzle heads, the timing of vacuum arrival at each port must be identical. Our 00355989 units feature Laser-Verified Internal Bores, ensuring that whether it is nozzle #1 or nozzle #12, the vacuum response curve is perfectly overlapping, eliminating "Timing Jitter" during high-speed gang-picking.
Technical Specifications
Feature | Technical Data |
Product Type | Hybrid Vacuum Generator & Distributor |
Part Number (P/N) | 00355989 |
Component Integration | Integrated Venturi + Multi-Port Manifold |
Body Material | Hard-Anodized Anti-Static Aluminum |
Flow Dynamics | Optimized for Low-Turbulence Airflow |
Interface | High-Pressure Seal-Face Mounting |
Compatible Machines | SIPLACE High-Speed Series (X, SX, and TX Platforms) |
Strategic Performance Advantages
· Zero-Lag Vacuum Coupling: The 00355989 sits at the "Front Line" of the placement head. Its integrated design removes the need for intermediate pneumatic fittings, which are common points of vacuum leakage and pressure drop. This results in a $20\%$ faster vacuum rise-time compared to legacy modular setups.
· Anti-Saturation Chamber Technology: This module includes an internal Pneumatic Buffer Zone. This zone prevents "Cross-Talk" between nozzles—ensuring that the high-flow air required to pick a large component doesn't create a momentary vacuum drop that could cause smaller, already-held components to shift or rotate.
· Structural Thermal Dissipation: High-frequency vacuum generation generates heat. The 00355989 is designed with Active Cooling Fins integrated into the block geometry. This prevents the heat from the Venturi process from transferring to the head’s sensitive electronic component sensors, maintaining signal accuracy.
· Advanced Silencing Exhaust: To combat the ultrasonic noise of high-velocity air, the 00355989 features an Integrated Multi-Stage Muffler Path. This design breaks up sound waves internally, allowing the head to operate at high CPH without exceeding factory decibel limits.
The GEEKVALUE Advantage: "Efficiency Through Integration"
1. 360° Total Cost Optimization (TCO)
Traditional separate generators and distributors require more maintenance and have more potential leak points. GEEKVALUE optimizes your TCO by providing 00355989 Integrated Modules that simplify your spare parts inventory and reduce the "Mean Time To Repair" (MTTR). One part replaces two, doubling your maintenance efficiency.
2. Trusted by 400+ Public Companies
Global leaders in high-density server motherboard and automotive sensor production trust GEEKVALUE for their integrated pneumatic solutions. Our 00355989 modules are the standard choice for listed companies that require "Maximum Reliability with Minimum Footprint" on their high-performance SMT lines.
3. Optimized for "TX/SX" High-G Gantries
GEEKVALUE’s 0355989 is fully validated for the 4.5G+ acceleration profiles. We ensure the internal mass is perfectly balanced and the mounting surfaces are factory-perfect, preventing any mechanical vibration from affecting the placement head's sub-micron precision.
Frequently Asked Questions (FAQ)
Q1: Can 00355989 replace older separate generator and distributor units?
The 00355989 is designed for heads specifically port-mapped for this integrated architecture. If your head uses separate lines for the generator and distributor, you must use the original P/Ns unless you are performing a full-head upgrade.
Q2: How do I clean the internal channels of this integrated block?
Because of the complex internal geometry, GEEKVALUE recommends Ultrasonic Cleaning in a mild, non-corrosive solution followed by a high-pressure dry air purge. Do not use mechanical probes, as they can damage the precision-machined Venturi throat.
Q3: What causes "Inconsistent Vacuum" across different ports in this module?
This is usually caused by Micro-Debris trapped in one of the distribution channels. Since the generator is integrated, check the primary exhaust silencer first; a clogged silencer will cause back-pressure that affects all ports simultaneously.
Q4: Is the mounting gasket for the head interface included?
Yes, GEEKVALUE provides the 00355989 with a High-Performance Interface Gasket Set, ensuring a vacuum-tight seal against the placement head body upon installation.
