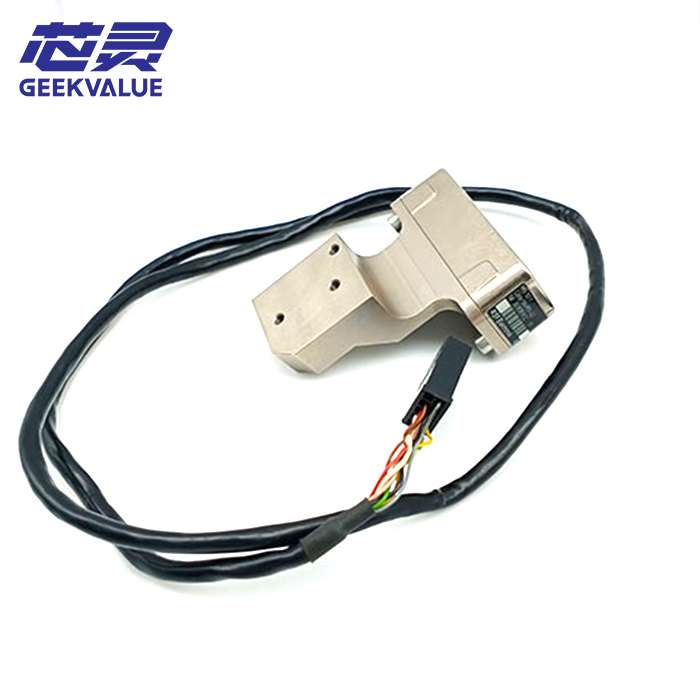

The ASM 00343442 is a mission-critical digital interface sensor designed for the high-speed ASMPT gantry system. While standard sensors simply detect presence, the 00343442 is a Bi-directional Data Gateway. It not only reads the ID of the intelligent feeder but also facilitates the write-back of component usage counts and remaining inventory data. This P/N is specifically engineered with High-Speed Bus Transceivers to ensure that data packets are exchanged in micro-seconds, preventing gantry delays during the feeder initialization phase.
GEEKVALUE provides the 00343442 with a focus on Contact Continuity Optimization. In the vibrating environment of an SMT machine, intermittent contact can cause "Data Parity Errors." Our units feature Self-Adjusting Contact Springs, which maintain a constant $0.5\text{N}$ of pressure against the feeder interface, ensuring a stable electrical bridge for digital logic.
Technical Specifications
Feature | Technical Data |
Product Type | Intelligent Digital Sensing Head |
Part Number (P/N) | 00343442 |
Platform Compatibility | SIPLACE X, SX, and late D-Series Platforms |
Signal Transmission | High-Speed Serial Digital Bus |
Mounting Position | Gantry / Feeder Carriage Interface |
Operational Lifespan | Rated for 200,000+ Insertion/Extraction Cycles |
Housing Construction | Heat-Stabilized, ESD-Safe Polymer |
Strategic Performance Advantages
· Dual-Layer Signal Filtering: To protect against the electrical "back-EMF" generated by the machine's linear motors, the 00343442 incorporates an Integrated Low-Pass Filter. This ensures that only valid digital signals reach the main CPU, eliminating "ghost errors" that lead to false alarms.
· Oxidation-Resistant Surface Engineering: The contact pins are finished with an Ultra-Hard Gold-Cobalt Alloy Plating. This specific metallurgy is chosen for its superior wear resistance compared to standard gold plating, maintaining low contact resistance even after thousands of feeder changeovers.
· Thermal-Shock Stability: Mounted near high-speed gantry motors, the reading head is subject to rapid temperature fluctuations. The 00343442 utilizes a Ceramic-Base Substrate for its internal circuitry, preventing the thermal expansion $(CTE)$ that leads to micro-fractures in solder joints.
· Poka-Yoke (Error-Proofing) Identification: The mechanical housing of the 00343442 is precision-molded to ensure Perfect-Fit Alignment. It guides the feeder pins into the reading head with zero lateral play, protecting the delicate electronic pins from mechanical bending during high-pressure docking.
The GEEKVALUE Advantage: "Zero-Latency Intelligence"
1. 360° Total Cost Optimization (TCO)
A slow or faulty reading head can increase your machine's "Setup Time" by minutes per board run. GEEKVALUE optimizes your TCO by providing 00343442 Reading Heads with High-Frequency Response Calibration. We ensure the sensor triggers the validation process the instant the feeder is locked, maximizing your OEE (Overall Equipment Effectiveness).
2. Trusted by 400+ Public Companies
Global leaders in automotive safety electronics (Airbag/ABS modules) and industrial PLC manufacturing trust GEEKVALUE for their critical sensor replacements. Our 00343442 units are the standard choice for listed companies that require "Flawless Setup Traceability" for their high-compliance manufacturing.
3. Optimized for "TX-Series" Ready-Lines
GEEKVALUE’s 00343442 is fully compatible with the SIPLACE Smart-Setup Workflow. It supports the latest version of ASMPT’s feeder communication protocols, ensuring that your component traceability logs are accurate to the individual carrier tape level.
Frequently Asked Questions (FAQ)
Q1: How does the 00343442 differ from the 03094995 reading head?
While both serve similar functions, the 00343442 is specifically calibrated for the High-Speed Gantry Bus of earlier X/SX platforms. It is essential to match the exact P/N to your gantry serial number to ensure full bus compatibility.
Q2: What is the primary cause of failure for this reading head?
The most common issue is Pin Contamination from airborne solder flux and dust. This creates a high-resistance barrier that prevents the digital signal from crossing. Regular cleaning with ESD-safe solvents can prevent 90% of these failures.
Q3: Can GEEKVALUE provide a bulk replacement kit for a full gantry?
Yes. We maintain a large inventory of Certified 00343442 Units and can provide matched sets to ensure consistent sensor performance across the entire feeder carriage.
Q4: Is any software calibration required after replacement?
The 00343442 is "Plug-and-Play" hardware. However, GEEKVALUE recommends performing a Setup Validation Self-Test within the machine's maintenance menu to confirm the new head is communicating correctly with the controller.
