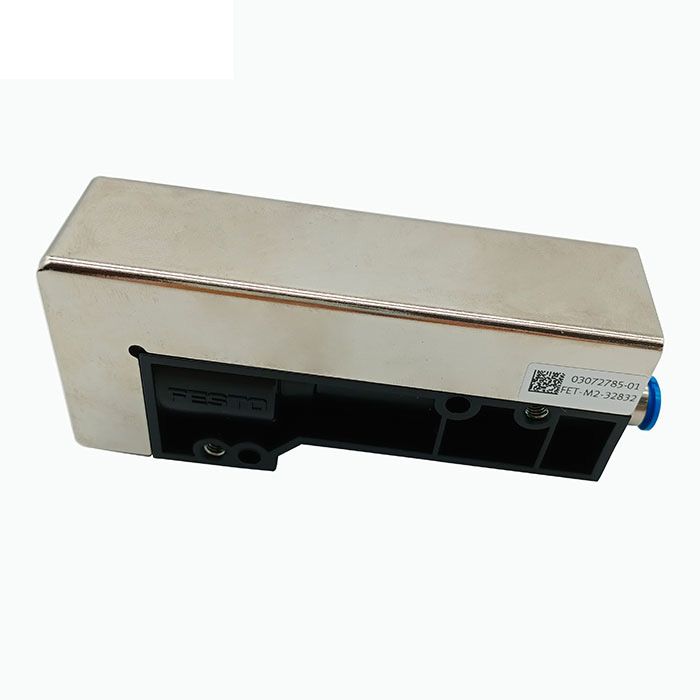

The ASM 03072785 is a specialized pneumatic regulation module engineered for the dynamic requirements of high-speed SMT assembly. Its primary role is to maintain "Pressure Equilibrium." In a machine moving at $4.5\text{G}$, the air columns inside the gantry are subject to inertial compression; the 03072785 acts as a high-speed buffer, ensuring that the pressure delivered to the placement head remains constant regardless of gantry acceleration. This valve is critical for "Force-Sensitive Placement," where the machine must apply a specific, repeatable downward force on delicate silicon dies or fragile ceramic capacitors.
GEEKVALUE provides the 03072785 with a focus on Response Hysteresis Reduction. We ensure that the internal diaphragm and spring assembly react instantaneously to the machine's control signals, allowing for "On-the-Fly" pressure adjustments during a single gantry stroke.
Technical Specifications
Feature | Technical Data |
Product Type | High-Linearity Pressure Regulating Valve |
Part Number (P/N) | 03072785 |
Head Compatibility | SIPLACE CP, CPP, and X-Series Placement Heads |
Regulation Precision | $\pm 0.01\text{ bar}$ Industrial Accuracy Class |
Flow Rate | Optimized for High-Frequency Pulse Switching |
Internal Seal | Long-Life Synthetic Fluoroelastomer |
Inlet/Outlet Port | Precision Machined Low-Friction Interface |
Strategic Performance Advantages
· Sub-Millisecond Regulation Pulse: The 03072785 is designed for "Dynamic Venting." When the machine switches from high-pressure pick-up to low-pressure "Soft Landing," this valve can exhaust excess pressure almost instantly, preventing the "Residual Pressure Spike" that often causes component cracking in low-end pneumatic systems.
· Anti-Resonance Internal Dampening: GEEKVALUE’s 03072785 features a Vibration-Isolated Internal Seat. This prevents the mechanical vibrations of the gantry from translating into "Pressure Ripples" in the air line, ensuring that the nozzle maintains a steady grip on the component throughout the entire motion profile.
· Self-Cleaning Orifice Technology: To combat the common issue of pneumatic "clogging" from micro-particles in the air supply, the 03072785 utilizes a High-Velocity Internal Geometry. The air path is designed to be self-scouring, significantly extending the maintenance intervals even in facilities with standard-grade compressed air.
· Thermal Linear Compensation: The internal regulating spring is made from a Temperature-Stabilized Alloy. This ensures that the output pressure does not drift as the placement head warms up during a long shift, maintaining consistent placement force from the first board to the last.
The GEEKVALUE Advantage: "Steady Pressure, Zero Defects"
1. 360° Total Cost Optimization (TCO)
Inconsistent placement force is the primary cause of "Internal Component Cracking" (invisible to the naked eye). GEEKVALUE optimizes your TCO by providing 03072785 Valves with Factory-Certified Linearity Tests. By ensuring the pressure is always exactly what the software commands, we help you eliminate latent defects and expensive field failures for your customers.
2. Trusted by 400+ Public Companies
Global leaders in automotive safety electronics (Airbag/ABS controllers) and aerospace hardware trust GEEKVALUE for their pneumatic stability. Our 03072785 regulating valves are the standard choice for listed companies that require "Documented Force Consistency" for their high-precision SIPLACE lines.
3. Optimized for "CPP" Head Force Logic
GEEKVALUE’s 03072785 is factory-calibrated to match the specific flow-to-voltage curves used by ASM SIPLACE station software. This ensures that a "50g Force" command in the software results in exactly 50g of pneumatic pressure at the nozzle, enabling true "Plug-and-Play" calibration.
Frequently Asked Questions (FAQ)
Q1: How do I diagnose a failing 03072785 pressure valve?
Common symptoms include inconsistent placement depth (some components pushed too deep, others sitting high), "Vacuum Low" errors during high-speed moves, or a visible fluctuation in the machine's air pressure monitor. If you hear a constant "hissing" from the gantry while idle, the valve's internal seal is likely worn.
Q2: Can I adjust the 03072785 manually?
No. The 03072785 is a System-Controlled Valve. Its output is managed by the machine's electronic control boards. Any attempt to manually override or tamper with the valve can result in serious damage to the placement head or the PCB.
Q3: What is the recommended service interval for this valve?
While the valve is rated for millions of cycles, GEEKVALUE recommends a Functional Pressure Check every 12 months. Ensuring your machine's primary air filters and dryers are working correctly is the best way to maximize the life of the 03072785.
Q4: Is this valve compatible with "Soft-Landing" software features?
Absolutely. The 03072785 is the physical component that makes "Soft-Landing" possible. Its ability to quickly drop pressure before the nozzle touches the PCB is what prevents mechanical impact damage on fragile components.
