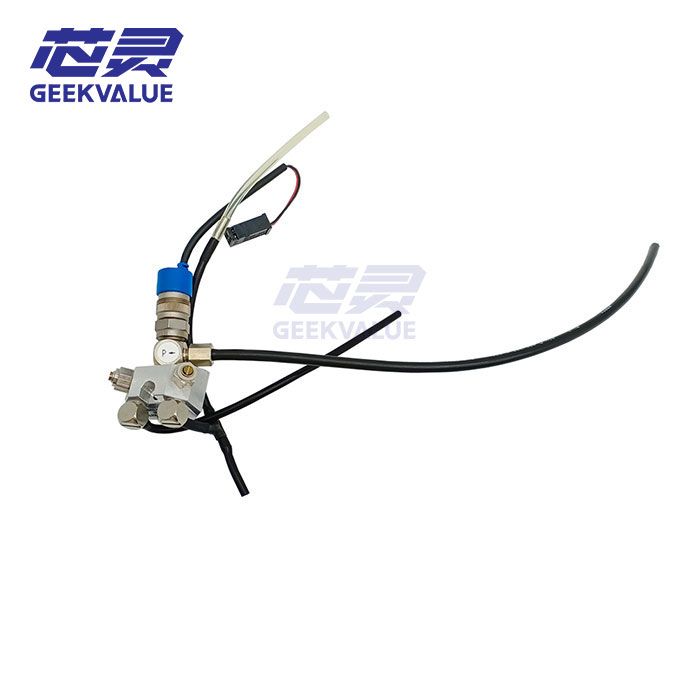

The ASM 00335984 is a high-speed pneumatic executive module specifically engineered for the DLM1 PowerHead. Its primary mission is the management of the "Blow-off Cycle." In the sub-millisecond window during placement, the 00335984 switches the nozzle from vacuum to positive pressure. This module is uniquely tuned for "Pressure Gradient Sharpness," ensuring the pulse is strong enough to break the surface tension of any residual oil or static, yet delicate enough to prevent the component from being displaced or "splashed" in the solder paste.
GEEKVALUE provides the 00335984 with a focus on Switching Response Consistency. We recognize that "Placement Jitter" often stems from inconsistent valve timing. Our units are verified for Zero-Shift Activation, ensuring that the first placement of the morning is just as accurate as the millionth placement of the night.
Technical Specifications
Feature | Technical Data |
Product Type | High-Speed Pulse Blowing Valve |
Part Number (P/N) | 00335984 |
Head Compatibility | SIPLACE DLM1 (Dual Linear Module) |
Operating Frequency | Optimized for High-CPH Performance Cycles |
Valve Logic | Fast-Switching Solenoid with Instant Reset |
Orifice Precision | Micro-Honed for Laminar Airflow |
Body Material | Impact-Resistant Technical Polymer / Alloy Hybrid |
Strategic Performance Advantages
· Precision "Blow-off" Threshold Control: The 00335984 features an Integrated Pressure Regulator Orifice. This prevents "Air Hammers"—sudden spikes in pressure that can crack delicate ceramic capacitors or displace tiny 0201 passives during the hand-off to the PCB.
· Contamination-Shielded Solenoid: SMT environments are often filled with microscopic flux fumes. The internal coil and moving plunger of the 00335984 are Hermetically Sealed, preventing "Sticky Valve" syndrome, which is the #1 cause of components sticking to the nozzle instead of being placed on the board.
· Ultra-Low Thermal Expansion Coil: Unlike generic valves that overheat and lose response speed during continuous high-speed runs, the 00335984 uses a High-Density Copper Coil with superior heat dissipation. This maintains a constant switching latency, critical for maintaining the high accuracy of the DLM1 head.
· Anti-Resonance Mounting Interface: GEEKVALUE’s 00335984 is designed with a Vibration-Dampening Chassis. This ensures that the mechanical "click" of the valve does not resonate through the head assembly, protecting the sub-micron alignment of the DLM1's optical sensors.
The GEEKVALUE Advantage: "Control the Release, Ensure the Yield"
1. 360° Total Cost Optimization (TCO)
A malfunctioning blowing valve causes "Component Missing" errors during placement, even if the pick-up was perfect. GEEKVALUE optimizes your TCO by providing 00335984 Valves with Cycle-Life Certification. By ensuring a clean release every time, we help you eliminate the cost of manual rework and PCB scrap caused by "sticky" placement cycles.
2. Trusted by 400+ Public Companies
Global leaders in flexible circuit (FPC) and high-density memory module assembly trust GEEKVALUE for their DLM1 maintenance. Our 00335984 valves are the standard choice for listed companies that require "Micro-Placement Precision" on their high-density SMT lines.
3. Optimized for "Ultra-Dense" Pitch
GEEKVALUE’s 00335984 is factory-tuned for the narrow nozzle spacing of the DLM1 head. We ensure that the blow-off air is strictly directed through the intended nozzle channel, with zero "Air Leakage" to adjacent nozzles, preventing accidental displacement of neighboring components.
Frequently Asked Questions (FAQ)
Q1: How do I diagnose a failing 00335984 blowing valve?
The most common symptoms are "Component Still on Nozzle" alarms after placement or components being placed with a "skewed" angle. If the valve fails to close properly, you may also see "Vacuum Low" alarms because the blow-off air is leaking into the vacuum circuit.
Q2: Can I clean the internal plunger of the 00335984?
Because this is a precision-calibrated high-speed component, GEEKVALUE recommends Full Replacement if the valve becomes sluggish. Manual cleaning can alter the spring tension or damage the seal, leading to inconsistent placement timing that is difficult to troubleshoot.
Q3: Does the 00335984 require a specific air quality?
Yes. To maximize the life of the 00335984, ensure your machine is supplied with Class 1 (ISO 8573-1) dry, oil-free compressed air. Micro-droplets of oil will eventually cause the valve's internal seals to swell and fail.
Q4: Is the 00335984 compatible with the DLM2 or DLM3 heads?
While they share some design DNA, the 00335984 is specifically calibrated for the pneumatic flow rate and electrical interface of the DLM1. Always verify the part number against your machine's bill of materials (BOM).
