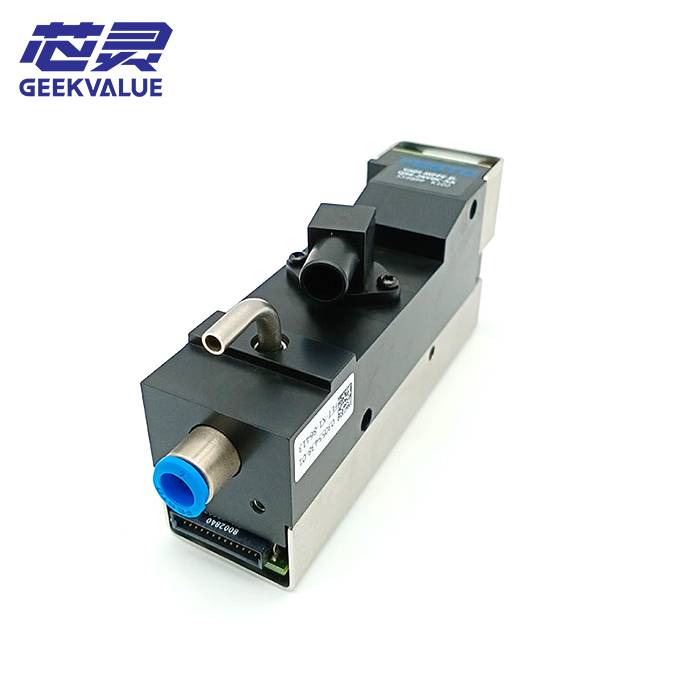

The ASM 03055438 is an advanced pneumatic executive module engineered specifically for the dynamic requirements of the SIPLACE CPP (Composite PowerHead). Unlike standard vacuum generators, the 03055438 is optimized for "Cycle-Time Compression." It utilizes a specialized Internal Venturi Nozzle Geometry that accelerates air to supersonic speeds, creating a vacuum deep enough to secure heavy ICs while maintaining the delicate touch required for 0201 passives.
GEEKVALUE provides the 03055438 with a focus on Pneumatic Signal Sharpness. In a CPP head, the vacuum must engage and disengage within millisecond windows. Our units are verified for Zero-Lag Response, ensuring that the component "release" is just as fast as the "pick," preventing the "stuck-nozzle" issues that cause gantry collisions or placement offsets.
Technical Specifications
Feature | Technical Data |
Product Type | Precision Venturi Vacuum Generator |
Part Number (P/N) | 03055438 |
Compatible Head | SIPLACE CPP (Composite PowerHead) |
Machine Compatibility | SIPLACE X-Series, SX-Series, and D-Series |
Efficiency Rating | High-Yield Vacuum Conversion (Low Air Consumption) |
Material | Hard-Anodized Aerospace Aluminum Alloy |
Internal Coating | Anti-Scale / Friction-Reduction Treatment |
Strategic Performance Advantages
· Pressure-Pulse Dampening Technology: The 03055438 features an Integrated Pressure Stabilizer. This prevents the "Hammer Effect" in the pneumatic lines when the vacuum is suddenly shut off, protecting the delicate internal sensors of the CPP head from mechanical shock and signal noise.
· Optimized Exhaust Orifice: To achieve the ultra-fast placement speeds of the SX-Series, the 03055438 is designed with an Extra-Wide Exhaust Path. This allows the internal air to evacuate almost instantly, facilitating the rapid "Blow-off" cycle required for high-density component placement.
· High-Altitude Efficiency Tuning: GEEKVALUE’s 03055438 is calibrated for Linear Performance across Variable Air Pressures. Whether your factory air system is at $5.0\text{ bar}$ or $6.0\text{ bar}$, the generator's internal geometry ensures a consistent vacuum level, reducing the need for constant software-level suction threshold adjustments.
· Micro-Particle Deflection Coating: The internal Venturi throat is treated with a Hydrophobic Nano-Coating. This prevents microscopic droplets of oil or moisture—common in factory compressed air—from building up and narrowing the air passage, which is the leading cause of vacuum degradation over time.
The GEEKVALUE Advantage: "Dynamic Pneumatic Control"
1. 360° Total Cost Optimization (TCO)
A vacuum generator that wastes compressed air is a hidden operational cost. GEEKVALUE optimizes your TCO by providing 03055438 Generators with Optimized Air-Consumption Ratios. Our units deliver higher vacuum depth per liter of compressed air, lowering your factory's energy bills and reducing the load on your central compressor.
2. Trusted by 400+ Public Companies
Global leaders in 5G telecommunications infrastructure and high-speed memory module assembly trust GEEKVALUE for their CPP head maintenance. Our 03055438 generators are the standard choice for listed companies that require "High-Speed Process Stability" on their most advanced production lines.
3. Seamless "SIPLACE Pro" Integration
GEEKVALUE’s 03055438 is fully compatible with the Vacuum Monitoring Logic of the latest SIPLACE software. We ensure that the vacuum levels generated are within the exact parameters expected by the machine’s controller, enabling a "Zero-Alarm" environment after installation.
Frequently Asked Questions (FAQ)
Q1: How does 03055438 compare to the 03058802 (TwinHead) generator?
The 03055438 is tuned for the high-frequency, smaller-volume requirements of the CPP head, whereas the 03058802 is built for the high-torque, large-volume needs of the TwinHead. They are not interchangeable due to different flow rate characteristics.
Q2: What is the most effective way to clean the 03055438?
We recommend a Dry-Air Flush followed by a gentle cleaning of the exhaust silencer. Never use oil-based lubricants inside the generator, as this will trap dust and eventually clog the precision Venturi nozzle.
Q3: Can this part resolve "Vacuum Not Reached" errors?
Yes. If your filters are clean and your nozzles are new, the "Vacuum Not Reached" error is often caused by internal wear or clogging within the 03055438. Replacing it will restore the head's pneumatic performance to factory standards.
Q4: Is any pneumatic calibration required after replacement?
No mechanical calibration is needed. However, GEEKVALUE recommends running a "Head Self-Test" in the machine software to verify that the vacuum rise-time meets the required millisecond specifications.
Q5: What is the packaging standard for this high-precision module?
Every 03055438 is shipped in a Nitrogen-Purged, Sealed ESD Bag and protected by a custom-molded shock-absorbent enclosure. This ensures that the precision-machined internal surfaces and the critical threads remain in perfect condition until they are mounted on your machine.
