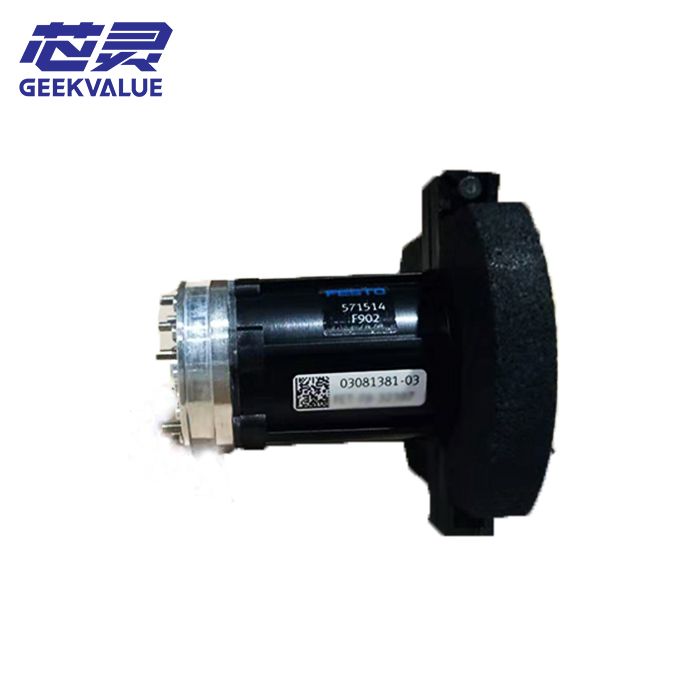

The ASM 03081381 is a high-performance vacuum distribution module engineered specifically for the SIPLACE CPP (Composite PowerHead) series. The CPP head is unique for its ability to toggle between different placement modes, and the 03081381 is designed to support this versatility. It features Variable-Volume Internal Bores, which minimize the "Air Dead Space" inside the manifold. This architectural choice allows the vacuum to reach the nozzle tip up to $15\%$ faster than conventional designs, directly supporting the CPP’s high-speed CPH (Components Per Hour) ratings.
GEEKVALUE provides the 03081381 with a focus on Mass-Momentum Optimization. In high-speed gantries, every gram matters. Our 03081381 units are machined from a Magnesium-Aluminum Hybrid Alloy, offering superior structural rigidity while reducing the parasitic weight on the Z-axis motor, leading to smoother vertical transitions and less mechanical wear.
Technical Specifications
Feature | Technical Data |
Product Type | Composite-Head Vacuum Logic Manifold |
Part Number (P/N) | 03081381 |
Head Compatibility | SIPLACE CPP (Composite PowerHead) |
Machine Series | SIPLACE X-Series, SX-Series |
Channel Count | Multi-Port Synchronization Config |
Material | High-Strength Lightweight Hybrid Alloy |
Response Time | Optimized for Sub-10ms Vacuum Activation |
Strategic Performance Advantages
· Laminar Flow Internal Geometry: The 03081381 internal channels are finished with Nano-Level Smoothing. This prevents "Turbulent Air Pockets" that can cause micro-vibrations in the vacuum line—vibrations that are often responsible for the shifting of 0201/0402 components during the high-speed "flight" from feeder to board.
· Cross-Channel Interference Shielding: Specifically designed for the CPP head's multi-nozzle setup, the 03081381 features Integrated Check-Valve Seating. This ensures that the vacuum surge required to pick a large IC doesn't cause a "Pressure Pulse" that might drop a smaller component being held on an adjacent nozzle.
· Thermal Fatigue Resistance: The CPP head operates at high duty cycles. The 03081381 is treated with a Thermal-Dissipative Coating, ensuring that the distributor remains at a stable temperature. This prevents the rubber seals from hardening or becoming brittle, maintaining a $100\%$ airtight environment over millions of cycles.
· Zero-Burr Port Integrity: GEEKVALUE utilizes Micro-Drilling and Micro-Deburring for every vacuum port. This prevents microscopic metal particles from entering the high-precision vacuum valves downstream, which is the most common cause of "sticky" valve malfunctions in SIPLACE heads.
The GEEKVALUE Advantage: "Stability in Every Pickup"
1. 360° Total Cost Optimization (TCO)
A vacuum distributor with internal leakage forces the vacuum pump to work harder, increasing energy costs and wear. GEEKVALUE optimizes your TCO by providing 03081381 Units with Pressure-Drop Verification. We ensure that your vacuum levels stay constant at the nozzle tip, leading to fewer mis-picks and higher overall line yield.
2. Trusted by 400+ Public Companies
Global leaders in high-mix automotive electronics and high-reliability aerospace manufacturing trust GEEKVALUE for their CPP head maintenance. Our 03081381 distributors are the standard choice for listed companies that require "Repeatable Pneumatic Precision" across their entire fleet of placement machines.
3. Optimized for "SX-Series" Versatility
GEEKVALUE’s 03081381 is fully optimized for the Dynamic Head Change features of the SX series. We ensure the manifold interface is factory-perfect for quick installation, allowing your maintenance team to perform head overhauls with minimal downtime.
Frequently Asked Questions (FAQ)
Q1: How does 03081381 differ from the standard X-series distributor?
The 03081381 is specifically port-mapped and volume-tuned for the CPP head. Using a standard distributor on a CPP head can lead to vacuum synchronization errors and reduced placement accuracy due to mismatched flow rates.
Q2: What is the recommended maintenance for this distributor?
We recommend a Pneumatic Flush every 5 million placements to remove any carbon buildup from the vacuum pumps or airborne flux. Ensure you use only non-residue, ESD-safe pneumatic cleaners.
Q3: Does GEEKVALUE provide the interface gaskets for this part?
Yes. Each 03081381 is shipped with a Precision-Cut Seal Set, ensuring a perfect, airtight mating surface between the manifold and the CPP head body.
Q4: Can this part resolve "Vacuum Low" errors on my CPP head?
If the "Vacuum Low" error persists after changing nozzles and cleaning filters, the issue is likely a micro-crack or seal failure within the 03081381. Replacing it can restore the full suction power required for reliable picking.
