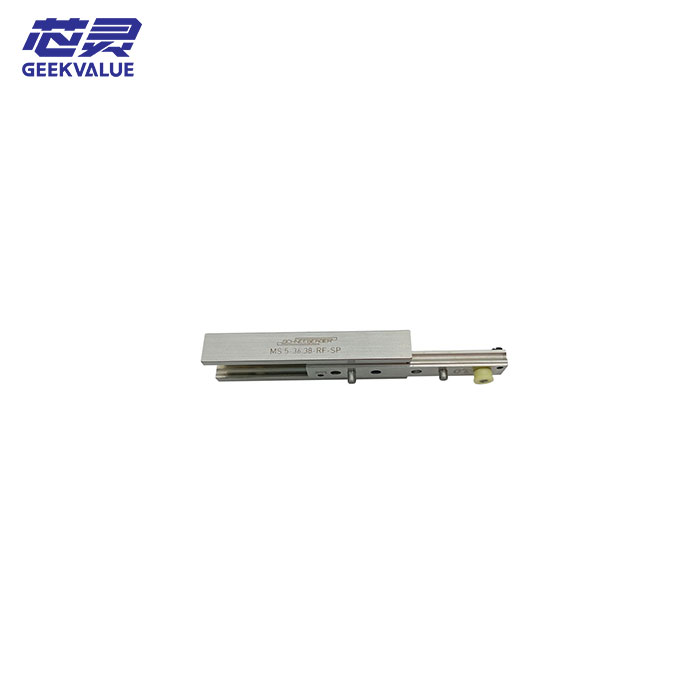

The ASM 03039099 is a mission-critical mechanical segment designed for the SIPLACE Composite PowerHead (CPP). This segment serves as the high-precision interface between the head’s central drive system and the individual nozzle shafts. Unlike standard mechanical links, the 03039099 is engineered for "Zero-Backlash Motion Transmission." It ensures that the rotational torque and vertical force are transmitted with absolute fidelity, allowing the CPP head to maintain its $\pm 22\mu\text{m}$ placement accuracy even during rapid $360^\circ$ component rotations.
GEEKVALUE provides the 03039099 with a focus on Tribological Longevity. We understand that the CPP head undergoes millions of cycles per month. Our segments feature Plasma-Nitrided Wear Surfaces, which significantly reduce internal friction and heat generation, preventing the "Thermal Expansion Drift" that can cause placement offsets in high-density PCBA.
Technical Specifications
Feature | Technical Data |
Product Type | Precision PowerHead Motion Segment |
Part Number (P/N) | 03039099 |
Head Compatibility | SIPLACE CPP (Composite PowerHead) |
Material | High-Grade Tensile Alloy Steel / Lightweight Composite |
Motion Accuracy | Micron-Level Positional Repeatability |
Surface Treatment | Anti-Corrosion & Low-Friction Hard Coating |
Weight Optimization | Aerated Structural Design for Low Inertia |
Strategic Performance Advantages
· Acoustic Vibration Dampening: The 03039099 is designed with Internal Resonance-Absorbing Geometries. These features neutralize the micro-vibrations generated by high-speed Z-axis indexing, ensuring that the component remains perfectly centered on the nozzle tip during the "Flight-to-Placement" phase.
· High-Torque Theta Alignment: The internal gear/coupling interface of the 03039099 is precision-ground to IT5 Grade Tolerances. This allows for the ultra-smooth rotation of large or heavy components (like connectors or odd-form ICs) without the "Jerk" or "Oscillation" that can lead to vision recognition failures.
· Integrated Lubrication Micro-Channels: To minimize maintenance downtime, this segment incorporates Capillary Oil Distribution Paths. These paths ensure that lubricant reaches critical load-bearing surfaces evenly, preventing the "Dry-Spot Friction" that leads to premature mechanical seizure.
· Dynamic Mass Balancing: The 03039099 utilizes an Asymmetric Weight-Relief Profile. By strategically removing mass from non-critical areas, GEEKVALUE ensures the segment has the lowest possible rotational inertia, allowing the CPP head to accelerate and decelerate faster than standard aftermarket alternatives.
The GEEKVALUE Advantage: "Mechanical Reliability, Digital Precision"
1. 360° Total Cost Optimization (TCO)
Mechanical wear in the head segment is a leading cause of intermittent "Pick-up Failures" and "Vision Misalignments." GEEKVALUE optimizes your TCO by providing 03039099 Segments with Extended Fatigue Life. By using superior alloys, we extend the service interval of your CPP heads, reducing the frequency of expensive "Head Overhauls."
2. Trusted by 400+ Public Companies
Global leaders in automotive engine control units (ECU) and industrial automation sensors trust GEEKVALUE for their CPP mechanical components. Our 03039099 segments are the standard choice for listed companies that require "Round-the-Clock" mechanical stability for their most demanding production environments.
3. Optimized for "X-Series" High-G Gantries
GEEKVALUE’s 03039099 is fully stress-tested for the 4.0G+ acceleration profiles of the SIPLACE X and SX series. We ensure that the mechanical integrity of the segment remains uncompromised under extreme centrifugal forces, maintaining the factory-rated CPH of your placement system.
Frequently Asked Questions (FAQ)
Q1: What are the signs that a 03039099 segment needs replacement?
The most common indicators are an audible "clicking" noise during head rotation, increased "Theta-Axis Alarms," or a sudden drop in placement accuracy that cannot be corrected by software calibration. Physical signs include visible scoring or "play" in the nozzle linkage.
Q2: Is the 03039099 compatible with both old and new CPP heads?
The 03039099 is the standard segment for the Composite PowerHead architecture. However, we recommend checking your machine's parts manual to ensure compatibility with specific "P" (Performance) or "S" (Speed) variants of the CPP head.
Q3: Does GEEKVALUE provide the necessary pins and screws for installation?
GEEKVALUE offers the 03039099 as a standalone precision unit. We recommend using New, OEM-Grade Fasteners during installation to ensure the correct torque specs and to maintain the balance of the head assembly.
Q4: How does this segment affect the "C&P" (Collect & Place) mode?
Because the 03039099 manages the mechanical link between the nozzles, its precision is vital for the "Collect" phase. Any mechanical slop in this segment will lead to inconsistent pickup heights, causing the machine to reject feeders or damage delicate leads.
