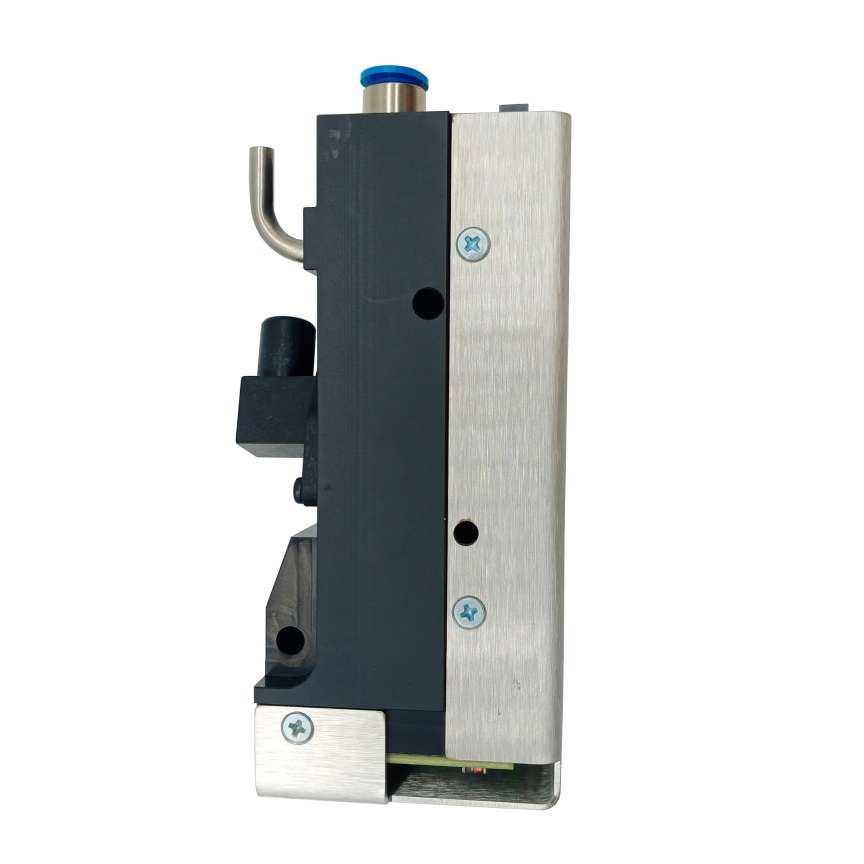

The ASM 03152828 is an advanced pneumatic control component specifically engineered for the SIPLACE Composite PowerHead (CPP). The integration of a High-Flex Diaphragm sets this valve apart, providing a physical barrier that ensures lightning-fast pressure equalization without the "friction lag" common in piston-style valves. This is the "Pneumatic Heart" of the CPP head, responsible for managing the delicate vacuum levels required to hold a component securely at $4.0\text{G}$ acceleration while providing a soft, controlled "Blow-off" pulse for millisecond-perfect placement.
GEEKVALUE provides the 03152828 with a focus on Diaphragm Integrity and Fatigue Resistance. We ensure that the internal diaphragm material is chemically resistant to the oil mists and flux vapors common in SMT environments, preventing the "stiffening" that leads to vacuum leakage and placement errors.
Technical Specifications
Feature | Technical Data |
Product Type | Diaphragm-Integrated Pressure Control Valve |
Part Number (P/N) | 03152828 |
Head Compatibility | SIPLACE CPP (Composite PowerHead) Series |
Actuation Logic | Low-Hysteresis Diaphragm Drive |
Flow Consistency | High-Linearity Output for Stable Vacuum |
Internal Seal | Oil-Resistant Fluoropolymer Elastomer |
Response Time | Optimized for Multi-Nozzle C+P Cycles |
Strategic Performance Advantages
· Ultra-Low Hysteresis Switching: The diaphragm design of the 03152828 allows for instantaneous pressure transitions. By eliminating the sliding friction of a traditional valve stem, this valve ensures that the vacuum-to-pressure switch happens with microsecond accuracy, which is vital for the "Performance Mode" of the CPP head.
· Anti-Turbulence Airflow Geometry: The internal chamber of the 03152828 is precision-profiled to minimize air vortices. This ensures a "Laminar Flow" of vacuum to the nozzle, preventing the micro-vibrations that can cause small or lightweight components to shift on the nozzle tip during high-speed gantry movement.
· Integrated Debris Protection: GEEKVALUE’s 03152828 features a contaminant-shielded seat. The diaphragm acts as a secondary seal that prevents microscopic solder beads or factory dust from reaching the sensitive solenoid pilot, drastically reducing the frequency of "Valve Stuck" alarms.
· Precision Vacuum Deceleration: This valve is engineered to support the "Soft-Landing" placement logic. It allows the machine's software to gradually reduce vacuum pressure as the nozzle approaches the PCB, ensuring that even fragile ceramic components are placed with zero mechanical stress.
The GEEKVALUE Advantage: "Pneumatic Fidelity, Production Stability"
1. 360° Total Cost Optimization (TCO)
Intermittent pneumatic errors are the hardest to debug, often leading to wasted components and idle machines. GEEKVALUE optimizes your TCO by providing 03152828 Valves with Certified Pressure Linearity. By ensuring the vacuum "Grip" is identical across every cycle, we help you eliminate "Mystery Drops" and maintain your target First Pass Yield (FPY).
2. Trusted by 400+ Public Companies
Global leaders in automotive safety electronics and industrial sensor assembly trust GEEKVALUE for their CPP pneumatic components. Our 03152828 valves are the standard choice for listed companies that require "Long-Term Mechanical Consistency" on their high-speed X and SX series lines.
3. Optimized for "CPP" PowerHead Calibration
GEEKVALUE’s 031352828 is factory-tested to match the specific airflow curves of the CPP head's manifold. We ensure that the electrical "Hold" and "Blow" signals translate into the exact pneumatic force the machine's firmware expects, allowing for immediate "Plug-and-Play" integration.
Frequently Asked Questions (FAQ)
Q1: Why is the "w/-diaphragm" version (03152828) preferred over older versions?
The diaphragm (03152828) offers much faster response times and better resistance to airborne contaminants. It provides a more stable vacuum curve, which is essential for the higher CPH (Components Per Hour) rates achieved by modern CPP-equipped machines.
Q2: What happens if the internal diaphragm of the 03152828 ruptures?
A ruptured diaphragm will cause a permanent "Vacuum Low" alarm or a "Vacuum Leak" that the machine's sensors will detect during initialization. If you hear a slight "hissing" sound coming from the CPP head, it is often a sign that the 03152828 needs replacement.
Q3: Can the 03152828 be cleaned and reused?
While the exterior can be cleaned, the internal diaphragm and high-precision seat are Non-Serviceable. Attempting to open the valve can compromise the seal integrity and calibration. GEEKVALUE recommends a full replacement to ensure the safety of your placement head.
Q4: How does this valve affect the placement of 01005 components?
Because 01005s are so light, they are extremely sensitive to the "Blow-off" pulse. The 03152828 ensures that this pulse is perfectly measured and not overly aggressive, preventing the component from being blown off the solder paste during the placement stroke.
