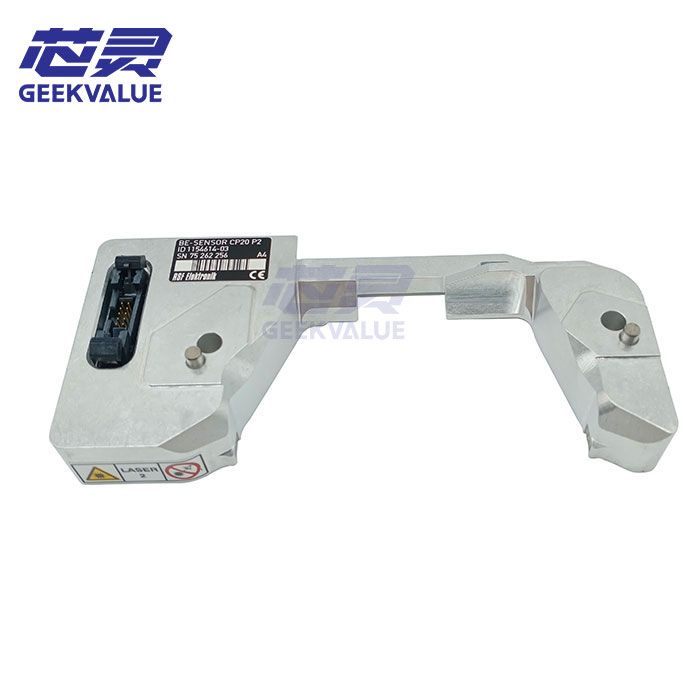

The ASM 03133310 is an ultra-miniaturized, high-bandwidth vacuum sensor developed for the CP20P2 (PowerHead Performance 2). In a head that places up to 20 components in a single gantry stroke, the 03133310 provides the critical "Go/No-Go" logic. Its unique advantage lies in its "Signal Edge Steepness"—the ability to detect a vacuum seal at the nozzle tip in the few milliseconds before the head begins its $4.5\text{G}$ acceleration. This sensor ensures that even at the machine's absolute speed limit, every component is pneumatically locked in place.
GEEKVALUE provides the 03133310 with a focus on Zero-Drift Signal Consistency. We recognize that in high-density TX2 lines, thermal buildup in the gantry can cause sensor readings to shift. Our 03133310 units feature Advanced Silicon-on-Insulator (SOI) Sensing Elements, which remain thermally stable even during 24/7 high-speed production.
Technical Specifications
Feature | Technical Data |
Product Type | High-Frequency Digital Vacuum Sensor |
Part Number (P/N) | 03133310 |
Head Compatibility | SIPLACE CP20P2 (PowerHead Performance 2) |
Response Frequency | Optimized for >2kHz Sampling Rate |
Sensing Technology | Ultra-Low Mass Piezo-Resistive Diaphragm |
Logic Output | High-Speed Serial Data Bus Compatible |
Pressure Range | $0$ to $-1013\text{ mbar}$ |
Strategic Performance Advantages
· Micro-Vacuum Differential Detection: The 03133310 is calibrated to detect the minuscule pressure changes $(<\text{5 mbar})$ associated with the pick-up of 03015 (Metric) components. This prevents the machine from falsely assuming a "Success" when a nozzle is partially blocked by dust rather than a real component.
· Vibration-Hardened Circuitry: To survive the intense mechanical stress of the CP20P2's vertical strokes, the 03133310 is constructed with Epoxy-Encapsulated Electronics. This eliminates "Micro-Arcing" and wire-bond fatigue caused by the high-G environment, ensuring a service life of billions of cycles.
· Asymmetric Filter Logic: This sensor incorporates On-Chip Digital Filtering that ignores the "Pneumatic Noise" generated by the vacuum generator's Venturi effect. It selectively listens only for the specific frequency of a nozzle-seal event, leading to the industry's lowest "False-Negative" pick-up rate.
· Ultra-Low Latency Bus Interface: The 03133310 communicates directly with the head's local controller via a Low-Latency Digital Link. This reduces the total feedback loop time, allowing the machine to skip the "Vision Alignment" phase for a missing component much faster, protecting your overall CPH (Components Per Hour).
The GEEKVALUE Advantage: "Precision Under Pressure"
1. 360° Total Cost Optimization (TCO)
Intermittent sensor failures are the most expensive type of downtime because they cause erratic machine behavior. GEEKVALUE optimizes your TCO by providing 03133310 Sensors with Dynamic Stress-Testing Certification. We guarantee that every sensor can maintain its accuracy under the specific vibration profile of the TX-Series gantry.
2. Trusted by 400+ Public Companies
Global leaders in high-end consumer electronics and wearable medical device manufacturing trust GEEKVALUE for their CP20P2 head maintenance. Our 03133310 sensors are the standard choice for listed companies that require "Sub-Millisecond Verification" of their micro-component assembly processes.
3. Optimized for "TX2" Next-Gen Ecosystems
GEEKVALUE’s 03133310 is fully compatible with the latest SIPLACE Pro / SVP software iterations. We ensure that the sensor's digital ID is recognized instantly by the machine OS, enabling a seamless "Plug-and-Play" replacement that maintains the high-performance calibration of your CP20P2 heads.
Frequently Asked Questions (FAQ)
Q1: Is the 03133310 interchangeable with the 03037106 (CPP Sensor)?
No. While they serve a similar purpose, the 03133310 is specifically tuned for the higher frequency and narrower vacuum ports of the CP20P2 head. Using the wrong P/N will result in "Timing Errors" in the machine software.
Q2: How should I clean the 03133310 sensor port?
The sensor port is extremely delicate. GEEKVALUE recommends using only a Low-Pressure, Ionized Air Pulse or a specialized vacuum cleaning tool. Avoid using any liquid cleaners or sharp probes, as these will rupture the piezo-resistive sensing diaphragm.
Q3: Can a failing 03133310 cause "Vision Retry" errors?
Yes. If the sensor provides an unstable "Vacuum OK" signal, the machine may hesitate or attempt to re-verify the component with the camera, leading to a significant drop in placement speed and increased vision retry counts.
Q4: What is the recommended replacement interval for these sensors?
In 24/7 high-speed environments, GEEKVALUE recommends a Proactive Audit of sensor accuracy every 12 months. If the "Zero-Point Offset" exceeds $15\text{ mbar}$, the sensor should be replaced to maintain peak 01005 placement reliability.
Q5: How does GEEKVALUE ship these sensitive digital sensors?
Every 03133310 is shipped in a Nitrogen-Purged, ESD-Shielding Hard Case. We use precision-cut conductive foam to ensure that neither static electricity nor physical impact can degrade the master-grade accuracy of the sensor during transit.
