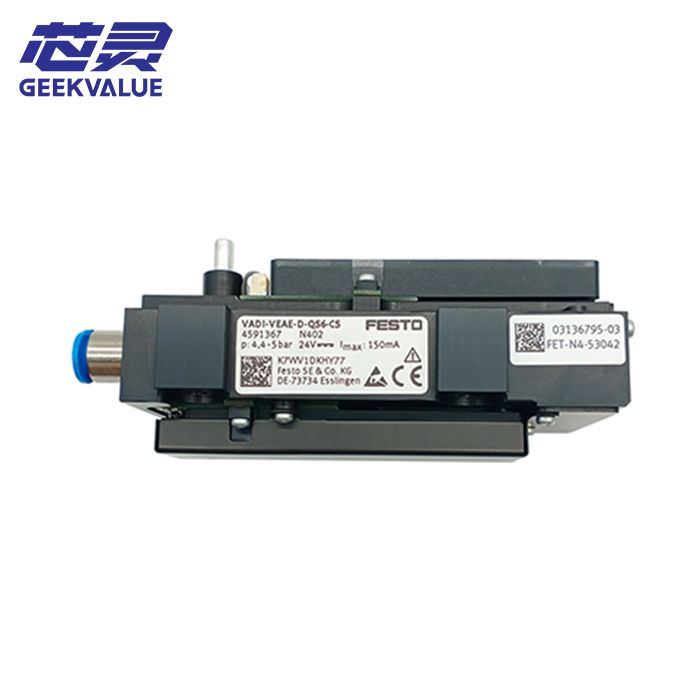

The ASM 03136795 is a next-generation pneumatic module specifically designed for the CP20P2 (PowerHead Performance 2). This generator is engineered to overcome the "Vacuum Latency" that often occurs in ultra-high-speed SMT lines. While standard generators have a gradual vacuum rise-time, the 03106795 features a Square-Wave Response Curve, reaching its target negative pressure in a fraction of a millisecond. This allows the CP20P2 head to achieve its world-class CPH (Components Per Hour) without risking "Fly-off" errors or mis-picks.
GEEKVALUE provides the 03136795 with a focus on Digital Flow Symmetry. In the CP20P2's 20-nozzle array, even a $2\%$ variance in vacuum between segments can lead to inconsistent placement quality. Our units are verified for Cross-Channel Uniformity, ensuring each nozzle on the head experiences identical pneumatic dynamics.
Technical Specifications
Feature | Technical Data |
Product Type | Ultra-High-Speed Digital Vacuum Generator |
Part Number (P/N) | 03136795 |
Head Compatibility | SIPLACE CP20P2 (PowerHead Performance 2) |
Platform Compatibility | SIPLACE TX2, TX, SX, and X-Series |
Cycle Frequency | Optimized for Ultra-Short Pick-up Windows |
Housing Material | Cold-Forged Lightweight Aluminum Alloy |
Valve Logic | Fast-Switching Integrated Pneumatic Logic |
Strategic Performance Advantages
· Nano-Bore Venturi Precision: The internal Venturi throat of the 03136795 is machined with Diamond-Tipped Tooling, resulting in a mirror-like finish. This reduces internal air friction, allowing for a deeper vacuum $(\Delta P)$ while using significantly less compressed air than previous generation 0305-series generators.
· Active Moisture Centrifuge Design: High-speed CP20P2 operations can be sensitive to "Micro-Condensation" in the air lines. The 03136795 incorporates a Passive Moisture Diversion Path, which uses centrifugal force to push trace oils and moisture toward the exhaust, keeping the critical nozzle-side air pure and dry.
· Resonance-Dampened Exhaust: To maintain the precision of the CP20P2’s built-in sensors, the 03136795 utilizes an Advanced Acoustic Sintered Silencer. This silencer is designed to provide zero back-pressure while effectively neutralizing the high-frequency "whistle" of supersonic air, protecting the head's electronics from sonic vibration.
· Ultra-Low Mass Profile: Weighing $12\%$ less than its predecessors, the 03136795 reduces the Inertial Load on the gantry. This results in less heat generation in the X/Y motors and allows the machine to maintain its extreme $4.5\text{G}$ acceleration profile without increased mechanical stress.
The GEEKVALUE Advantage: "Mastering Performance 2"
1. 360° Total Cost Optimization (TCO)
For high-density 01005 assembly, a single "Vacuum Dropout" can cause a chain of rework. GEEKVALUE optimizes your TCO by providing 03136795 Generators with Certified Vacuum Rise-Time Profiles. By ensuring the vacuum "hits" exactly when the software expects it, we help you eliminate the "Vision Retry" delays that slow down your production.
2. Trusted by 400+ Public Companies
Global leaders in 5G module production and flagship smartphone assembly trust GEEKVALUE for their TX2 fleet maintenance. Our 03136795 generators are the standard choice for listed companies that require "Zero-Defect Capability" on their highest-speed manufacturing lines.
3. Factory-Synchronized Port Mapping
GEEKVALUE’s 03136795 is precision-matched to the CP20P2 Manifold Interface. We ensure the sealing surfaces and mounting geometry are within $5\mu\text{m}$ of OEM specifications, facilitating a "Zero-Leak" installation that preserves the machine's factory warranty standards.
Frequently Asked Questions (FAQ)
Q1: Can I use the 03136795 on a standard CP20 head (non-P2)?
While physically similar, the 03136795 is specifically tuned for the Performance 2 (P2) software algorithms and flow rates. Using it on a standard CP20 may require a software-level vacuum threshold adjustment.
Q2: What is the primary indicator of a "clogged" 03136795?
The most obvious sign is a "Sluggish Pick-up." If the vacuum level eventually reaches the threshold but takes too long to get there, the internal Venturi nozzle is likely fouled with micro-particles and needs replacement.
Q3: How does GEEKVALUE verify the ESD safety of this module?
The 03136795 is finished with a Hard-Anodized Dissipative Coating. We perform surface resistance tests to ensure that the module provides a safe grounding path, preventing static buildup near your sensitive SMT components.
Q4: Is the silencer included with the P/N 03136795?
Yes, GEEKVALUE ships the 03136795 as a Complete Assembly, including the high-performance silencer and the primary mounting seals, ready for immediate installation.
