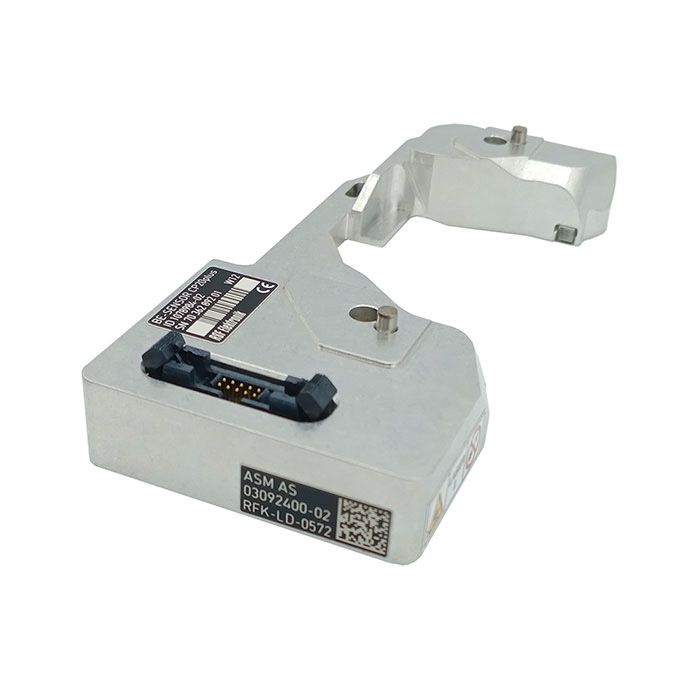

The ASM 03092400 is a high-bandwidth diagnostic sensor engineered for the CP20P High-Performance Head. In a 20-nozzle array, the timing for pick-and-place is measured in milliseconds; the 03092400 provides the critical "Feedback Loop" that tells the machine's CPU exactly when a nozzle has reached its target Z-height or when a component has been successfully picked. This sensor is uniquely tuned for "High-G Suppression," ensuring that the massive vibrations and $4.5\text{G}+$ accelerations of the CP20P head do not cause "Signal Bounce" or false triggering.
GEEKVALUE provides the 03092400 with a focus on Photometric Stability. We recognize that in a 24/7 production environment, sensor drift can lead to phantom errors. Our sensors feature Auto-Threshold Compensation, maintaining a sharp switching edge even as the sensor's optical or electrical window accumulates microscopic factory dust.
Technical Specifications
Feature | Technical Data |
Product Type | High-Speed Integrated Status Sensor |
Part Number (P/N) | 03092400 |
Head Compatibility | SIPLACE CP20P (Collect & Place 20-Nozzle Performance) |
Signal Response | Microsecond-Level Switching Frequency |
Detection Mode | Non-Contact Opto-Electronic / Magnetic Sensing |
Operating Profile | High-Vibration & High-Acceleration Optimized |
Interface | Low-Inertia Flexible Signal Connection |
Strategic Performance Advantages
· Synchronous Multi-Channel Logic: The 03092400 is designed to operate within the "Dense Bus" architecture of the CP20P head. It ensures that signal cross-talk between the 20 closely-packed nozzles is zero, allowing for independent, simultaneous sensing of multiple components without interference.
· Parallax-Compensated Optical Path: For optical variants, the 03092400 utilizes a Narrow-Beam Laser or LED Array. This focus prevents "Stray Light Reflection" from the machine’s internal stainless steel surfaces, ensuring the sensor only triggers on the intended nozzle or component target.
· Anti-Electromagnetic Pulse (EMP) Shielding: In the high-current environment of the CP20P linear motors, electrical noise is constant. The 03092400 is encased in a Faraday-Grade Shield, ensuring the "Status Signal" remains uncorrupted by the gantry's power surges, eliminating intermittent "Head Communication" errors.
· Zero-Maintenance "Solid-State" Design: GEEKVALUE’s 03092400 features a fully encapsulated PCB. By removing moving parts and exposed contacts, we eliminate the mechanical wear associated with tactile sensors, providing a service life that typically exceeds 100 million cycles.
The GEEKVALUE Advantage: "Precision Sensing, Maximum Throughput"
1. 360° Total Cost Optimization (TCO)
A lagging or over-sensitive sensor forces the machine to perform "Retry" cycles, which can drop your real-world CPH by up to $15\%$. GEEKVALUE optimizes your TCO by providing 03092400 Sensors with Pre-Calibrated Switching Thresholds. By ensuring the sensor reacts at the exact factory-spec position, we help you maintain the "Performance" in your CP20P head.
2. Trusted by 400+ Public Companies
Global leaders in high-speed memory module (DRAM) and consumer semiconductor packaging trust GEEKVALUE for their CP20P sensor integrity. Our 03092400 sensors are the standard choice for listed companies that require "Flawless Diagnostic Data" for their smart factory analytics and OEE monitoring.
3. Optimized for "Performance" Speed Profiles
GEEKVALUE’s 03092400 is factory-tested for Thermal Signal Drift. We ensure that as the CP20P head heats up during high-speed runs, the sensor's trigger point remains geographically stable, preventing "Z-Axis Deviation" alarms and ensuring a consistent "Soft-Landing" for every component.
Frequently Asked Questions (FAQ)
Q1: What are the primary signs that a 03092400 sensor is failing?
Common indicators include "Component Recognition Failures" that only occur at high speeds, "Vacuum Switch Over" errors, or the machine failing to initialize a specific nozzle in the 20er array. If you see intermittent "Head Signal Lost" alarms, the sensor's connection or internal logic may be failing.
Q2: Does this sensor require manual alignment during installation?
The 03092400 is designed with a Fixed-Mount Geometric Interface. However, GEEKVALUE recommends a "Head Sensor Calibration" via the SIPLACE service software after replacement to ensure the electronic signal aligns perfectly with the physical Z-axis home position.
Q3: How does dust or oil mist affect the 03092400?
While the sensor is robust, excessive oil mist can coat the optical window and diffuse the beam. GEEKVALUE recommends a Monthly "Dry-Air" Purge of the sensor area. If cleaning is necessary, use only a non-residue electronic cleaner and a lint-free swab.
Q4: Is the 03092400 compatible with the standard CP20 head (non-Performance)?
While the physical mounting may appear similar, the 03092400 is specifically tuned for the "P" (Performance) variant's higher signal frequencies. Always check your machine's configuration to ensure the sensor's response time matches your head's capability.
