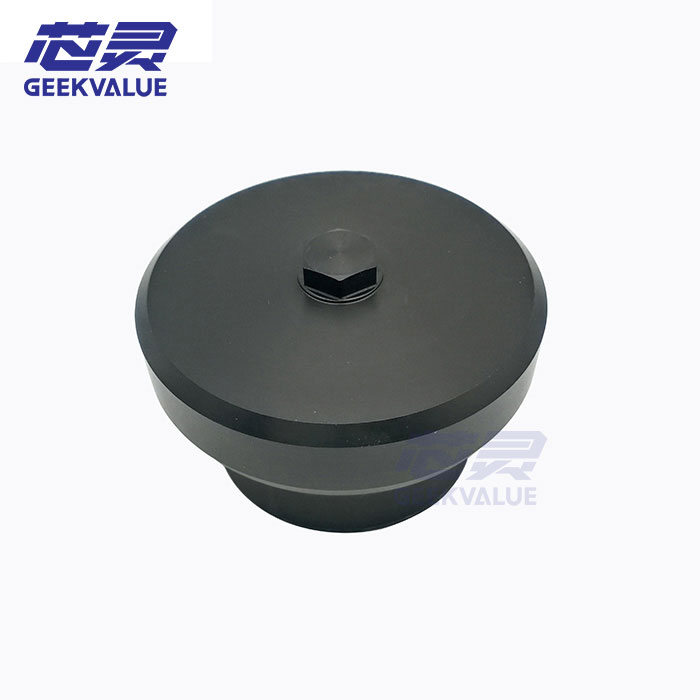

The ASM 03046348 is a specialized reflecting ring complete assembly engineered for the CP20 placement head architecture. Its primary functional role is to serve as a "Stable Optical Datum." When the placement head passes over the component camera, the reflecting ring provides a high-contrast, uniform background that allows the vision software to instantly distinguish the component's geometry from the nozzle and ambient light. The "cpl." (complete) designation ensures that the ring is perfectly seated within its carrier, maintaining a $360^\circ$ uniform reflective plane that is essential for the $0.01^\circ$ theta-axis rotation accuracy required in modern SMT.
GEEKVALUE provides the 03046348 with a focus on Surface Homogeneity. We ensure that the reflective coating is free from micro-scratches or uneven oxidation, which are the leading causes of "False Vision Rejects" in high-speed 01005 (0402 Metric) production.
Technical Specifications
Feature | Technical Data |
Product Type | Precision Optical Reflecting Ring (Complete) |
Part Number (P/N) | 03046348 |
Head Compatibility | SIPLACE CP20, CP20P, CP20P2 Series |
Optical Property | High-Reflectivity / Low-Diffusion Surface |
Material | Lightweight Technical Alloy with Optical Coating |
Function | Back-Light Contrast Generation for Vision System |
Maintenance Class | Precision Optical Consumable |
Strategic Performance Advantages
· Nano-Level Surface Flatness: The 03046348 is precision-lapped to ensure a perfectly flat reflective plane. This prevents "Light Scattering" that can cause the vision system to "blur" the edges of small components, ensuring that the calculated placement coordinates are $100\%$ accurate.
· Enhanced Grayscale Contrast: GEEKVALUE’s 03046348 utilizes a specific Vacuum-Deposited Coating that provides a sharp grayscale transition. This allows the machine to "see" components more clearly even under lower lighting intensities, reducing the electrical stress on the machine's LED lighting units.
· Dynamic Balance Optimization: In a 20-nozzle head rotating at thousands of RPMs, any weight imbalance can cause vibration. The 03046348 is Mass-Balanced to ensure it does not introduce centrifugal oscillations, preserving the lifespan of the head's main bearings and the accuracy of the indexing motor.
· ESD-Safe Optical Finish: The ring is treated with an Anti-Static Dissipative Coating. This prevents SMT dust or micro-solder balls from being electrostatically attracted to the reflective surface, keeping the optical path clean for longer intervals between maintenance cycles.
The GEEKVALUE Advantage: "Visual Clarity, Placing Perfection"
1. 360° Total Cost Optimization (TCO)
A worn or dirty reflecting ring causes the machine to "double-check" images, slowing down the entire line. GEEKVALUE optimizes your TCO by providing 03046348 Reflecting Rings with Certified Reflectivity. By reducing "Vision Retries," we help you maintain the maximum rated CPH (Components Per Hour) of your SIPLACE assets.
2. Trusted by 400+ Public Companies
Global leaders in high-density consumer electronics and aerospace avionics trust GEEKVALUE for their vision-critical parts. Our 03046348 reflecting rings are the standard choice for listed companies that require "Zero-Defect Vision Integrity" to meet the stringent quality audits of the electronics industry.
3. Optimized for "Digital Vision" Platforms
GEEKVALUE’s 03046348 is factory-verified to be compatible with the latest High-Resolution CMOS cameras used in X and SX series machines. We ensure that the reflective properties match the software's digital algorithms, allowing for "First-Pass Success" on even the most complex component geometries.
Frequently Asked Questions (FAQ)
Q1: How do I know if my 03046348 reflecting ring needs replacement?
The most obvious sign is a sudden increase in "Vision Errors" (Error Code: 400 series) or "Component Not Recognized" alarms. Physically, if you see scratches, fingerprint stains that won't wipe off, or "yellowing" of the reflective surface, it is time to replace the ring to restore your machine's accuracy.
Q2: Can I clean the 03046348 with standard industrial cleaners?
NO. The optical coating is sensitive. GEEKVALUE recommends using only Optical-Grade Isopropyl Alcohol (IPA) and lint-free wipes (found in the 03095882 Maintenance Box). Harsh chemicals can strip the reflective coating, making the ring useless for vision alignment.
Q3: Does the 03046348 come with the mounting screws or O-rings?
The "cpl." (complete) version typically refers to the ring and its immediate housing. However, it is always best to check if your specific head version requires additional seals or spacers during installation.
Q4: How does a damaged reflecting ring affect 01005 placement?
For 01005 components, the margin for error is nearly zero. A scratch on the 03046348 can create a "Phantom Edge" in the vision image, causing the machine to offset the placement by several microns, which leads to "Tombstoning" or "Bridging" defects on the PCB.
Q5: How is this precision optical part packaged?
Every 03046348 is Individually Vacuum-Sealed in an anti-static, moisture-proof bag and shipped in a rigid, padded box. We ensure that the reflective surface is protected from any physical contact or environmental oxidation during transit, arriving in "Mirror-Perfect" condition.
