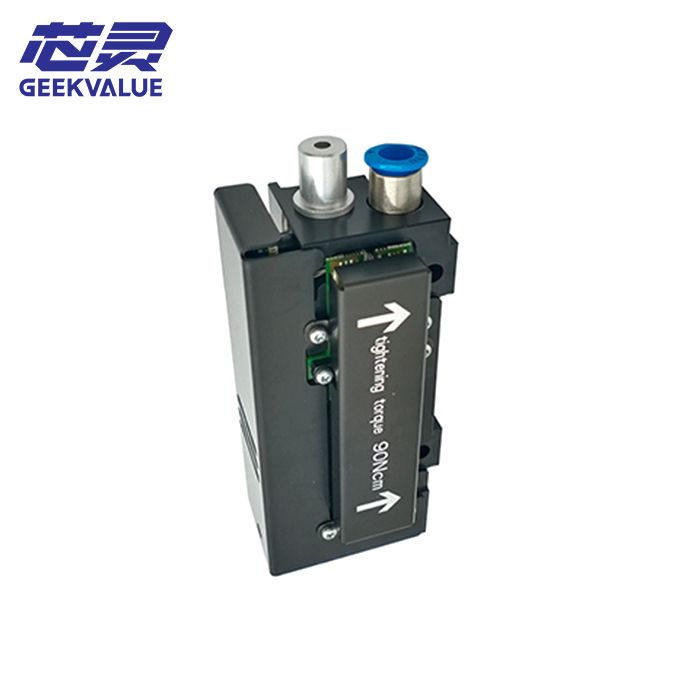

The ASM 03136795 is a high-bandwidth proportional control valve engineered specifically for the CP20 P2 generation head. In a 20-nozzle high-performance environment, the vacuum requirements fluctuate in micro-intervals as nozzles fire in rapid succession. The 03136795 manages this complexity by maintaining "Pneumatic Stiffness," ensuring that the vacuum level does not drop when multiple nozzles activate simultaneously. This valve is the key to preventing "Component Dropping" during high-G gantry transitions.
GEEKVALUE provides the 03136795 with a focus on Response Hysteresis Minimization. We ensure that the time lag between the electrical command and the physical pressure change is reduced to a minimum, allowing the CP20 P2 head to achieve its maximum rated CPH without compromising component safety.
Technical Specifications
Feature | Technical Data |
Product Type | High-Precision Proportional Pressure Valve |
Part Number (P/N) | 03136795 |
Head Compatibility | SIPLACE CP20 P2 (High-Performance Series) |
Control Logic | Precision Analog/Digital Pressure Feedback Loop |
Operating Pressure Range | Optimized for Ultra-Fine Vacuum & Blow-off Control |
Internal Seal Material | High-Durability Fluoropolymer (Oil & Heat Resistant) |
Mounting Interface | Integrated Manifold-Ready Design |
Strategic Performance Advantages
· High-Resolution Pressure Scaling: The 03136795 features a Fine-Stepped Internal Orifice. This allows for the extremely delicate handling of 01005 and 0201 components, where too much vacuum can cause "Component Cracking" and too little leads to "Pick-up Failure." It provides the granular control needed for diverse PCBA layouts.
· Active "Cross-Talk" Suppression: In a 20-nozzle array, the 03136795 acts as a Pneumatic Stabilizer. It utilizes a fast-acting diaphragm that counteracts the pressure surges caused by neighboring nozzles, ensuring that the vacuum holding component #1 remains rock-steady even when nozzles #2 through #20 are firing.
· Thermal Signal Compensation: As the placement head warms up during a 24/7 shift, traditional valves can drift. The 03136795 is built with Temp-Stable Internal Components, ensuring that the "Vacuum Set-Point" remains identical at 8:00 AM and 8:00 PM, eliminating the need for periodic manual adjustments.
· Low-Vibration Solenoid Architecture: GEEKVALUE’s 03136795 uses a Dampened Actuator Pulse. This ensures that the physical switching of the valve does not transmit mechanical shock through the head, protecting the sub-micron alignment of the CP20 P2's high-resolution sensors and vision system.
The GEEKVALUE Advantage: "Steady Pressure, Reliable Yields"
1. 360° Total Cost Optimization (TCO)
An inconsistent pressure valve leads to "Mystery Rejects"—components that pass vision but fall off during gantry movement. GEEKVALUE optimizes your TCO by providing 03136795 Valves with Certified Flow Consistency. By ensuring the vacuum "Grip" is perfect every time, we help you lower your dppm (defective parts per million) and increase your real-world line efficiency.
2. Trusted by 400+ Public Companies
Global leaders in high-density telecommunications and automotive sensor manufacturing trust GEEKVALUE for their CP20 P2 pneumatic reliability. Our 03136795 pressure valves are the standard choice for listed companies that require "Absolute Process Control" for their most complex SMT production lines.
3. Optimized for "P2" Performance Profiles
GEEKVALUE’s 03136795 is factory-calibrated for the higher airflow requirements of the P2 series. We ensure that the valve's "Recovery Time" (the time to return to full vacuum after a blow-off pulse) is $15\%$ faster than standard valves, directly supporting the high-speed capability of your SIPLACE X-Series.
Frequently Asked Questions (FAQ)
Q1: What are the signs that a 03136795 valve is failing?
Common symptoms include inconsistent "Vacuum Low" alarms that occur randomly across different nozzles, components "shifting" on the nozzle during movement, or a visible drop in the vacuum pressure gauge during high-speed operation.
Q2: Can I use the older 030-series valves in a CP20 P2 head?
NO. The 03136795 is specifically designed for the P2 (Generation 2) architecture, which uses different electrical connector pinouts and flow-rate curves compared to legacy CP20 heads. Using an incorrect valve can lead to vacuum sensor errors and damaged control boards.
Q3: How does oil in the compressed air affect the 03136795?
Oil is the "silent killer" of precision valves. It causes the internal seals to swell and become sticky, leading to delayed response times. Always ensure your machine's Air Filtration System is maintained to ISO 8573-1 standards to protect this component.
Q4: Is calibration required after replacing the 03136795?
Yes. After installation, GEEKVALUE recommends performing a "Vacuum System Normalization" and "Pressure Valve Offset Calibration" through the SIPLACE service software to ensure the digital command matches the physical output.
