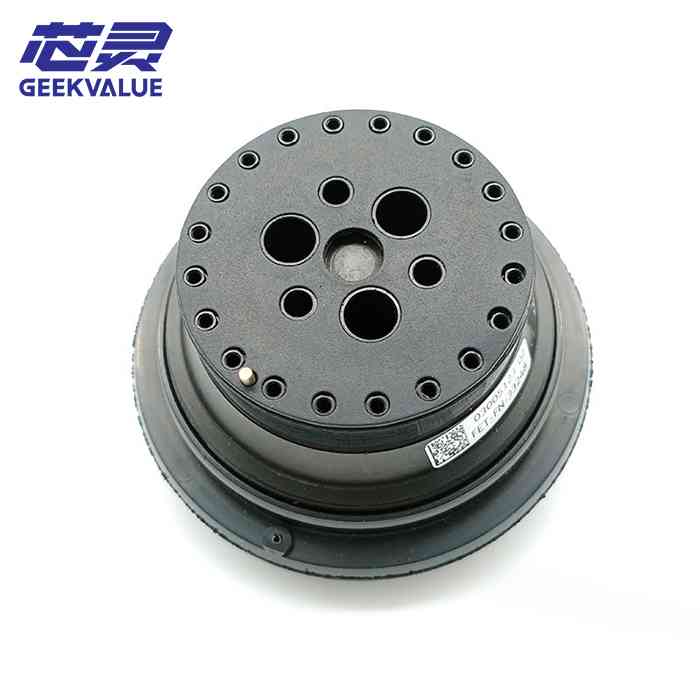

The ASM 03005123 is a critical electronic stabilization module for the SIPLACE CP20/C+P20 PowerHead. Its primary engineering objective is to manage the "Magnetic Retention Force" during the gantry's most violent acceleration and deceleration phases. By utilizing a Zero-Lag Feedback Loop, the 03005123 ensures that once a nozzle is engaged, it remains mechanically locked in its functional position. This prevents "Nozzle Flutter," a phenomenon where micro-vibrations at high speeds cause component misalignment before the placement stroke even begins.
GEEKVALUE provides the 03005123 with a focus on Current-Pulse Consistency. We ensure that the electrical "Hold" command is delivered with an identical waveform every time, preventing the magnetic force fluctuations that can lead to intermittent "Nozzle Dropping" errors in high-speed production.
Technical Specifications
Feature | Technical Data |
Product Type | Integrated Magnetic Hold-Circuit Module |
Part Number (P/N) | 03005123 |
Head Compatibility | SIPLACE CP20 / C+P20 (20-Nozzle) |
Retention Logic | Active Low-Latency Magnetic Locking |
Reaction Time | $\leq 0.5\text{ms}$ (Ultra-Fast Response) |
Durability | Solid-State Switching (Zero Mechanical Wear) |
Thermal Rating | Optimized for 24/7 High-Duty Cycles |
Strategic Performance Advantages
· Active Counter-Inertia Control: The 03005123 is engineered to overcome the Inertial Forces generated during the gantry’s direction changes. It provides a constant, regulated electrical current to the head’s locking solenoids, ensuring that the mechanical executive parts do NOT shift even under $4.5\text{G}$ of lateral force.
· EMI-Shielded Signal Integrity: Because it is located in close proximity to high-power linear motors, GEEKVALUE’s 03005123 features Enhanced Galvanic Isolation. This prevents electromagnetic interference (EMI) from "False Triggering" the hold circuit, ensuring that the nozzle status remains $100\%$ predictable.
· Low-Heat Efficiency Profile: Unlike standard solenoid drivers, the 03005123 uses Pulse Width Modulation (PWM) logic to maintain the holding force. This drastically reduces the heat generated within the CP20 head, protecting sensitive internal seals and O-rings from premature thermal aging.
· Instantaneous State Synchronization: The module is perfectly timed with the SIPLACE Vision Trigger. It ensures that the "Hold" state is absolutely stable the exact microsecond the CO camera captures the component image, eliminating "Motion Blur" caused by nozzle micro-play.
The GEEKVALUE Advantage: "Mechanical Rigidity through Electronic Precision"
1. 360° Total Cost Optimization (TCO)
Intermittent "Head Errors" are the most difficult to diagnose. GEEKVALUE optimizes your TCO by providing 03005123 Modules with Verified Waveform Stability. By ensuring the holding circuit never "flickers," we help you eliminate mystery machine stops and maintain a smooth, uninterrupted production flow.
2. Trusted by 400+ Public Companies
Global leaders in high-speed consumer electronics and automotive sensor assembly trust GEEKVALUE for their CP20 head electronics. Our 03005123 modules are the standard choice for listed companies that require "Hardware-Level Reliability" for their most demanding SMT lines.
3. Optimized for "C+P20" Dynamic Balancing
GEEKVALUE’s 03005123 is factory-tested to match the Inductive Load of the SIPLACE 20-nozzle array. We ensure the electrical "Snap" of the circuit is crisp, allowing for the rapid-fire pick-and-place cycles that define the world-class performance of the X-series machines.
Frequently Asked Questions (FAQ)
Q1: How do I know if my 03005123 hold-circuit is failing?
The most common sign is a "Nozzle Position Error" or "Nozzle Check Failed" alarm that only occurs during high-speed gantry moves. If the head passes low-speed tests but fails at $100\%$ machine speed, the 03005123 is likely unable to maintain the required holding force.
Q2: Can this module be used on the 12-nozzle (CP12) head?
While the logic is similar, the 03005123 is specifically tuned for the electrical characteristics and solenoid count of the CP20/C+P20 head. Always verify your specific head model before installation to ensure electrical compatibility.
Q3: Does this part require any software calibration?
After replacing the 03005123, GEEKVALUE recommends running a "Head Diagnostic Routine" in the SIPLACE Service Software. This ensures the machine's controller recognizes the new module and that all 20 nozzles are responding correctly to the "Hold" command.
Q4: How does it handle factory power fluctuations?
The 03005123 includes an Internal Voltage Regulator. It can compensate for minor fluctuations in the machine’s $24\text{V}$ DC bus, ensuring that the magnetic holding force remains constant even if other gantry motors are drawing peak current.
Q5: How is this precision electronic module packaged?
Every 03005123 is Anti-Static Sealed in moisture-barrier packaging and shipped in a custom-molded, high-density anti-vibration foam case. This ensures that the delicate surface-mount components and connectors arrive in factory-perfect condition.
