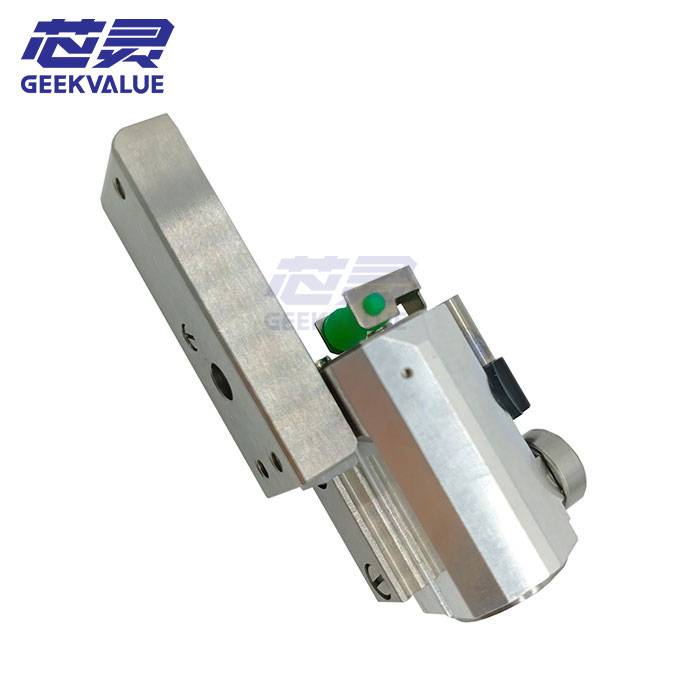

The ASM 00319748 is a sophisticated electromechanical segment designed specifically for the DLM2-generation 12-nozzle heads. This component represents a major evolution from purely pneumatic systems to Precision Electric Control. The 00319748 manages the intricate dance of the 12-segment array, housing the critical electrical interfaces and drive logic required for Independent Nozzle Actuation. In a DLM2 environment, this segment ensures that the high-frequency "Up-Down" motion is executed with a constant, programmable force, which is essential for placing fragile components like ultra-thin wafers or micro-LEDs.
GEEKVALUE provides the 00319748 with a focus on Signal Latency Reduction. We understand that in a high-CPH (Components Per Hour) line, even a microsecond of delay in the "Vacuum-to-Placement" signal can result in a misaligned component. Our units are verified for High-Speed Bus Integrity, ensuring seamless communication between the head's local sensors and the machine's main gantry controller.
Technical Specifications
Feature | Technical Data |
Product Type | Integrated Electric Drive Segment |
Part Number (P/N) | 00319748 |
Head Compatibility | SIPLACE 12-Nozzle CPL DLM2 (High-Accuracy Series) |
Control Logic | Multi-Channel Closed-Loop Feedback |
Interface Type | High-Density Gold-Plated Electrical Connector |
Material | Lightweight Thermal-Stable Aluminum Alloy |
Feature | Integrated Z-Axis Limit & Component Sensing Support |
Strategic Performance Advantages
· Active Placement Force Monitoring: The 00319748 supports Real-Time Force Sensing. This allows the DLM2 head to perform "Soft-Landing" placements, where the downward force is adjusted dynamically based on the component's height and the PCB's warpage. This is critical for preventing internal micro-cracks in sensitive ceramic multilayer capacitors (MLCC).
· Segment-Level Electrical Isolation: Designed for Zero-Interference Operation, the 00319748 features internal shielding that prevents electromagnetic "Cross-Talk" between the 12 drive channels. This ensures that the electrical pulse for nozzle #1 does not inadvertently affect the sensor readings of nozzle #2, maintaining sub-micron stability across the entire head.
· Thermally-Stable Bus Architecture: To prevent "Signal Drift" caused by the heat of the gantry’s linear motors, the 00319748 utilizes Low-Resistance Internal Wiring. This maintains a consistent voltage drop across all channels, ensuring that the timing of each nozzle in the 12er array remains perfectly synchronized throughout long production shifts.
· Compact High-Density Integration: GEEKVALUE’s 00319748 is engineered to fit the ultra-narrow footprint of the DLM2 module. Its "Smart" circuitry integrates several legacy components into a single segment, reducing the overall weight of the head and allowing the gantry to maintain its peak $4.5\text{G}$ acceleration without increased mechanical wear.
The GEEKVALUE Advantage: "Intelligence in Motion"
1. 360° Total Cost Optimization (TCO)
Electrical failures in the head segment often lead to intermittent "Segment Communication Errors" that cause entire gantry stops. GEEKVALUE optimizes your TCO by providing 00319748 Modules with Gold-Standard Connector Durability. By ensuring a stable, oxidation-resistant electrical connection, we help you eliminate the "phantom" alarms that lower your real-world OEE.
2. Trusted by 400+ Public Companies
Global leaders in high-reliability 5G module assembly and automotive infotainment systems trust GEEKVALUE for their DLM2-series head components. Our 00319748 electric segments are the standard choice for listed companies that require "Digital Precision" for their most advanced, high-density SMT assets.
3. Optimized for DLM2 High-Accuracy Calibration
GEEKVALUE’s 00319748 is factory-tested for Z-Axis Linearity. We ensure that the electrical feedback values are consistent with the OEM calibration tables, allowing for a faster "Head Offset Calibration" after installation and ensuring your machine returns to its maximum accuracy immediately.
Frequently Asked Questions (FAQ)
Q1: What are the primary symptoms of a failing 00319748 electric segment?
Common indicators include "Segment Communication Failures," inconsistent placement heights across the 12-nozzle array, or "Z-Axis Timeout" alarms that only affect specific nozzles. If you see intermittent sensor errors that occur only during high-speed rotation, the 00319748 may have internal wiring fatigue.
Q2: Does the 00319748 require any special handling during installation?
YES. Due to the high-density gold-plated connectors, GEEKVALUE recommends using ESD-safe gloves and avoiding any contact with the pin surfaces. Any oil or static discharge can permanently damage the sensitive communication chips housed within the segment.
Q3: Can a faulty 00319748 affect the machine's vision alignment?
Indirectly, yes. If the electric segment provides unstable power to the head's local sensors or lights, the vision system may receive "Noisy" data, leading to "Recognition Errors" or "Component Centering Alarms."
Q4: Is the 00319748 compatible with the older DLM1 heads?
No. The 00319748 is specifically designed for the DLM2 (Dual Linear Module 2) architecture. The electrical pinouts and control logic are optimized for the newer generation's bus speeds and are not backward compatible with DLM1.
