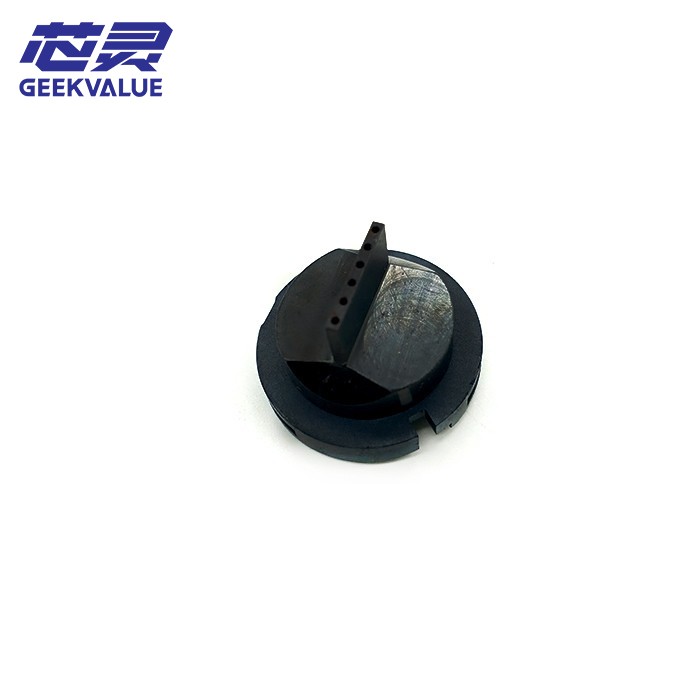

The ASMPT 00328123 is a high-durability nozzle engineered for the rigorous demands of 24/7 mass production. While smaller nozzles prioritize miniaturization, the 00328123 focuses on "Sealing Integrity under Acceleration." In the context of a Multi-Star head rotating at peak RPM, the centrifugal force can compromise the vacuum seal of a standard nozzle. The 00328123 addresses this with a Reinforced Coupling Interface, ensuring that the vacuum level $(V_l)$ remains constant even during the most aggressive gantry transitions.
GEEKVALUE provides the 00328123 with a focus on Contact Surface Planarity. For components like thick-film resistors, a non-planar nozzle tip causes "Air-Leaking Micro-Gaps." Our 00328123 nozzles are finished with Sub-Micron Lapping Technology, creating a perfectly flat interface that maximizes suction efficiency and reduces component mis-picks by up to 15%.
Technical Specifications
Feature | Technical Data |
Product Type | Heavy-Duty Precision SMT Nozzle |
Part Number (P/N) | 00328123 |
Compatible Heads | SIPLACE Multi-Star, Star-Head, and Legacy Twin-Heads |
Tip Construction | Hardened Chrome-Alloy / Tech-Ceramic Hybrid |
Application Range | 0603 (Inch), 0805 (Inch), and Small Rectangular SMDs |
ESD Protection | Integrated Dissipative Path ($10^6 \sim 10^9 \Omega$) |
Recognition System | High-Contrast Dual-Band Recognition Rings |
Strategic Performance Advantages
· Acoustic Damping Alloy: The 00328123 shaft is constructed from a specialized alloy that absorbs the high-frequency "chatter" generated during high-speed feeder picking. This stabilizes the component's orientation the instant it is lifted from the carrier tape.
· Thermal-Stable Vacuum Orifice: Unlike standard nozzles that may expand slightly during high-heat production cycles, the 0328123 utilizes Low-Expansion Materials. This ensures the vacuum aperture diameter remains constant, preventing the "Vacuum Surge" effect that can flip lightweight components.
· Proprietary Anti-Glare Finish: Optimized for SIPLACE SVP (SIPLACE Vision System), the nozzle body features a deep-matte, non-reflective coating. This ensures the vision system identifies the component's center with zero interference from reflected light, even when using high-intensity LED strobes.
· Micro-Bevel Tip Design: The edges of the 00328123 tip are micro-beveled. This design reduces the risk of "Solder Paste Scooping" during the placement stroke, ensuring that the paste deposit remains intact on the PCB pad for optimal reflow results.
The GEEKVALUE Advantage: "Engineering Resilience"
1. 360° Total Cost Optimization (TCO)
Frequent nozzle wear is a hidden profit-killer. GEEKVALUE optimizes your TCO by providing 00328123 Nozzles with Enhanced Abrasion Resistance. By using a harder-than-standard tip composite, we extend the operational life of the nozzle, reducing the "Total Cost per Placement" over the lifetime of your production line.
2. Trusted by 400+ Public Companies
Global leaders in industrial power electronics and white-goods manufacturing trust GEEKVALUE for their placement infrastructure. Our 00328123 units are the standard choice for listed companies that require "Industrial-Grade Ruggedness" for their high-volume, high-uptime assembly environments.
3. Certified Concentricity Audits
GEEKVALUE’s 00328123 nozzles are inspected for Dynamic Concentricity. We ensure that the vacuum center and the mechanical center of the nozzle are perfectly aligned, which is critical for preventing "Off-Center Pickup" that leads to vision-alignment failure.
Frequently Asked Questions (FAQ)
Q1: Is the 00328123 compatible with the SIPLACE X-Series machines?
Yes. As long as your X-Series is utilizing the Multi-Star or Star-Head configuration, the 00328123 will dock perfectly and be identified by the machine's recognition logic.
Q2: How does GEEKVALUE ensure the ESD safety of this specific P/N?
Every 00328123 is tested for Full-Path Continuity. We verify that the static charge can flow unimpeded from the nozzle tip to the grounding interface of the head, protecting sensitive circuits from voltage spikes.
Q3: Can this nozzle handle 1206 or larger components?
While it can pick them up, the 00328123 is optimized for 0603 and 0805 sizes. For 1206 and larger, GEEKVALUE recommends a nozzle with a larger vacuum aperture to ensure sufficient holding force during gantry movement.
Q4: What is the recommended cleaning interval for this nozzle?
For lines running 24/7, we recommend a Bi-Weekly Ultrasonic Cleaning. The 00328123's internal bore is polished to resist flux buildup, but regular maintenance ensures the vacuum response time remains in the sub-millisecond range.
