The ASM 03077941 is a high-performance nozzle meticulously engineered for the modern SMT production line. While smaller series nozzles focus on the sheer speed of passives, the 03077941 is built for Positional Accuracy and Hold Integrity. It features a specialized Treated Contact Surface, which is designed to form a micro-hermetic seal with the component body. This is particularly crucial for larger surface-area components where the mass-to-suction ratio requires a rock-solid vacuum lock during the high-G-force transitions of the SIPLACE X and TX gantries.
GEEKVALUE provides the 03077941 with a focus on Axial Concentricity. We recognize that for high-pin-count ICs, even a $0.05\text{mm}$ axial tilt during pickup can lead to bent leads or skewed placement. Our 03077941 nozzles undergo Dynamic Balance Verification, ensuring that the component remains perfectly horizontal from the feeder to the board pad.
Technical Specifications
Feature | Technical Data |
Product Type | High-Precision IC Placement Nozzle |
Part Number (P/N) | 03077941 |
Compatible Head | SIPLACE CP20 (PowerHead) / TwinHead |
Tip Architecture | Enhanced Wear-Resistant Composite with Anti-Static Finish |
Application Range | Small to Mid-Sized ICs, QFP, BGA, and SOT Components |
Recognition System | Integrated Data Matrix / High-Contrast Optical Rings |
Strategic Performance Advantages
· Laminar Flow Vacuum Core: The 03077941 internal chamber is CNC-profiled to eliminate air turbulence. This ensures that the vacuum pressure is distributed evenly across the tip surface, preventing the "vibration jitter" that can occur when picking up components with non-uniform density.
· Zero-Grip Release Coating: To prevent the "Sticking Effect" common with certain molded component packages, the 03077941 features a Low-Surface-Energy Tip Coating. This allows for a clean, instantaneous release the moment the vacuum is switched to blow-off, significantly improving placement FPY (First Pass Yield).
· Enhanced Optical Silhouette: The matte-finish body of the 03077941 is designed for the SIPLACE Vision System (SVP). It minimizes reflective "hot spots," allowing the camera to precisely identify the nozzle's edge and the component's leads, facilitating real-time offset correction.
· Stress-Dispersive Construction: The nozzle shaft is built using a vibration-dampening alloy. This acts as a shock absorber during the high-speed placement stroke, protecting the delicate internal bond wires of advanced ICs from the mechanical shock of the impact.
The GEEKVALUE Advantage: "Integrity in Every Pick"
1. 360° Total Cost Optimization (TCO)
The failure to pick an IC often results in an entire machine cycle stop. GEEKVALUE optimizes your TCO by providing 03077941 Nozzles that have undergone Vacuum Retention Audits. By delivering a nozzle that maintains its suction profile longer than standard aftermarket parts, we maximize your line's uptime and reduce component waste.
2. Trusted by 400+ Public Companies
Global leaders in industrial automation and automotive sensor manufacturing trust GEEKVALUE for their precision tooling. Our 03077941 units are the standard choice for listed companies that require "Absolute Process Repeatability" for their high-value, high-reliability electronic assemblies.
3. Optimized for High-Speed Hybrid Lines
GEEKVALUE’s 03077941 nozzles are inspected for Interface Seal Purity. We ensure that the mechanical interface between the nozzle and the head's spindle is airtight, allowing your SIPLACE machine to switch between passive and IC placement seamlessly without vacuum fluctuations.
Frequently Asked Questions (FAQ)
Q1: Is the 03077941 compatible with the older SIPLACE X-Series?
Yes. As long as the machine is equipped with the CP20 PowerHead, the 03077941 will dock perfectly and be recognized by the software.
Q2: What component sizes are most suitable for this P/N?
The 03077941 excels at handling mid-range components, typically in the $3\text{mm} \times 3\text{mm}$ to $10\text{mm} \times 10\text{mm}$ range, including various SOT and small QFP packages.
Q3: How does GEEKVALUE verify the ESD safety of this nozzle?
Every unit is tested with a Surface Resistivity Probe. We ensure the dissipative coating remains within the $10^5$ to $10^9\text{ ohms}$ range, preventing static damage to sensitive semiconductor gates.
Q4: Can this nozzle be used for LED placement?
While it can handle LEDs, for silicon-domed LEDs, GEEKVALUE recommends verifying the tip diameter to ensure it does not damage the delicate lens material.

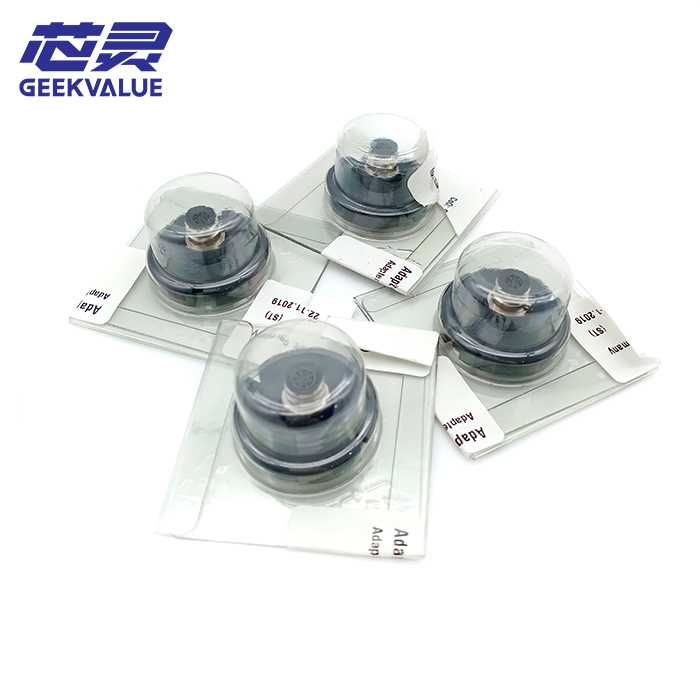

Q5: What is the packaging standard for 03077941 precision nozzles?
We use Individual ESD-Safe Protective Capsules. Each 03077941 is secured to prevent tip abrasion and contamination, ensuring it arrives in factory-calibrated condition ready for immediate use.
