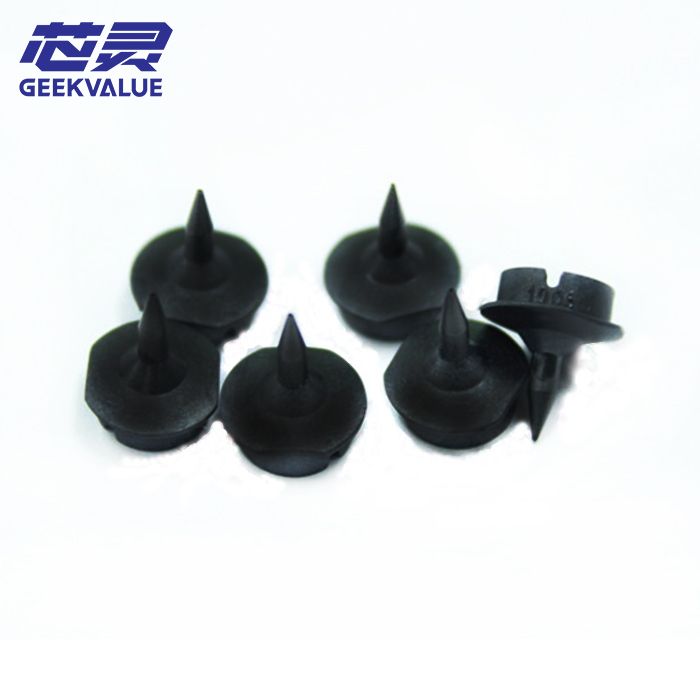

The ASM 03015854 (DX 1006) is a next-generation SMT nozzle specifically designed for the SIPLACE DX series placement heads. In high-speed SMT assembly, the mass of the nozzle is a critical factor in determining the gantry's acceleration limits. The DX 1006 features an Advanced Thin-Wall Shaft Architecture, which significantly reduces the rotational inertia $(\text{moment of inertia})$. This allows the DX head to execute orientation corrections $(\theta\text{-axis})$ with surgical precision and zero overshoot, even at the highest CPH settings.
GEEKVALUE provides the 03015854 with a focus on Pneumatic Response Time. For the DX series, every microsecond counts. Our nozzles are engineered with a Optimized Internal Plenum, which minimizes the air volume that needs to be evacuated. This results in a "Snap-Action" vacuum lock, securing components the instant they are reached by the head.
Technical Specifications
Feature | Technical Data |
Product Type | DX-Series High-Speed Specialized Nozzle |
Part Number (P/N) | 03015854 |
Nozzle Series | DX 1006 |
Compatible Head | SIPLACE DX-Series Placement Heads |
Tip Material | High-Grade Anti-Static Wear-Resistant Composite |
Optimal Component Range | 0201 (Inch), 0402 (Inch), and Small-Form Passives |
Identification | Laser-Etched Recognition Rings / Data Matrix |
Strategic Performance Advantages
· Mass-Optimized Dynamic Balance: The 03015854 is one of the lightest nozzles in the SIPLACE portfolio. By reducing the weight of the moving mass on the DX head, it minimizes mechanical wear on the head's spindles and drive motors, extending the MTBF (Mean Time Between Failures) of your most expensive gantry assets.
· High-Speed "Soft-Landing" Profile: To protect delicate low-K dielectrics and fragile ceramic capacitors, the DX 1006 is calibrated for Controlled Impact Dynamics. It works in perfect harmony with the DX head's force-sensing system to ensure a "Gentle-Touch" placement, even when operating at maximum cycle speeds.
· Non-Reflective Vision Contrast: The 03015854 features a specialized matte-finish tip coating. This is essential for the High-Speed Vision Systems of the DX series, as it prevents light flare and creates a perfect black-background silhouette, allowing the machine to calculate component offsets with $15\mu\text{m}$ precision.
· Clog-Resistant Vacuum Orifice: The tip geometry of the DX 1006 is designed to be "Self-Purging." The internal taper is polished to a mirror finish, preventing the accumulation of solder balls or flux fumes, which ensures consistent suction power throughout a 24-hour production shift.
The GEEKVALUE Advantage: "Efficiency in Motion"
1. 360° Total Cost Optimization (TCO)
In high-speed production, minor nozzle inconsistencies lead to major vision retries. GEEKVALUE optimizes your TCO by providing 03015854 Nozzles with Verified Dynamic Runout Control. By ensuring the nozzle remains perfectly vertical during high-speed rotation, we drastically reduce the rate of "Vision Mis-alignments" and component scrap.
2. Trusted by 400+ Public Companies
Global leaders in high-volume smartphone sub-assemblies and consumer electronics trust GEEKVALUE for their DX-series tooling. Our DX 1006 nozzles are the standard choice for listed companies that require "High-Velocity Reliability" on their flagship SMT lines.
3. Optimized for Next-Gen DX Platforms
GEEKVALUE’s 03015854 nozzles are inspected for Interface Geometry Precision. We ensure a perfect airtight seal between the nozzle and the DX head spindle, which is critical for maintaining the high-vacuum levels required for 0201 and 01005 (metric) components.
Frequently Asked Questions (FAQ)
Q1: Is the DX 1006 nozzle (03015854) compatible with CP20 heads?
No. The DX series nozzles are specifically designed for the SIPLACE DX-series heads. For CP20 or CP12 heads, please refer to the 2xxx, 4xxx, or 6xxx series nozzles.
Q2: What component sizes are best suited for the 03015854?
The DX 1006 is optimized for 0201 (inch) and 0402 (inch) passive components, providing a perfect balance of suction surface and tip clearance.
Q3: How does GEEKVALUE ensure the ESD safety of this nozzle?
Every 03015854 unit is tested for Surface Dissipative Continuity. We guarantee a resistance path that safely bleeds off static charges, protecting sensitive semiconductors from ESD damage during the pick-up and placement cycle.
Q4: How often should DX-series nozzles be inspected?
Due to the extreme speeds of DX platforms, GEEKVALUE recommends a Visual Inspection every 48 hours and a full ultrasonic cleaning weekly to maintain the high-precision pneumatic performance.
Q5: What is the packaging standard for DX-series precision nozzles?
Each 03015854 is delivered in a Sealed High-Impact ESD Capsule. This ensures that the ultra-lightweight shaft and the precision-ground tip are protected from the environment and physical stress until the moment of installation.
