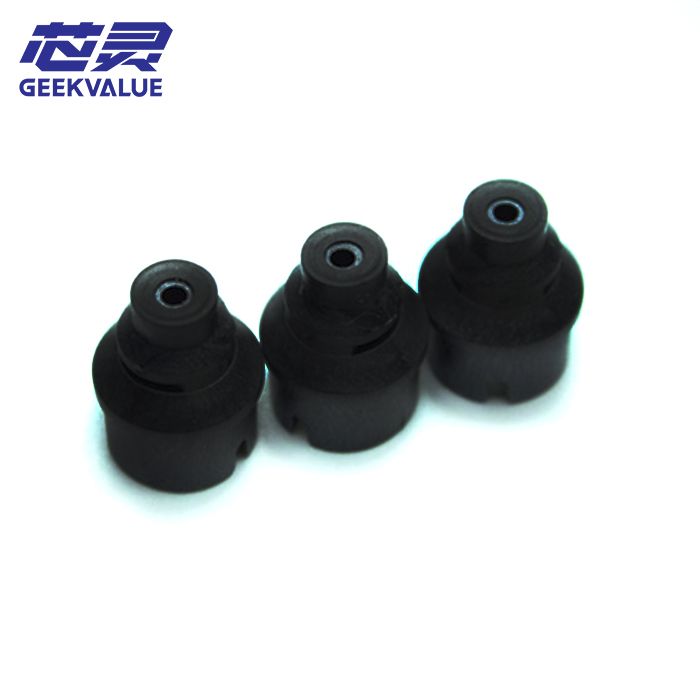

The ASM 00322593 (739/939) is a critical execution component for multi-generation SIPLACE placement heads. Known for its Robust Structural Geometry, the 739/939 series was designed to handle the transition between standard chip components and small specialized SMDs. Its internal architecture is characterized by a High-Compression Vacuum Seal, which is essential for maintaining suction power on older machines where the vacuum pump efficiency might have aged.
GEEKVALUE provides the "USED" 00322593 with a focus on Precision Recalibration. Unlike standard "as-is" second-hand parts, our certified 00322593 nozzles undergo a Dynamic Tip-Surface Refinishing Process. We ensure that the pick-up face is free from micro-chips and solder residue, restoring the original planar alignment required for $35\mu\text{m}$ placement accuracy.
Technical Specifications
Feature | Technical Data |
Product Type | Certified Refurbished Precision Nozzle |
Part Number (P/N) | 00322593 |
Nozzle Series | 739 / 939 |
Condition | Expertly Inspected & Cleaned (Certified USED) |
Compatible Heads | SIPLACE High-Speed & Multi-Star Series Heads |
Tip Material | Toughened Tool Steel / Carbide Composite |
Target Components | MELF, SOT, and Specialized Chip Components |
Strategic Performance Advantages
· Geometric Recovery Technology: For USED nozzles, the primary concern is "tip rounding." GEEKVALUE utilizes specialized micro-lapping equipment to restore the Sharp Edge Profile of the 00322593. This ensures that the vacuum seal remains airtight even on components with irregular top surfaces.
· Legacy System Compatibility: The 00322593 is fully optimized for the identification logic of older SIPLACE gantries. We verify the Reflective Recognition Rings on every unit, ensuring the machine's laser and vision sensors can identify the nozzle type instantly, preventing "Wrong Nozzle" errors during changeovers.
· Enhanced Anti-Stiction Treatment: Used nozzles often suffer from accumulated flux "stickiness." Each GEEKVALUE unit is subjected to an Acoustic Cavitation Cleaning Cycle, followed by the application of a thin-film anti-static barrier to ensure clean component release.
· Industrial-Grade Durability: Built from the original ASMPT high-carbon alloy, the 00322593 features a mechanical resilience that modern plastic-tipped nozzles lack. This makes it an ideal choice for Abrasive Environment Applications, such as high-volume automotive or power-tool PCB assembly.
The GEEKVALUE Advantage: "Sustainable Productivity"
1. 360° Total Cost Optimization (TCO)
For lines running older equipment, investing in brand-new OEM nozzles can be cost-prohibitive. GEEKVALUE optimizes your TCO by providing Certified USED 00322593 Nozzles at a fraction of the cost. By extending the life of your current assets with high-quality refurbished parts, we help you maintain profitability without sacrificing yield.
2. Trusted by 400+ Public Companies
Global electronics recycling and refurbishing leaders trust GEEKVALUE for their maintenance-critical components. Our 00322593 units are the standard choice for listed companies that require "Reliable Legacy Support" for their secondary and tertiary production lines.
3. Rigorous Quality Verification
GEEKVALUE’s 00322593 units are inspected for Shaft Concentricity and Vacuum Flow Consistency. We guarantee that each used nozzle meets at least 95% of the original vacuum retention specifications, providing a seamless "Plug-and-Play" experience for your maintenance teams.
Frequently Asked Questions (FAQ)
Q1: How do you guarantee the quality of a "USED" nozzle like the 00322593?
Every nozzle undergoes a 3-Step Quality Gate: 1. Microscopic Inspection for tip integrity; 2. Ultrasonic purification; 3. Vacuum seal verification on a simulated SIPLACE spindle.
Q2: Will the 00322593 fit the modern SIPLACE TX series?
This P/N is primarily for Legacy High-Speed and Multi-Star heads. While it may fit some cross-generation adapters, GEEKVALUE recommends confirming your specific head type (e.g., Star vs. Twin) before ordering.
Q3: Is the anti-static performance still effective on a used unit?
Yes. After our cleaning process, we verify the Surface Dissipative Path. If the original ESD coating is worn, the unit is rejected. We only sell nozzles that maintain their safety ratings for sensitive semiconductors.
Q4: Can this nozzle handle modern 0402 (inch) components?
Yes. The 739/939 geometry is very effective for standard 0402 and 0603 footprints, especially in applications where a slightly more robust, metallic tip is preferred over ceramic.
