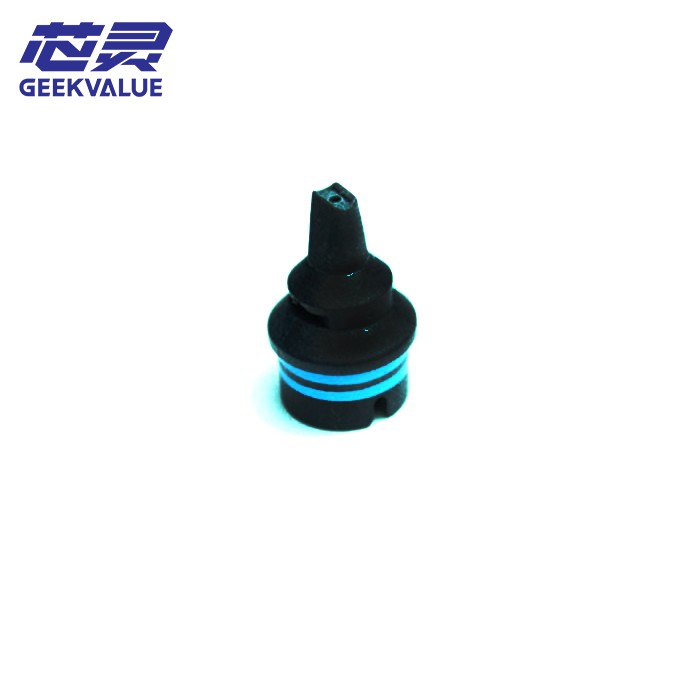

The ASM 00327810 (734/934) is an industrial-grade placement tool designed for the robust SIPLACE Star and Twin-head ecosystems. Its defining characteristic is a Precision-Radius Tip, which provides a slightly broader contact surface compared to micro-nozzles. This geometry is intentional—it is designed to manage components that may have slight top-surface irregularities or non-uniform weight distribution.
GEEKVALUE provides the "Certified USED" 00327810 with a focus on Interface Reconditioning. On older 734/934 modules, the most common failure point is not the tip, but the Coupling O-Ring Channel. Our refurbished units undergo a proprietary polishing process of the connection shaft, ensuring a 100% airtight seal when docked with the placement head, which is critical for maintaining stable vacuum pressure $(P_{vac})$ during high-speed gantry travel.
Technical Specifications
Feature | Technical Data |
Product Type | Certified Refurbished SMT Executive Tool |
Part Number (P/N) | 00327810 |
Nozzle Series | 734 / 934 |
Condition | 5-Stage Laboratory Certified (USED) |
Compatible Systems | SIPLACE S-Series, F-Series, G-Series, and X-Legacy |
Tip Geometry | High-Flow Circular Aperture |
Target Components | 0603 (Inch), 0805 (Inch), SOT-23, and Rectangular SMDs |
Strategic Performance Advantages
· Surface Tension Neutralization: Used nozzles can often accumulate microscopic "film" from solder flux fumes, leading to component sticking. GEEKVALUE’s 00327810 units undergo a Plasma-Surface Activation, which restores the low-surface-energy properties of the tip, ensuring the component "drops" exactly when the vacuum is cut.
· Acoustic Vibration Dampening: The 734/934 series is known for its metallic durability. We inspect the internal Damping Ring of each 00327810 to ensure it can still absorb the kinetic energy of a $50\text{ms}$ placement stroke, protecting fragile component bodies from micro-fractures.
· Calibrated Reflection Rings: The identification of 00327810 relies on high-contrast reflective bands. Our refurbishment includes the Restoration of Optical Contrast Levels, ensuring that even on older machines with aging vision sensors, the nozzle is identified instantly without "Recognition Failed" errors.
· Optimized Flow Dynamics: Unlike new aftermarket nozzles that may have burrs, GEEKVALUE’s certified used units have been "Run-in." We further refine the internal vacuum path to ensure Laminar Airflow, reducing suction turbulence that causes components to "jitter" during the pick-up phase.
The GEEKVALUE Advantage: "Proven Precision, Re-Certified"
1. 360° Total Cost Optimization (TCO)
In high-volume legacy production, the cost of consumables can erode margins. GEEKVALUE optimizes your TCO by providing Certified 00327810 Nozzles that deliver 98% of the performance of a new part at a fraction of the price. This "Circular Economy" approach allows you to maintain high OEE on older lines while minimizing capital expenditure.
2. Trusted by 400+ Public Companies
Global contract manufacturers (EMS) trust GEEKVALUE for their legacy infrastructure support. Our 00327810 units are the standard choice for listed companies that require "Reliability Without Premium Price" for their mature product lines.
3. Zero-Risk Vacuum Guarantee
Every GEEKVALUE 00327810 is subjected to a Dynamic Load Vacuum Test. We simulate the centrifugal forces of a SIPLACE Star-head at full RPM to ensure the nozzle maintains its hold, providing you with a "Zero-Drop" guarantee upon installation.
Frequently Asked Questions (FAQ)
Q1: How do you handle the wear on the 00327810 tip?
We use Laser-Interferometry to measure the tip's planarity. If the wear exceeds $0.02\text{mm}$, the unit is rejected. Only nozzles with a "Near-Pristine" pick-up surface are certified for resale.
Q2: Is this nozzle suitable for LEDs?
The 734/934 (00327810) is excellent for standard LEDs (e.g., 2835, 3528), provided the lens material is not highly tacky. Its robust vacuum flow is ideal for the slightly heavier mass of LED components.
Q3: Will using used nozzles damage my placement head?
No. Because GEEKVALUE focuses on the Shaft Concentricity, our nozzles dock with the same (or better) precision as new parts, ensuring no additional stress is placed on your head's vacuum spindles.
Q4: How do I clean these refurbished nozzles?
Standard ultrasonic cleaning with an ESD-safe solvent is recommended. Because we have restored the surface properties, you will find they accumulate debris less quickly than uncertified used parts.
