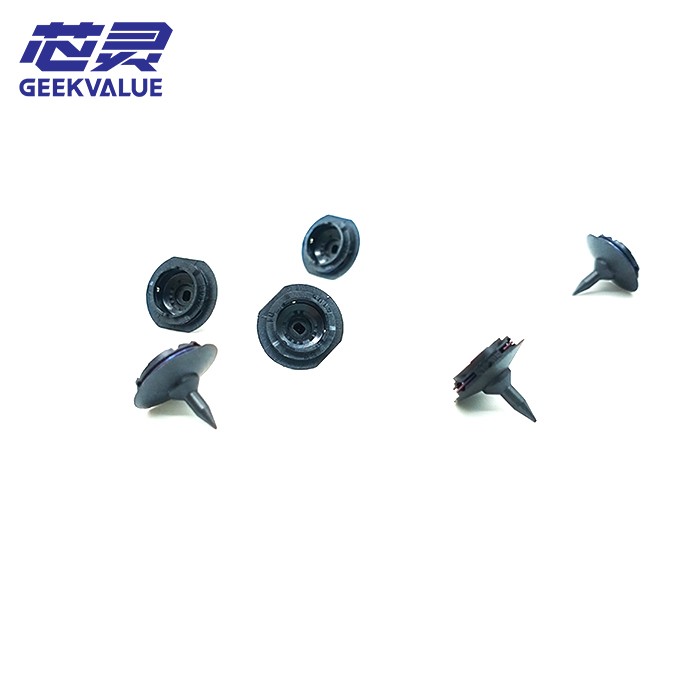

The ASM 03102457 (4105) is a high-performance nozzle engineered to meet the rigorous demands of high-density SMT assembly. In the assembly of smartphones and high-frequency RF modules, components are often placed with gaps of less than $0.15\text{mm}$. The 4105 nozzle features a Streamlined Tapered Profile, which minimizes the aerodynamic footprint during high-speed Z-axis descent. This ensures that the air displaced by the nozzle does not blow neighboring components out of position—a phenomenon known as the "Pressure Wave Effect."
GEEKVALUE provides the 03102457 with a focus on Bore Surface Integrity. For micro-nozzles, any roughness inside the vacuum channel can cause turbulence. Our 4105 nozzles are finished with a Mirror-Polished Internal Bore, providing a laminar vacuum flow that secures the component with absolute stability.
Technical Specifications
Feature | Technical Data |
Product Type | Micro-Component Specialized Nozzle |
Part Number (P/N) | 03102457 |
Nozzle Series | 4105 / 105 |
Compatible Head | SIPLACE CP20 (PowerHead) |
Tip Material | Anti-Static, High-Hardness Technical Ceramic |
Optimal Component Range | 0201 (Metric), 0402 (Metric), and Dense Passives |
Identification | Integrated Data Matrix / Shaft recognition |
Strategic Performance Advantages
· Precision-Concentric Shaft Alignment: The 03102457 is manufactured to extreme geometric tolerances. By ensuring the shaft and the ceramic tip are perfectly coaxial, the nozzle eliminates "Eccentric Picking," which is the primary cause of component damage during high-speed rotation.
· Thermal-Shock Resistant Ceramic: During 24/7 high-speed production, the nozzle tip experiences rapid temperature cycles due to friction and high-speed airflow. The 4105 utilizes a specialized Heat-Stabilized Ceramic, preventing micro-cracking and ensuring the tip remains airtight for millions of cycles.
· Active ESD Bleed-Off: Static electricity is the "silent killer" of 0201 components. The 03102457 is treated with a Permanent Dissipative Coating ($10^6$ to $10^9\text{ ohms}$), ensuring that any charge generated during the tape-peeling process is safely neutralized before the component touches the PCB.
· High-Contrast Silhouette for WPC: Optimized for SIPLACE Warp Page Compensation (WPC), the nozzle’s matte black finish provides a perfect contrast for laser and camera-based height sensing, allowing the machine to adjust placement force in real-time based on the exact component position.
The GEEKVALUE Advantage: "Stability in Miniaturization"
1. 360° Total Cost Optimization (TCO)
In micro-SMD placement, even a 0.1% increase in the pick-up error rate can result in significant financial loss over millions of parts. GEEKVALUE optimizes your TCO by providing 03102457 Nozzles with Individually Verified Vacuum Flow Rates. We ensure each nozzle performs within the original factory specification, protecting your OEE (Overall Equipment Effectiveness).
2. Trusted by 400+ Public Companies
Global leaders in 5G infrastructure and wearable tech manufacturing trust GEEKVALUE for their precision tooling. Our 4105 nozzles are the preferred choice for listed companies that require "Zero-Defect Capability" on their highest-density production lines.
3. Certified Nozzle-to-Head Interface
GEEKVALUE’s 03102457 nozzles are inspected for Interface Seal Purity. We ensure the docking surface between the nozzle and the CP20 spindle is flawless, preventing vacuum drops that cause intermittent placement errors during high-speed operation.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between the 4105 and 4107 nozzles?
The 4105 (03102457) is specifically optimized for a balance between 0201 (metric) and 0402 (metric). It has a slightly different tip geometry compared to the 4107 to better handle the air-flow characteristics of these specific footprints.
Q2: Is the 03102457 nozzle compatible with the SX series?
Yes. As long as your SX machine is equipped with the CP20 (PowerHead), this nozzle will dock perfectly and be automatically recognized by the system.
Q3: How does GEEKVALUE ensure the durability of the ceramic tip?
We use a High-Impact Sintered Ceramic that is specifically formulated to resist the "hammering" effect of high-speed placement strokes. This keeps the vacuum orifice edges sharp and efficient for a longer operational lifespan.
Q4: Can this nozzle be cleaned in an ultrasonic cleaner?
Yes. GEEKVALUE recommends regular cleaning with an approved solvent and a specialized nozzle-cleaning machine to ensure the micro-orifice remains free of solder paste residue and dust.
Q5: What is the packaging standard for the 4105 precision nozzle?
Each 03102457 is shipped in a Sealed ESD-Safe Protective Tube. This ensures the precision-machined shaft and the delicate ceramic tip are protected from environmental factors and physical shock during transit.
