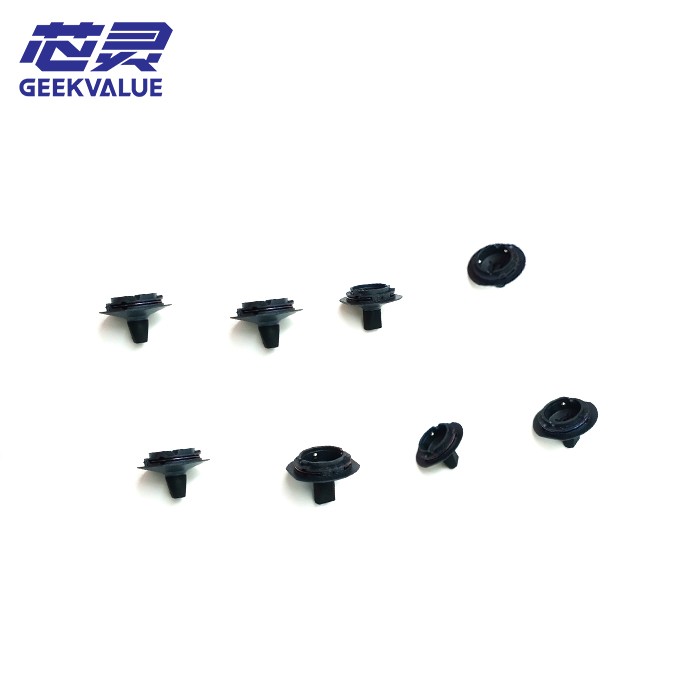

The ASM 03099728 (4035) is an elite-tier nozzle engineered for the most constrained placement environments in modern electronics. In 5G smartphones and wearable devices, the distance between components has shrunk to the point where standard nozzles risk physical interference. The 4035 nozzle features an Ultra-Tapered Tip Profile, meticulously ground to provide maximum lateral clearance. This allows the CP20 head to place components into "Deep Valleys" on the PCB where space is at a premium.
GEEKVALUE provides the 03099728 with a focus on Surface-Energy Neutralization. At the micro-scale of 01005/0201 components, the vacuum release is often hindered by molecular "stiction." Our 4035 nozzles utilize a Micro-Textured Ceramic Tip, which breaks the vacuum seal faster than polished surfaces, ensuring the component stays exactly where it is placed during the $30\mu\text{m}$ placement window.
Technical Specifications
Feature | Technical Data |
Product Type | High-Density Specialized Nozzle |
Part Number (P/N) | 03099728 |
Nozzle Series | 4035 |
Compatible Head | SIPLACE CP20 (PowerHead) |
Tip Construction | Nano-Grain High-Strength Technical Ceramic |
Optimal Component Range | 01005 (Metric), 0201 (Metric), and Ultra-Fine Passives |
ID System | Integrated Laser-Etched Recognition Shaft |
Strategic Performance Advantages
· "Shadow-Proof" Vision Silhouette: The 03099728 is finished with a non-reflective, deep-matte black coating that extends to the very edge of the tip. This ensures that the SIPLACE Vision System sees only the component leads, with no "light-leak" or halo effects from the nozzle itself, critical for $\pm 20\mu\text{m}$ accuracy.
· Aerodynamic Drag Reduction: At the cycle speeds achieved by the SIPLACE TX series, nozzle air resistance can cause micro-vibrations. The 4035's Streamlined Geometry minimizes turbulence during high-speed Z-axis movement, maintaining pick-up stability.
· Advanced ESD Dissipation Path: To protect sensitive ultra-low voltage ICs, the 03099728 provides a continuous, controlled electrical path from the tip to the head interface, ensuring a steady discharge of static $(\le 10^7\text{ ohms})$ throughout the production cycle.
· Self-Centering Vacuum Orifice: The internal vacuum bore of the 03099728 is machined using a Centric-Boring Process, ensuring the suction force is perfectly centered on the nozzle axis. This prevents the component from "tilting" during pickup, which is the primary cause of tombstoning in 01005 placement.
The GEEKVALUE Advantage: "Precision Without Compromise"
1. 360° Total Cost Optimization (TCO)
In ultra-high-density placement, one nozzle collision can cause significant rework costs. GEEKVALUE optimizes your TCO by providing 03099728 Nozzles with Verified Verticality. We ensure the nozzle shaft is perfectly perpendicular to the tip, eliminating the "Wobble" that leads to accidental contact with neighboring parts.
2. Trusted by 400+ Public Companies
Global leaders in SiP (System-in-Package) and advanced semiconductor packaging trust GEEKVALUE for their precision execution tools. Our 4035 nozzles are the standard choice for listed companies that require "Zero-Collision Integrity" on their most complex assembly lines.
3. Optimized for "TX-Series" High-Speed Platforms
GEEKVALUE’s 03099728 nozzles are inspected for High-Speed Signal Fidelity. We ensure that the mechanical recognition system on the nozzle shaft is crisp and clear, allowing for instantaneous nozzle changes and zero "ID Failed" errors on the latest SIPLACE TX2 platforms.
Frequently Asked Questions (FAQ)
Q1: How does the 4035 (03099728) compare to the 4105 nozzle?
The 4035 features a significantly narrower tip taper, making it the superior choice for boards where the gap between components is at the absolute physical limit (e.g., high-density RF modules).
Q2: Is this nozzle suitable for 01005 (0402 Metric) components?
Yes. The 03099728 is optimized for 01005 placement, providing the delicate vacuum balance and physical clearance necessary for these tiny footprints.
Q3: How does GEEKVALUE verify the ESD safety of this nozzle?
Every unit is tested with a Surface Resistivity Probe. We ensure that the dissipative coating is uniform and meets the stringent ESD requirements of the world's leading semiconductor manufacturers.
Q4: Can I clean the 4035 nozzle in an ultrasonic cleaner?
Yes, but given the micro-aperture of the 4035, GEEKVALUE recommends using a High-Pressure Micro-Cleaning System to ensure the vacuum channel is completely clear of solder paste and dust.
Q5: What is the packaging standard for 4035 precision nozzles?
Each 03099728 is shipped in a High-Impact ESD-Safe Capsule. This ensures that the ultra-fine ceramic tip is protected from any physical contact or environmental factors during transit and storage.
