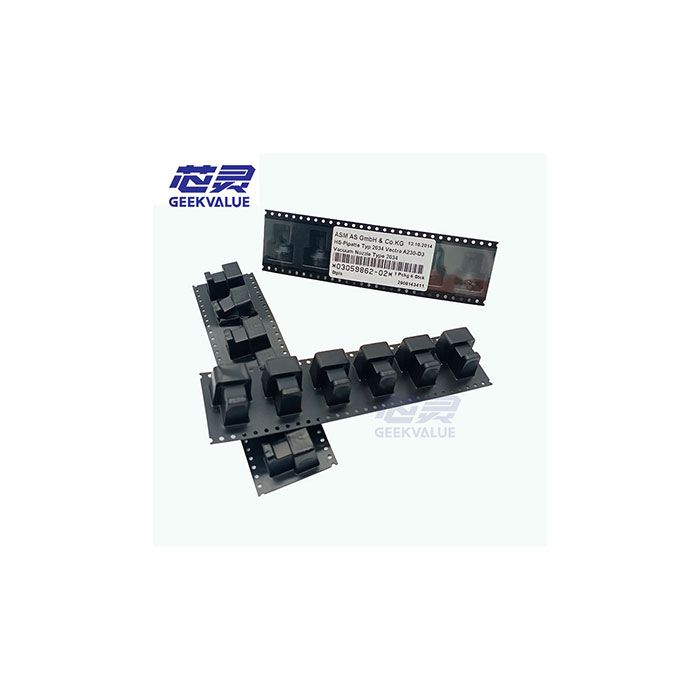

The ASM 03059862 (2034) is a high-reliability executive tool engineered for the versatile SIPLACE platform. Designed to be the "Standard Pick" for mid-sized passive components, this nozzle features a High-Traction Tip Interface. Unlike specialized micro-nozzles, the 2034 is built to handle the variations found in different component packaging—whether it's high-static plastic carrier tapes or dusty paper tapes.
GEEKVALUE provides the 03059862 with a focus on Bore Fatigue Resistance. We recognize that these "workhorse" nozzles endure the highest cycle counts on any SMT line. Our 2034 nozzles are manufactured using a Cryogenic Tempering Process, which densifies the material structure, ensuring the vacuum orifice maintains its crisp, sharp edge even after millions of high-speed placement strokes.
Technical Specifications
Feature | Technical Data |
Product Type | Standard-Efficiency SMT Nozzle |
Part Number (P/N) | 03059862 |
Nozzle Series | 2034 |
Compatible Heads | SIPLACE CP20 (PowerHead), CP12 (HighSpeed Head) |
Material | Hardened Anti-Static Alloy with Nano-Coating |
Optimal Components | 0402 (Inch), 0603 (Inch), SOT, and Small Diodes |
Recognition System | Machined Identification Rings with Auto-ID Support |
Strategic Performance Advantages
· High-Volume Vacuum Scavenging: The 2034 nozzle utilizes an internal Double-Tapered Bore. This design allows for a larger reservoir of vacuum pressure at the tip, which acts as a "buffer" to maintain a secure grip even if the component surface is slightly uneven or has heavy silk-screening.
· "Self-Cleaning" Aerodynamics: One of the main causes of 2034 failure is paper-tape dust accumulation. GEEKVALUE’s 03059862 features an Electropolished Internal Path that creates a friction-free surface for debris, allowing the air-blast cycle to effectively clear the nozzle every time, drastically reducing maintenance downtime.
· Zero-Tilt Mechanical Seating: The interface between the nozzle and the CP20 spindle is machined to a tolerance of $\pm 2\mu\text{m}$. This ensures that the nozzle sits perfectly perpendicular to the gantry, preventing the "Heel-Toe" placement errors that cause poor solder joints.
· Deep-Contrast Optical Marking: Optimized for the SIPLACE Vision System (SVP), the 03059862 uses a high-density black finish that absorbs 99.9% of ambient light. This provides a razor-sharp background silhouette, enabling the machine to perform ultra-fast offset calculations during the fly-over inspection.
The GEEKVALUE Advantage: "Stability in High Volume"
1. 360° Total Cost Optimization (TCO)
For high-volume production, the 2034 is often the most consumed nozzle type. GEEKVALUE optimizes your TCO by providing 03059862 Nozzles with Extended Maintenance Intervals. By reducing the frequency of manual cleanings and replacement cycles, we lower your direct consumable costs and indirect downtime costs.
2. Trusted by 400+ Public Companies
Global leaders in automotive interior electronics and power management modules trust GEEKVALUE for their high-cycle tooling. Our 2034 nozzles are the preferred choice for listed companies that require "Predictable Performance" across thousands of operational hours.
3. Optimized for "Mixed-Technology" Lines
GEEKVALUE’s 03059862 nozzles are inspected for Dynamic Flow Consistency. We ensure that the vacuum response time is identical across every nozzle in the batch, allowing your line to switch between different board designs without requiring software-level vacuum threshold adjustments.
Frequently Asked Questions (FAQ)
Q1: Is this 2034 nozzle compatible with the latest SIPLACE TX series?
Yes. The 03059862 is a standard interface nozzle for the CP20 and CP12 heads, which are the core placement engines for the TX, SX, and X series machines.
Q2: How does the 2034 handle components with OSP-treated pads?
The 2034’s High-Traction Tip is excellent for OSP boards. It provides the necessary lateral stability to ensure the component doesn't "slide" on the sticky flux or OSP coating during the placement descent.
Q3: How does GEEKVALUE verify the ESD safety of this series?
We perform Point-to-Point Resistance Testing on every unit. We guarantee a dissipative path ($10^6$ to $10^9 \Omega$) that prevents static buildup, protecting sensitive semiconductor junctions from EOS (Electrical Overstress).
Q4: Can this nozzle be used for small LEDs?
Yes, for standard 0603 or 0805-sized LEDs. However, for specialized silicon-lens LEDs, GEEKVALUE recommends a trial to ensure the vacuum aperture doesn't create a "ring mark" on the lens surface.
