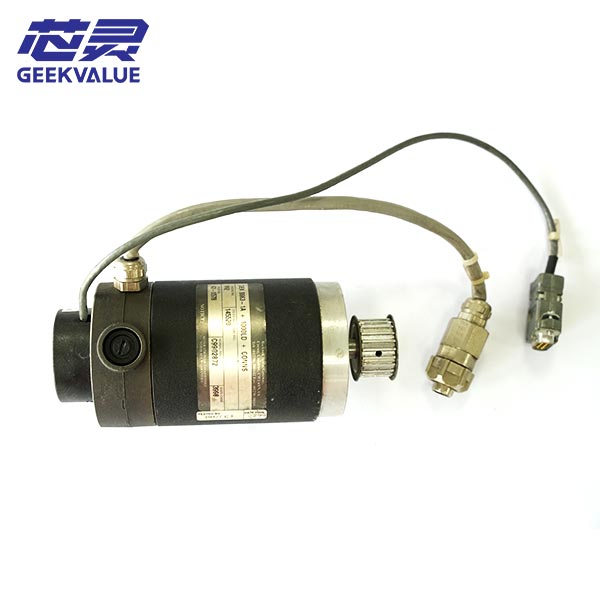

The DEK D-145520 is a specialized high-torque drive motor engineered for the vertical actuation systems of DEK Horizon, Infinity, and iX series printers. Whether governing the precision lift of the printing table or the downward force of the squeegee head, this motor is designed to maintain a constant, programmable pressure profile throughout the printing stroke. It translates digital force commands into physical mechanical movement with microscopic resolution, ensuring that the board-to-stencil contact is absolute, which is the foundational requirement for high-yield solder paste deposition.
GEEKVALUE provides the P/N D-145520 with a focus on Static Load Stability. We understand that in a printing cycle, the motor must hold its position under significant vertical pressure without "creeping"; our motors are verified for high holding torque to ensure your printing height remains rock-steady from the first board to the last.
Technical Specifications
Feature | Technical Data |
Product Type | Vertical Z-Axis / Squeegee Pressure Motor |
Part Number (P/N) | D-145520 |
Compatibility | DEK Horizon, Galaxy, and iX Series Platform |
Drive Interface | Integrated High-Resolution Digital Encoder |
Mechanical Role | Table Elevation & Squeegee Pressure Modulation |
Environmental Rating | Sealed Against Fine Particle & Flux Ingress |
Strategic Performance Advantages
· Constant Pressure Linearity: The D-145520 is optimized for "Force-Mode" operations. It delivers a linear torque-to-current ratio, allowing the DEK control system to micro-adjust the squeegee pressure on-the-fly. This prevents "scavenging" (scooping paste out of apertures) and ensures a uniform paste brick height across the entire PCB.
· High Holding Torque Architecture: To maintain the board at the precise "Z-home" position during the high-speed squeegee stroke, this motor features superior static holding power. This eliminates the microscopic "Z-axis sag" that can cause paste bleeding or smearing between the stencil and the board.
· Friction-Optimized Bearings: Recognizing that vertical drives often move in short, high-frequency strokes, the D-145520 utilizes specialized low-friction bearings. This prevents the "stiction" (static friction) that can lead to jerky movements during delicate stencil separation (Snap-off) cycles.
· Sealed Modular Design: The motor housing is specifically sealed to resist the ingress of fine solder particles and flux vapors. This protects the internal commutator and encoder from the abrasive "grinding" effect of dried solder paste, significantly extending the motor’s operational life in a standard SMT environment.
The GEEKVALUE Advantage: "Uniformity and Reliability"
1. 360° Total Cost Optimization (TCO)
Inconsistent Z-axis movement is a leading cause of bridge defects and insufficient paste volume. GEEKVALUE optimizes your TCO by providing D-145520 motors that have undergone Vertical Pressure Retention Tests. By ensuring a stable "Z-datum," we help you reduce the need for expensive automatic or manual 3D-SPI (Solder Paste Inspection) reworks.
2. Trusted by 400+ Public Companies
Global leaders in smartphone and high-frequency module assembly trust GEEKVALUE for their DEK printing infrastructure. Our P/N D-145520 is the preferred spare for listed companies that require absolute "Vertical Repeatability" to meet the narrow process windows of 01005 (metric) components.
3. Optimized for Smart Factory Traceability
In an Industry 4.0 environment, the squeegee pressure data is a vital quality record. GEEKVALUE’s D-145520 ensures that the electrical feedback data relayed back to your MES (Manufacturing Execution System) is high-fidelity, enabling the precise correlation between motor performance and actual printing quality.
Frequently Asked Questions (FAQ)
Q1: What are the symptoms of a failing D-145520 Motor?
A: Common indicators include "Table Height Error" alarms, inconsistent solder paste thickness across the board, or the squeegee head failing to maintain the programmed pressure, leading to "Squeegee Pressure Deviation" warnings.
Q2: Is this motor compatible with both the Front and Rear squeegee drives?
A: Yes, in many DEK configurations, the D-145520 serves as the primary pressure actuator for the print head. GEEKVALUE’s technical team will help you verify the exact mounting orientation and configuration for your specific machine model.
Q3: How does GEEKVALUE verify the "Force Response" of this motor?
A: Every unit is subjected to a Dynamic Torque Feedback Test. We measure the motor’s ability to respond to incremental current changes under a simulated vertical load, ensuring it meets the original DEK micro-pressure factory specifications.
Q4: Do I need to perform a "Z-Offset" calibration after installation?
A: Yes. GEEKVALUE strongly recommends performing a "Print Head Leveling" or "Table Height Calibration" run in the DEK software to ensure the new motor's home position is perfectly aligned with the machine's vision focal plane.
Q5: What is the packaging standard for this high-torque drive?
A: We use Heavy-Duty Industrial Shock Protection. Every D-145520 is vacuum-sealed and housed in a reinforced, custom-fitted foam enclosure to ensure the precision encoder and drive shaft are protected from transit-induced vibration.
