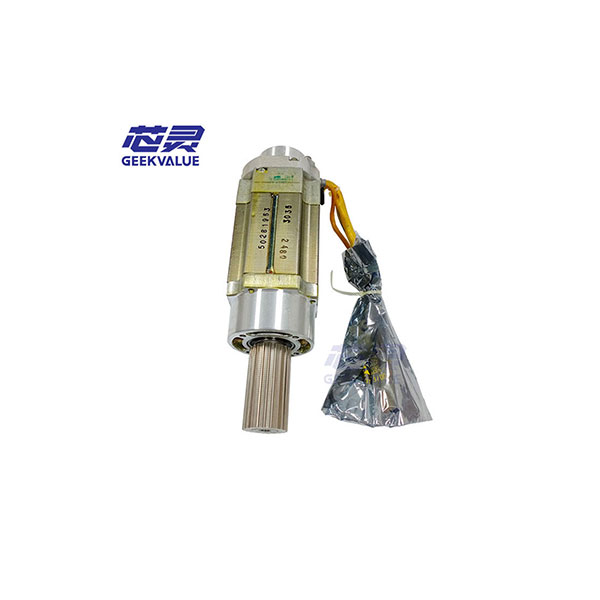

The ASM 00333167 is a high-performance primary drive motor specifically designed for the X-axis motion system of SIPLACE placement machines. This motor is the power source behind the gantry's rapid lateral movement, responsible for accelerating the placement head array to its target coordinates in milliseconds. Engineered to withstand constant, high-G "start-stop" cycles, the 00333167 ensures that the machine's mechanical throughput is matched by absolute positioning stability, even under the stress of 24/7 high-volume production.
GEEKVALUE provides the P/N 00333167 with a focus on Kinetic Precision. We understand that the X-axis is the most active component of the machine; our motors are verified for linear torque delivery and low electromagnetic cogging to ensure your gantry moves with fluid, vibration-free accuracy.
Technical Specifications
Feature | Technical Data |
Product Type | X-Axis High-Dynamics Servo/Linear Motor |
Part Number (P/N) | 00333167 |
System Compatibility | SIPLACE X, SX, and High-Speed S-Series Platforms |
Cooling Architecture | Optimized Heat-Dissipation Housing |
Function | Primary Gantry Longitudinal Positioning |
Condition | Performance Audited / Original Performance Specs |
Strategic Performance Advantages
· Superior Power-to-Mass Ratio: The 00333167 is designed to deliver immense peak torque without adding excessive weight to the motion assembly. This allows for higher acceleration ramps (G-force), directly translating to a higher net CPH for your production line.
· Low-Cogging Design: To prevent microscopic "steps" or "shudders" during slow-speed precision alignment, the motor features a specialized magnetic layout. This ensures the "Theta" and "Z" axes of the head are working from a perfectly stable X-axis base, which is critical for 0201 (metric) placement.
· Advanced Thermal Displacement Control: X-axis motors can generate significant heat. The 00333167 utilizes high-grade insulation and thermal-conductive materials to dissipate heat rapidly. This prevents the X-axis guide rails from expanding due to heat, maintaining your machine’s factory-calibrated "True Home" position throughout the shift.
· Ruggedized Feedback Integration: The motor is built to synchronize perfectly with SIPLACE high-resolution linear scales. This ensures the closed-loop system can detect and correct for even a 1-micron deviation instantly, ensuring long-term repeatability.
The GEEKVALUE Advantage: "Motion Stability"
1. 360° Total Cost Optimization (TCO)
X-axis failure often leads to catastrophic line stops. GEEKVALUE optimizes your TCO by providing 00333167 motors that have undergone Dynamic Load Fatigue Testing. By ensuring the motor operates within its ideal electrical efficiency window, we help you reduce the power consumption and mechanical wear on your gantry’s timing belts and bearings.
2. Trusted by 400+ Public Companies
Global automotive and aerospace electronics manufacturers trust GEEKVALUE for their primary motion drives. Our P/N 00333167 is the go-to spare for listed companies that require "Zero-Drift" performance on their gantry systems to meet the most demanding IPC quality standards.
3. Smart Factory Performance Tracking
In an Industry 4.0 setup, X-axis motor current is a leading indicator of mechanical health. GEEKVALUE’s 00333167 ensures that the "Torque Signature" reported to your maintenance software is consistent, allowing for the predictive detection of rail friction or belt tension issues before they cause a breakdown.
Frequently Asked Questions (FAQ)
Q1: What are the signs of a failing X-Axis Motor (00333167)?
A: Common indicators include "X-Axis Following Error," audible "humming" or "vibration" during high-speed travel, or the gantry failing to reach its maximum speed, resulting in lower-than-rated CPH.
Q2: Does this motor require special mounting or alignment?
A: Yes. Given the high speeds involved, the 00333167 must be mounted with precise tension and alignment relative to the X-axis drive belt or lead screw. GEEKVALUE recommends a full "Gantry Orthogonality Check" after installation.
Q3: How does GEEKVALUE verify the "Dynamic Integrity" of this motor?
A: Every unit is subjected to a High-G Acceleration Profile Test. We simulate the rapid movement patterns of a high-speed SMT cycle to ensure the motor maintains its magnetic strength and torque response under extreme heat and load.
Q4: Is this motor compatible with the Y-axis system?
A: While some motors in the SIPLACE range are similar, the 00333167 is specifically mapped for the X-axis load profile. GEEKVALUE’s technical team will verify your machine’s specific axis configuration to ensure 100% compatibility.
Q5: What is the packaging standard for this heavy-duty drive?
A: We use Reinforced Industrial Shock Protection. Every 00333167 is vacuum-sealed and housed in a heavy-duty, custom-fitted crate to ensure the precision-aligned shaft and magnetic core are protected from any transit-induced vibration or moisture.
