GEEKVALUE provides the P/N 00334495 with a focus on Kinetic Stability. We understand that in high-accuracy SMT placement, even a microscopic belt oscillation can translate into placement deviation; our guides are verified for surface smoothness and dimensional rigidity to ensure your X-axis travel remains mathematically precise.
Technical Specifications
Feature | Technical Data |

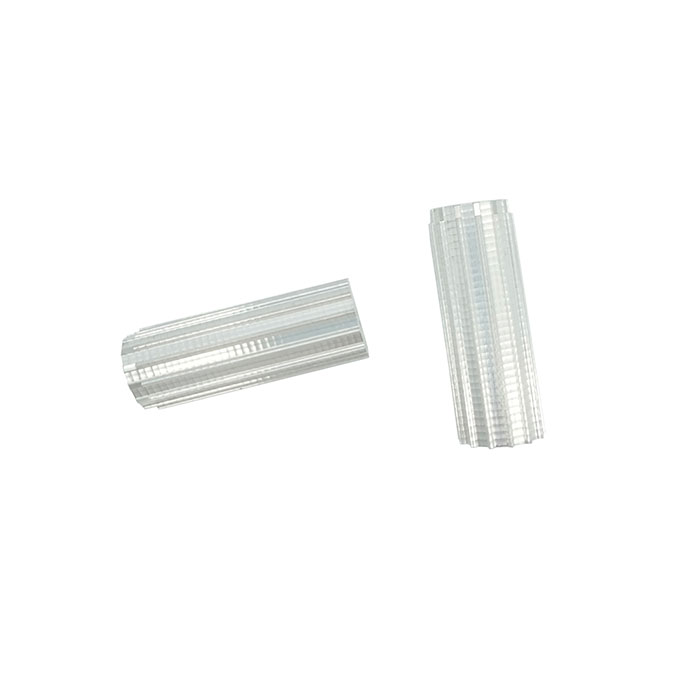

Product Type | X-Axis Timing Belt Guide / Support |
Part Number (P/N) | 00334495 |
System Compatibility | SIPLACE S23, F5hm, and High-Speed X-Series Platforms |
Material Composition | High-Wear Resistant Technical Polymer / Alloy |
Axis Assignment | X-Axis (Main Gantry Longitudinal Drive) |
Mechanical Role | Belt Alignment & Anti-Vibration Support |
Strategic Performance Advantages
· Low-Friction Surface Finish: The 00334495 is treated with a specialized low-friction coating that minimizes heat buildup and drag between the guide and the belt. This extends the service life of the expensive X-axis timing belt and reduces the power load on the X-axis servo motor.
· Aero-Dynamic Vibration Dampening: Specifically shaped to handle the turbulent air and rapid motion of the F5hm gantry, this guide dampens high-frequency mechanical resonance. This ensures that the placement head remains "rock-steady" even at its maximum rated acceleration.
· High Dimensional Rigidity: Manufactured to ultra-tight tolerances, the 00334495 maintains its structural integrity under the high tension of industrial SMT drives. This prevents the "Guide-Flex" that can cause intermittent positioning errors during heavy production loads.
· Optimized Belt Tracking: The internal geometry of the guide is engineered to keep the timing belt perfectly centered on its drive pulleys. This eliminates edge-wear on the belt and prevents the accumulation of rubber debris within the gantry’s sensitive optical encoder tracks.
The GEEKVALUE Advantage: "Mechanical Integrity"
1. 360° Total Cost Optimization (TCO)
A worn belt guide is a silent "profit killer," leading to premature belt failure and frequent X-axis recalibrations. GEEKVALUE optimizes your TCO by providing 00334495 guides that have undergone Friction and Wear Profiling. By ensuring a smooth belt path, we help you lower your long-term maintenance costs and prevent unplanned gantry downtime.
2. Trusted by 400+ Public Companies
Global automotive and high-reliability industrial electronics manufacturers trust GEEKVALUE for their gantry-level mechanical spares. Our P/N 00334495 is the go-to choice for listed companies that require the absolute mechanical stability needed for high-yield 0201 (metric) and ultra-fine pitch placement.
3. Smart Factory Accuracy Baseline
In a Smart Manufacturing environment, mechanical health is the foundation of digital accuracy. GEEKVALUE’s 00334495 ensures that your X-axis physical movement perfectly reflects the digital commands from your machine software, providing the consistent "Physical Layer" reliability required for AI-driven predictive maintenance.
Frequently Asked Questions (FAQ)
Q1: What are the symptoms of a worn 00334495 Belt Guide?
A: Common indicators include visible "fraying" on the edges of the X-axis belt, an audible "squealing" or "rubbing" sound during gantry travel, or intermittent "X-Axis Deviation" errors in the machine logs.
Q2: Is this guide compatible with older SIPLACE models?
A: The 00334495 is specifically optimized for the high-speed S23 and F5hm gantry architectures. GEEKVALUE’s technical team will help you verify your gantry generation to ensure this guide matches your machine’s physical mounting points.
Q3: How does GEEKVALUE verify the quality of this mechanical part?
A: Every unit is subjected to a Dimensional Tolerance Audit using high-precision micrometers and a surface roughness test. We ensure that every guide meets the strict original factory specifications for flatness and hardness.
Q4: Should I replace the X-axis belt and guide together?
A: GEEKVALUE recommends inspecting the belt guide whenever the X-axis timing belt is replaced. If the guide shows signs of uneven wear or grooves, replacing it along with the belt is the best practice to prevent the old guide from damaging the new belt.
Q5: What is the packaging standard for this mechanical spare?
A: We use Protective Moisture-Barrier Packaging. Every 00334495 is sealed in a protective bag and shipped in a reinforced, shock-proof box to ensure that its precision-machined surfaces arrive in pristine condition, ready for high-speed deployment.
