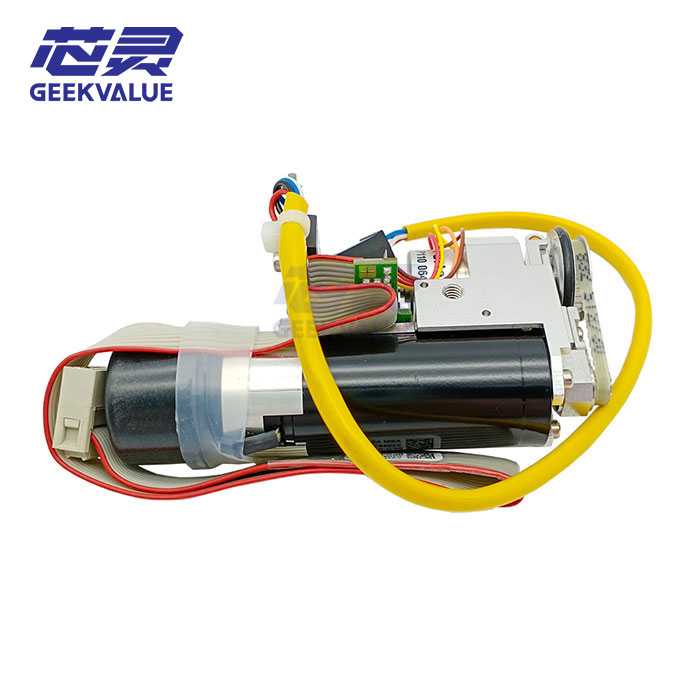

The ASM 03083835 is a high-performance turning system drive module specifically engineered for the DLM4 (Digital Line Module) head architecture. Incorporating the advanced CPL (Component Peripheral Link) protocol, this DP (Digital Positioning) drive manages the high-speed rotational orientation of the placement nozzles. It acts as the precision interface that translates the machine’s vision-corrected coordinates into physical angular adjustments, ensuring every component—from standard passives to complex ICs—is oriented with sub-degree accuracy before placement.
GEEKVALUE provides the P/N 03083835 with a focus on Angular Fidelity. In the multi-nozzle environment of the DLM4 head, any synchronization lag between the drive and the CPL bus can lead to "Angular Deviation" errors; our modules are verified for zero-latency digital response to keep your gantry running at its full rated CPH.
Technical Specifications
Feature | Technical Data |
Product Type | Turning System CPL / DP Drive |
Part Number (P/N) | 03083835 |
Head Compatibility | SIPLACE DLM4 (Digital Line Module) Heads |
Interface Protocol | CPL (Component Peripheral Link) |
Control Function | Theta-Axis (Rotation) Alignment & Compensation |
Architecture | Integrated Digital Logic & Power Stage |
Strategic Performance Advantages
· CPL Digital Link Integration: The 03083835 is fully optimized for the CPL bus, allowing for high-density data transmission over a simplified cabling architecture. This reduces electrical noise and ensures that the "Turning" command is executed with absolute priority and timing accuracy.
· High-Torque Micro-Orientation: Despite its compact footprint, this drive provides the high instantaneous torque required to rotate the nozzle and component instantly during the head’s travel. This eliminates the need for the gantry to slow down for orientation, maximizing the "Placement-on-the-Fly" efficiency.
· Dynamic Backlash Compensation: The internal logic of the 03083835 includes software-level compensation for mechanical play. This ensures that even after millions of cycles, the turning system maintains its "Zero-Point" accuracy, preventing the rotational drift that causes 0201 (metric) components to misalign.
· Thermal Duty Optimization: Designed for the enclosed, high-heat environment of the DLM4 head, the module features an efficient heat-dissipation substrate. This prevents "Thermal Throttle," ensuring the drive's internal logic remains stable during continuous, 24/7 high-speed production.
The GEEKVALUE Advantage: "Precision Orientation"
1. 360° Total Cost Optimization (TCO)
Intermittent "Theta-Axis Timeout" alarms are a common cause of line stops. GEEKVALUE optimizes your TCO by providing 03083835 modules that have undergone CPL Protocol Communication Stress Tests. By delivering a stable digital link, we eliminate the "Ghost Alarms" that lead to hours of diagnostic downtime and wasted technical labor.
2. Trusted by 400+ Public Companies
Global leaders in automotive electronics and high-frequency communication modules trust GEEKVALUE for their DLM4 head components. Our P/N 03083835 is the preferred spare for listed companies that require absolute "Angular Repeatability" to meet stringent quality standards for high-density PCBA.
3. Smart Factory Synchronization
In an Industry 4.0 environment, rotational accuracy is a key data metric. GEEKVALUE’s 03083835 ensures that the angular feedback data reported to the SIPLACE software is high-fidelity, enabling the real-time "Offset Tracking" needed for AI-driven process optimization.
Frequently Asked Questions (FAQ)
Q1: What are the symptoms of a failing Turning System CPL Drive (03083835)?
A: Common indicators include frequent "Theta Axis Deviation" errors, component "Angular Offset" visible in the post-placement inspection, or the machine failing to initialize the DLM4 head during the "Turning System Test."
Q2: Is this drive compatible with legacy CP12 or CP14 heads?
A: No. The 03083835 is specifically designed for the DLM4 / CPL architecture. GEEKVALUE’s technical team will help you verify your head generation to ensure this digital drive matches your gantry's communication bus.
Q3: How does GEEKVALUE verify the "Digital Accuracy" of this module?
A: Every unit is subjected to a CPL Bus Data Integrity Test. We verify that the drive responds to angular commands within original ASM microsecond tolerances and maintains stable torque output across its entire rotational range.
Q4: Do I need to re-calibrate the head after replacement?
A: Yes. GEEKVALUE recommends a full "Nozzle Rotation Calibration" and "Vision-to-Head Alignment" run via the SIPLACE service software to ensure the new digital drive is perfectly synchronized with the machine's optical sensors.
Q5: What is the packaging standard for this electronic module?
A: We use Class-0 ESD and Shock-Proof Packaging. Every 03083835 is vacuum-sealed in an antistatic moisture-barrier bag and protected by custom-fitted foam to ensure the delicate CPL logic and power electronics arrive in "Factory-Fresh" condition.
