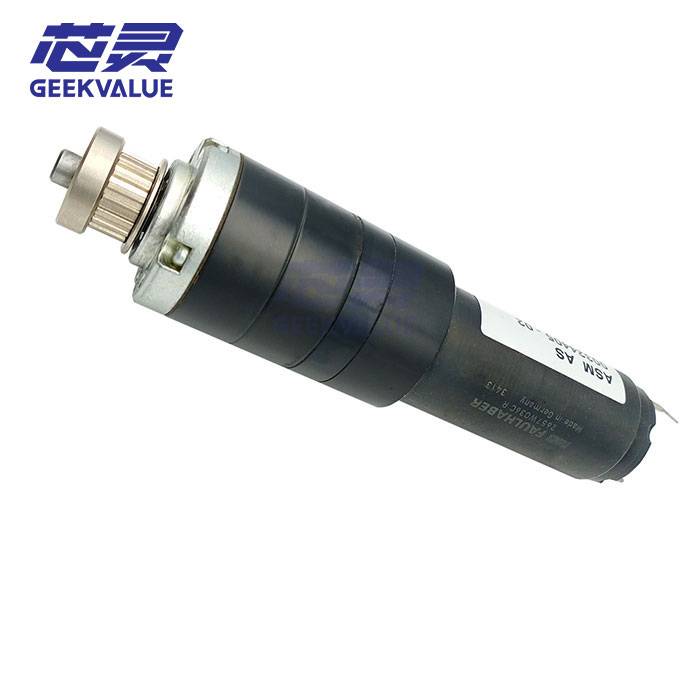

ASM SIPLACE Synchronizing Gear Motor | P/N: 00324405

The ASM 00324405 is a high-precision synchronizing gear motor engineered for the critical alignment axes of SIPLACE placement systems. This module combines a high-response motor with a precision-matched reduction gearbox designed to eliminate the mechanical "lag" often found in high-mass gantries. Its primary role is to ensure that parallel drive systems—such as those on large-format PCB conveyors or synchronized X-Y beams—move in perfect unison, preventing any mechanical skewing that could compromise placement accuracy.

GEEKVALUE provides the P/N 00324405 with a focus on Torsional Harmony. We recognize that in a synchronized drive system, even a 1° phase difference can lead to structural stress; our motors are verified for matched torque curves to ensure your gantry moves as a single, fluid unit.

Technical Specifications

Feature	Technical Data
Product Type	Synchronizing Gear / Drive Motor
Part Number (P/N)	00324405
Compatibility	SIPLACE Gantry Sync & Conveyor Drive Systems
Gearbox Design	Integrated Low-Backlash Reduction System
Function	Dual-Axis Synchronization & Torque Balancing
Interface	High-Fidelity Signal & Power Feedback Link



Strategic Performance Advantages

· High-Resolution Phase Control: The 00324405 is optimized for synchronized pulse-response. This allows the machine's controller to maintain identical positioning for dual-drive systems, ensuring the gantry remains perfectly perpendicular to the rails even during emergency stops or high-G accelerations.

· Precision-Ground Internal Gearing: The integrated gearbox features precision-ground teeth to achieve ultra-low backlash. This minimizes the "dead zone" during direction changes, which is vital for maintaining the sub-micron repeatability required for high-density PCBA.

· Integrated Vibration Dampening: Given its role in synchronized movement, the motor features internal mechanical dampening. This prevents harmonic resonance from traveling through the belt or lead-screw system, protecting the placement head’s sensitive optical sensors.

· Robust Thermal Displacement Management: The 00324405 utilizes specialized lubricants and housing materials that resist thermal expansion. This ensures that the motor's physical dimensions and torque output remain constant as the machine reaches operating temperature, preventing "mid-shift" calibration drift.

The GEEKVALUE Advantage: "Mechanical Balance"

1. 360° Total Cost Optimization (TCO)

A lack of synchronization is the leading cause of premature wear on gantry rails and timing belts. GEEKVALUE optimizes your TCO by providing 00324405 motors that have undergone Synchronous Torque Analysis. By ensuring a balanced drive, we help you extend the life of your entire X/Y motion system and reduce the frequency of expensive mechanical overhauls.

2. Trusted by 400+ Public Companies

Global leaders in high-speed industrial electronics trust GEEKVALUE for their gantry-level synchronization spares. Our P/N 00324405 is a mission-critical component for listed companies that operate large-scale, multi-gantry SMT lines where mechanical reliability is the foundation of profitability.

3. Optimized for "Smooth-Flow" Logistics

When used in PCB transport, the 00324405 ensures a "Smooth-Flow" transition between zones. GEEKVALUE’s motors prevent the "Board Shudder" that can displace components on the solder paste during high-speed board transfers, maximizing your first-pass yield.

Frequently Asked Questions (FAQ)

Q1: What are the symptoms of a failing Synchronizing Motor (00324405)?

A: Common indicators include "Gantry Skew" alarms, audible "clunking" sounds during gantry direction changes, or uneven belt wear. If the machine frequently loses its "Home" position on one side of the gantry, this motor is a primary suspect.

Q2: Can I replace just one motor in a dual-drive system?

A: While possible, GEEKVALUE recommends checking the performance profile of the opposing motor. For optimal synchronization, we suggest using motors with identical wear profiles to ensure the torque-response remains balanced across the entire gantry.

Q3: How does GEEKVALUE verify the "Phase Accuracy" of this motor?

A: Every unit undergoes a Dynamic Torque-to-Pulse Test. We verify that the motor responds to drive pulses within original ASM factory tolerances, ensuring zero mechanical lag between the electrical command and physical output.

Q4: Is the gearbox maintenance-free?

A: The 00324405 features a factory-sealed, long-life lubrication system. GEEKVALUE recommends periodic external inspection for debris, but the internal gear train is designed for high-cycle industrial use without requiring manual greasing.

Q5: What is the packaging standard for this high-torque module?

A: We use Heavy-Duty Industrial Packaging. Every 00324405 is vacuum-sealed and housed in a reinforced enclosure with custom-fitted foam to ensure the drive shaft alignment and internal gear integrity are preserved during transit.
