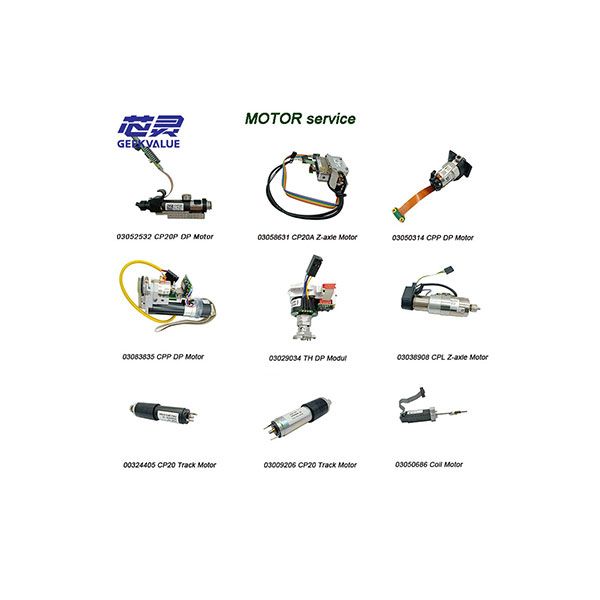

The ASM SIPLACE Drive System is the critical power-management layer that translates high-level software coordinates into physical high-speed motion. Spanning from X/Y gantry linear drives to specialized head actuators, these drives are the backbone of SIPLACE's legendary placement speed. Utilizing advanced power electronics, the SIPLACE drive architecture ensures that every acceleration ramp and braking phase is executed with absolute smoothness, protecting the machine's mechanical structure while maintaining sub-micron positioning accuracy.
GEEKVALUE provides a comprehensive range of SIPLACE drives with a focus on Signal Purity and Force Consistency. We understand that in a high-speed gantry environment, "Electrical Noise" is the enemy of precision; our drives are performance-verified to ensure zero-jitter operation during the most demanding production cycles.
Core Technical Pillars
Feature | Technical Benefit |
Closed-Loop Feedback | Real-time encoder synchronization for 100% position certainty. |
High-Bandwidth Response | Ultra-fast switching frequencies for millisecond-level latency. |
Thermal Management | Integrated heat-sinking to prevent "Drive-Drift" during 24/7 runs. |
EMI Shielding | Advanced filtration to protect sensitive CPL and Vision data. |
Regenerative Braking | Efficient energy handling to minimize wear on mechanical stops. |
Strategic Performance Advantages
· Adaptive Motion Profiling: SIPLACE drives utilize intelligent algorithms to calculate the optimal acceleration curves based on the gantry’s mass and the component’s sensitivity. This ensures that the gantry reaches its maximum speed without the mechanical "shock" that causes component displacement.
· Zero-Jitter Control Logic: Designed for the high-frequency environment of the X/Y axes, these drives maintain a perfectly stable current flow even at high RPMs. This stability is the foundation for placing ultra-fine-pitch components like 0201 (metric) and WLCSPs.
· Unified Bus Integration: Whether utilizing digital or analog interfaces, our SIPLACE drives are engineered to integrate seamlessly with the machine's central CPU. This ensures that "Gantry Sync" and "Head Triggering" occur in perfect harmony, maximizing the machine's Overall Equipment Effectiveness (OEE).
· Predictive Load Sensing: Many ASM drives feature localized load monitoring. By detecting abnormal current spikes, the system can alert operators to mechanical blockages or lack of lubrication before a component-damaging collision occurs.
The GEEKVALUE Advantage: "Dynamic Power Control"
1. 360° Total Cost Optimization (TCO)
A malfunctioning drive often leads to "Intermittent Positioning Errors" that are difficult to trace and result in massive board scrap. GEEKVALUE optimizes your TCO by providing SIPLACE Drives that have undergone Full-Load Cycle Stress Testing. By ensuring electrical stability, we help you eliminate the hidden costs of "Mystery Rejects" and unplanned gantry downtime.
2. Trusted by 400+ Public Companies
Global Tier-1 manufacturers trust GEEKVALUE for their gantry-level power electronics. Our range of ASM drives is the standard choice for listed companies that require the reliability of original-spec motion control to maintain their massive daily throughput targets.
3. Smart Factory Ready
In an Industry 4.0 environment, the drive is a vital sensor. GEEKVALUE’s drive components ensure that the energy and motion data reported to your Smart Factory software is high-fidelity, allowing for the advanced bottleneck analysis needed for a truly optimized production line.
Frequently Asked Questions (FAQ)
Q1: What are the indicators of a failing SIPLACE Gantry Drive?
A: Common signs include "Following Error" alarms, audible "hunting" sounds when the gantry is stationary, or visible "shuddering" during deceleration. If your placement accuracy degrades as the machine heats up, the drive’s thermal management may be failing.
Q2: Does GEEKVALUE support drives for older Generation S/F series as well as X/SX series?
A: Yes. We maintain a diverse inventory of drives across multiple machine generations. Our technical team can cross-reference your machine serial number to ensure 100% electrical and software compatibility.
Q3: How does GEEKVALUE test the "Dynamic Response" of these drives?
A: Every drive module is tested on a Dynamic Load Bench. We simulate the high-G acceleration profiles of an active placement head to ensure the drive maintains its voltage stability and logic integrity under maximum stress.
Q4: Is firmware configuration necessary after drive replacement?
A: Typically, yes. GEEKVALUE recommends a "Drive Commissioning" run through the SIPLACE service software to ensure the new drive’s parameters are perfectly matched to the mechanical inertia of your specific gantry.
Q5: What is the packaging standard for these power modules?
A: We use Class-0 ESD and Impact-Resistant Packaging. Every drive is vacuum-sealed in a moisture-barrier bag and protected by heavy-duty foam to ensure that sensitive power transistors and capacitors arrive in factory-fresh condition.
