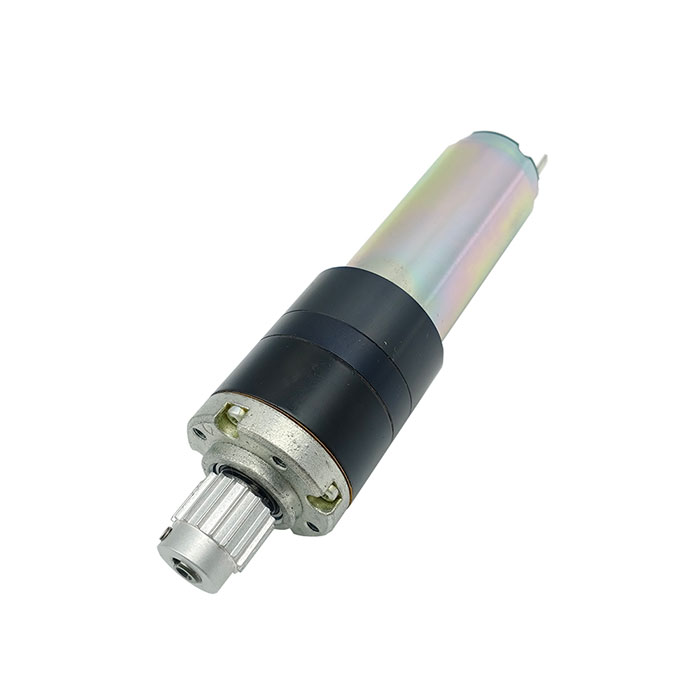

The ASM 03009269-02 is a high-reliability DC gear motor engineered for the intricate mechanical subsystems within SIPLACE placement heads. This module combines a high-speed DC motor with a precision-machined reduction gearbox to provide high output torque in an ultra-compact form factor. It is specifically designed to manage auxiliary "Gate" or "Switching" functions where consistent, repeatable mechanical force is required to ensure the placement head’s internal logic remains synchronized.
GEEKVALUE provides the P/N 03009269-02 with a focus on Torsional Reliability. We understand that a failure in a secondary actuator can cause a total head stoppage; our gear motors are verified for gear-mesh integrity and consistent RPM output to ensure your head's auxiliary movements are as precise as its primary axes.
Technical Specifications
Feature | Technical Data |
Product Type | DC Brushed/Brushless Gear Motor |
Part Number (P/N) | 03009269-02 |
Head Compatibility | SIPLACE Multi-Nozzle and Rotary Head Series |
Gearbox Type | Integrated High-Ratio Precision Reducer |
Function | Auxiliary Head Actuation & Mechanism Control |
Voltage/Current | Optimized for SIPLACE Head Logic Drivers |
Strategic Performance Advantages
· Zero-Slip Torque Transmission: The integrated gearbox of the 03009269-02 is manufactured with hardened alloy gears. This ensures that the motor delivers constant torque without internal slipping, which is critical for mechanisms that must overcome the mechanical resistance of spring-loaded shutters or locking pins.
· Space-Efficient Inline Design: Specifically designed for the "High-Density" environment inside the SIPLACE head gantry, the motor’s slim profile allows it to be mounted in tight quarters without interfering with the primary Z or Theta axis travel.
· Low Electromagnetic Interference (EMI): The motor is equipped with internal suppression components to minimize electrical noise. This prevents the DC brush switching from interfering with the highly sensitive CPL digital buses and vision signals located nearby on the gantry.
· Long-Life Commutation: Built for industrial duty cycles, the 03009269-02 utilizes high-grade brush materials and precision bearings. This ensures the motor maintains its starting torque and response time even after millions of actuation cycles in the warm environment of an active SMT head.
The GEEKVALUE Advantage: "Actuation Assurance"
1. 360° Total Cost Optimization (TCO)
A sluggish or failing gear motor can lead to intermittent "Mechanism Timeout" errors that are notoriously difficult to diagnose. GEEKVALUE optimizes your TCO by providing 03009269-02 motors that have undergone Full-Cycle Load Testing. By ensuring the motor hits its torque targets instantly, we help you avoid the "Ghost Alarms" that reduce your line's OEE.
2. Trusted by 400+ Public Companies
Global electronics manufacturers rely on GEEKVALUE for their high-precision head-level spares. Our P/N 03009269-02 is a critical inventory item for listed companies that maintain large fleets of SIPLACE machines and require the absolute reliability of original-spec DC drives.
3. Smart Factory Mechanical Feedback
In a Smart Manufacturing setup, the timing of every mechanical sub-action is monitored. GEEKVALUE’s 03009269-02 ensures that the mechanical actuation times remain within the factory-defined "Gold Window," providing the consistent performance needed for the machine's self-diagnostic systems to function correctly.
Frequently Asked Questions (FAQ)
Q1: What are the symptoms of a failing DC Gear Motor (03009269-02)?
A: Common indicators include "Mechanical Timeout" errors, a "sluggish" response from the head's auxiliary parts, or an audible grinding noise from the gearbox. If a specific nozzle-changing or locking function becomes intermittent, this motor is a primary suspect.
Q2: Is this motor a direct replacement for the -01 revision?
A: The -02 revision typically features improved gear materials or electrical connectors. GEEKVALUE’s technical team will verify your head's specific revision history to ensure the 03009269-02 is a 100% "Drop-In" replacement for your hardware.
Q3: How does GEEKVALUE verify the "Torque Integrity" of these motors?
A: Every unit is subjected to a Stall Torque and RPM Stability Test. We verify that the gearbox maintains its rated output under load without internal backlash or overheating, ensuring it meets ASM's strict operational standards.
Q4: Do I need to lubricate the gearbox before installation?
A: No. The 03009269-02 is a sealed unit, factory-lubricated with high-performance synthetic grease designed for the life of the motor. Opening the gearbox can introduce contaminants and is not recommended.
Q5: What is the packaging standard for this precision actuator?
A: We use Class-0 ESD and Shock-Proof Packaging. Every 03009269-02 is vacuum-sealed and housed in custom-fitted foam to ensure the delicate drive shaft and internal gear alignment are preserved during transit.
