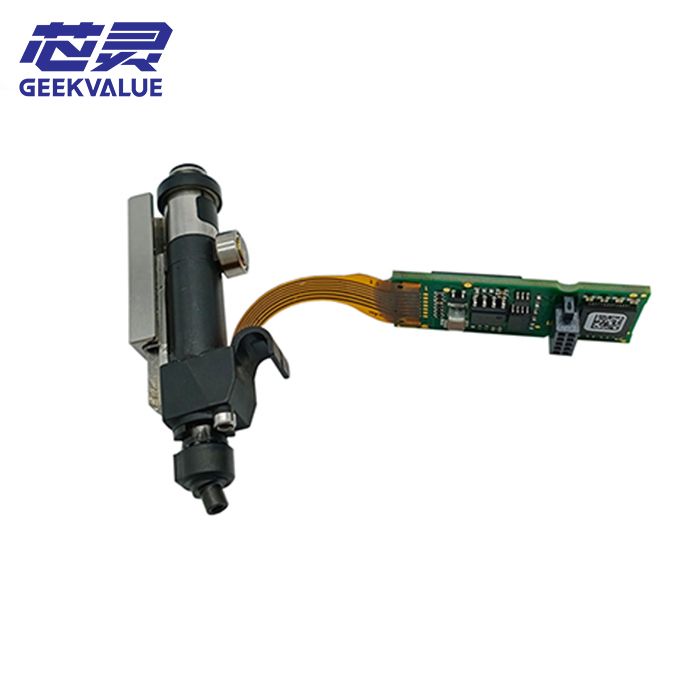

The ASM 03102532 is a specialized DP (Digital Positioning) drive module engineered specifically for the CP20P2 high-performance rotary head. In the demanding environment of the P2 series, where gantry speeds and placement frequencies reach their physical limits, this driver board provides the critical computational power required for real-time motion compensation. It manages the ultra-fast indexing and Z-axis synchronization of 20 nozzles, ensuring that even at peak CPH, every component is placed with absolute geometric fidelity.
GEEKVALUE provides the P/N 03102532 with a focus on Dynamic Equilibrium. We understand that for the CP20P2 head, any micro-jitter in the drive signal can result in 01005 (metric) placement errors; our boards are verified for "Signal-to-Motion" purity to ensure your high-performance gantries remain stable under maximum acceleration.
Technical Specifications
Feature | Technical Data |
Product Type | CP20P2 Dedicated DP Digital Driver |
Part Number (P/N) | 03102532 |
Head Compatibility | SIPLACE CP20P2 / CP20P Series Performance Heads |
Control Interface | Enhanced CPL (Component Peripheral Link) Interface |
Logic Speed | High-Frequency Real-Time Positioning Processing |
Mounting Architecture | Optimized for SIPLACE X/SX-Series Head Gantries |
Strategic Performance Advantages
· P2-Series Logic Optimization: The 03102532 is hardware-tuned to support the aggressive motion profiles of the CP20P2 head. It features enhanced buffer capacities to handle the dense telemetry data generated during "Placement-on-the-Fly" at ultra-high speeds.
· Precision Current Shaping for High-Torque Cycles: To support the rapid rotational indexing of 20 nozzles, this DP driver utilizes advanced current-shaping algorithms. This prevents thermal spikes in the head's motors, allowing for continuous, 24/7 high-speed operation without accuracy degradation due to "Heat Drift."
· Zero-Latency Sync with Vision System: Engineered to work in tandem with the machine’s vision logic, the 03102532 ensures that corrections for component "Offset" or "Skew" are executed instantly. This eliminates the "Wait-State" between component recognition and placement, maximizing your net throughput.
· Vibration-Dampened Circuit Architecture: Given its placement on high-G moving gantries, the 03102532 is built on a high-durability substrate that resists the mechanical fatigue caused by constant rapid acceleration and deceleration, ensuring a long service life in high-volume environments.
The GEEKVALUE Advantage: "Performance Continuity"
1. 360° Total Cost Optimization (TCO)
For the CP20P2 head, even minor "DP Bus" instabilities can lead to massive rejection rates. GEEKVALUE optimizes your TCO by providing 03102532 modules that have undergone Simulated Full-Speed Stress Tests. By ensuring a stable "Logic-to-Mechanical" link, we help you eliminate the component attrition costs associated with intermittent drive failures.
2. Trusted by 400+ Public Companies
Listed companies in the high-end smartphone and semiconductor packaging sectors trust GEEKVALUE for their CP20P2 head electronics. Our P/N 03102532 is the standard spare for manufacturers who require the absolute maximum output from their SIPLACE lines without compromising on "First-Pass Yield" (FPY).
3. Optimized for Industry 4.0 Traceability
The CP20P2 head is a data-heavy environment. GEEKVALUE’s 03102532 ensures that the digital response logs relayed back to the system are accurate and high-fidelity, enabling the advanced "Process Analytics" required for truly smart SMT production lines.
Frequently Asked Questions (FAQ)
Q1: What are the symptoms of a failing 03102532 on a CP20P2 head?
A: Common indicators include "CPL Communication Timeouts," inconsistent rotation angles across the nozzle segments, or specific "Head-Axis Calibration" failures during machine startup.
Q2: Can I use the 03102532 on a standard CP20 head (non-P2)?
A: While the physical footprint may be similar, the 03102532 is specifically mapped for the Performance (P/P2) series logic. GEEKVALUE’s technical team will verify your machine's software version and head type to ensure 100% firmware compatibility.
Q3: How does GEEKVALUE verify the "High-G" reliability of this board?
A: Every board is subjected to a Dynamic Logic Consistency Test. We simulate the electrical and communication stress of a CP20P2 head running at its maximum rated acceleration to ensure the board maintains its signal integrity under extreme conditions.
Q4: Is any software setup required after replacement?
A: The board is "Plug-and-Play" at the hardware level, but GEEKVALUE recommends performing a "Head Initialization" and a "DP Axis Synchronicity Run" via the SIPLACE service tools to ensure the new driver is perfectly tuned to your machine’s gantry parameters.
Q5: What is the packaging standard for this high-density module?
A: We use Class-0 ESD and Moisture-Barrier Shielding. Every 03102532 is vacuum-sealed and protected by shock-absorbent, anti-static foam to ensure the delicate digital logic and surface-mount components arrive in pristine condition.
