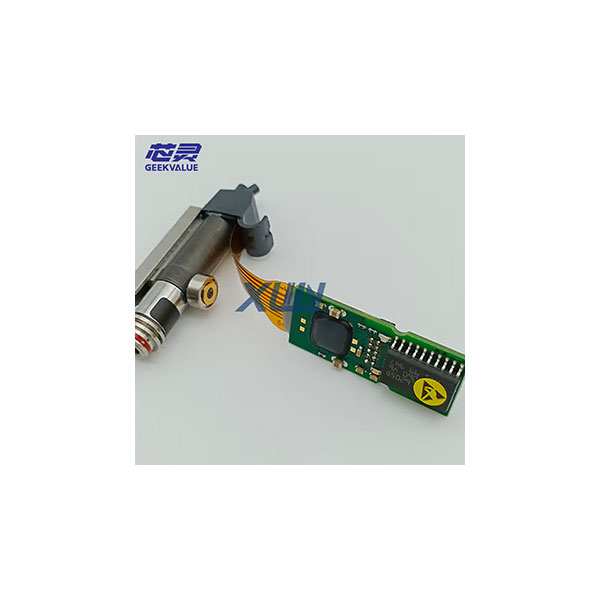

The ASM 03058627 is a high-performance DP (Digital Positioning) driver board specifically engineered for the CP20A rotary head architecture. Managing a 20-nozzle array requires a drive system with immense data throughput and precise timing; the 03058627 is designed to synchronize the pick-and-place movements of all 20 segments in a single revolution. It translates high-level gantry commands into micro-movements for the head’s internal actuators, ensuring that each nozzle achieves perfect alignment and Z-axis depth with sub-millisecond latency.
GEEKVALUE provides the P/N 03058627 with a focus on Parallel Processing Integrity. We recognize that in a CP20A head, a single logic error can affect 20 placement cycles; our boards are verified for high-speed signal consistency to ensure your machine maintains its maximum theoretical CPH without intermittent head-stoppages.
Technical Specifications
Feature | Technical Data |
Product Type | CP20A Dedicated DP Driver Board |
Part Number (P/N) | 03058627 |
Head Compatibility | SIPLACE CP20A / CP20 Series Rotary Heads |
Control Architecture | Multi-Channel Digital Positioning Logic |
Signal Response | Ultra-Low Phase Latency for High-Speed Indexing |
Protection Logic | Integrated Voltage Ripple & Thermal Load Protection |
Strategic Performance Advantages
· High-Bandwidth Multi-Channel Logic: The 03058627 is optimized to handle the dense data streams inherent in a 20-segment head. It ensures that the "Theta" and "Z" commands for all 20 nozzles are processed without data collisions, maintaining placement accuracy even at the machine's maximum rated speeds.
· Dynamic Torque Balancing: To compensate for the mechanical inertia of a fully loaded 20-nozzle head, the board features intelligent current-shaping algorithms. This prevents "Overshoot" during rapid rotational indexing, which is vital for the stable handling of 01005 and 0201 components.
· Ultra-Low Phase Noise Architecture: Engineered for the electrically noisy environment of the gantry, the 03058627 utilizes enhanced localized filtering. This protects the digital positioning signals from EMI, ensuring that the "Placement Trigger" is executed with absolute timing precision.
· Rapid Thermal Equilibrium: Given the high frequency of switching on a CP20A head, the 03058627 is built on a high-thermal-conductivity substrate. This ensures that the drive's internal components reach and maintain a stable operating temperature quickly, preventing "Cold-Start" accuracy drift.
The GEEKVALUE Advantage: "Synchronized Excellence"
1. 360° Total Cost Optimization (TCO)
A malfunctioning DP driver on a CP20A head can lead to "Multi-Segment Failures," effectively crippling the machine's throughput. GEEKVALUE optimizes your TCO by providing 03058627 boards that have undergone Full-Cycle Bus Stress Tests. By delivering a stable digital interface, we help you maximize the uptime of your most productive gantries.
2. Trusted by 400+ Public Companies
Tier-1 EMS providers specializing in high-volume consumer electronics rely on GEEKVALUE for their CP20A head electronics. Our P/N 03058627 is the trusted choice for listed companies that require "Zero-Stall" performance to meet their stringent daily production quotas.
3. Industry 4.0 Data Fidelity
In a Smart Factory, the DP driver is a critical source of feedback. GEEKVALUE’s 03058627 ensures that the actuator response data relayed back to the SIPLACE OS is high-fidelity, providing the accurate metrics needed for real-time line balancing and OEE (Overall Equipment Effectiveness) reporting.
Frequently Asked Questions (FAQ)
Q1: What are the common symptoms of a failing 03058627 DP Driver?
A: Typical indicators include "Head Communication Failure," inconsistent placement angles across multiple nozzles in the CP20A array, or specific segments failing to descend during the "Pick" phase.
Q2: Is the 03058627 compatible with the CPP or DLM series heads?
A: No. The 03058627 is specifically logic-mapped for the CP20A/CP20 rotary architecture. Using this board on a different head type will result in "DP Bus Protocol" errors. GEEKVALUE’s technical team can help you verify your head configuration.
Q3: How does GEEKVALUE verify the quality of this multi-segment driver?
A: Every board undergoes a 20-Channel Logic Verification. We use high-speed logic analyzers to ensure that each output channel triggers within ASM’s microsecond-level factory specifications.
Q4: Do I need to re-calibrate the head after replacement?
A: Yes. GEEKVALUE recommends a full "Head Initialization" and a "Nozzle-to-Camera Alignment" run via the SIPLACE service software to ensure the new electronic timing is perfectly synced with the machine’s vision system.
Q5: What is the packaging standard for this high-density electronic module?
A: We use Class-0 ESD and Moisture-Barrier Packaging. Every 03058627 is vacuum-sealed and housed in custom-fitted, shock-absorbent foam to ensure the delicate digital logic and surface-mount components arrive in pristine condition.
