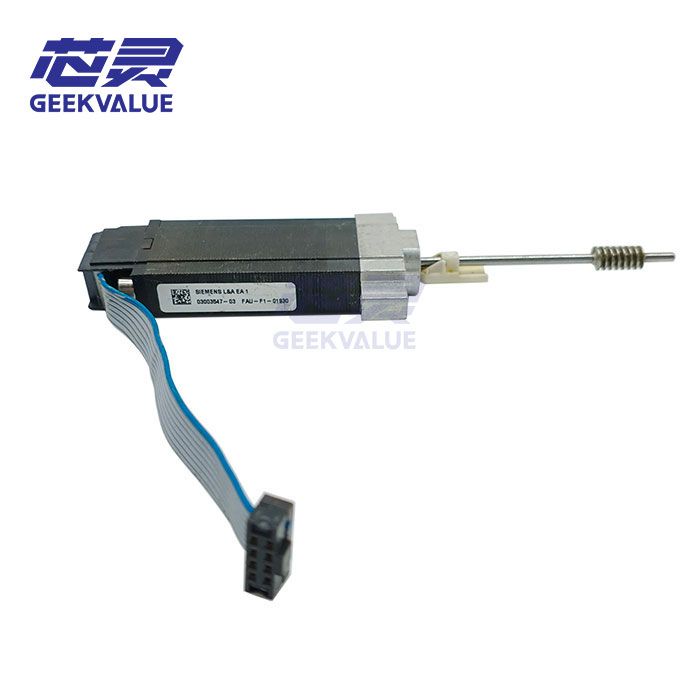

The ASM 03003547 is a specialized precision drive motor designed for the indexing mechanisms of ASM SIPLACE feeding systems. Unlike standard motors, this module is engineered to provide high static holding torque, ensuring that once the carrier tape is advanced, it remains locked in position against the mechanical tension of the cover tape peeling process. It is a critical component for maintaining a stable "Pick-Point" during high-speed, continuous placement operations.
GEEKVALUE provides the P/N 03003547 with a focus on Torsional Consistency. We recognize that any fluctuation in motor torque can cause the carrier tape to "rebound," leading to pickup errors; our motors are verified for linear power delivery to ensure your feeders maintain a 99.9%+ pickup success rate.
Technical Specifications
Feature | Technical Data |
Product Type | Feeder Indexing & Drive Motor |
Part Number (P/N) | 03003547 |
Compatibility | SIPLACE S-Feeder Series and Specialized Tape Modules |
Drive Logic | High-Resolution Stepping Architecture |
Torque Profile | Optimized for High-Speed Peeling Resistance |
Condition | Performance Audited / Original Standards |
Strategic Performance Advantages
· Synchronized Peeling Support: The 03003547 is tuned to handle the variable resistance of cover tape peeling. It provides sufficient counter-torque to prevent the carrier tape from slipping or vibrating while the cover tape is being removed, which is vital for the stability of small components (e.g., 0402 or 0603).
· Low-Resonance Stepping: Utilizing advanced internal dampening, this motor minimizes the mechanical resonance typically found in stepper-driven systems. This ensures that components do not "jump" in their pockets during the advancement phase, even at maximum indexing speeds.
· Heavy-Duty Commutation: Designed for millions of indexing cycles, the 03003547 features hardened internal gear interfaces and wear-resistant brushes (where applicable), ensuring the motor's mechanical life matches the long-term durability of the SIPLACE feeder body.
· Precision Shaft Alignment: The drive shaft of the 03003547 is machined to ultra-tight tolerances, ensuring a perfect "Zero-Backlash" fit with the feeder’s internal gear train. This prevents the cumulative mechanical play that often leads to "shingling" or misaligned component pockets.
The GEEKVALUE Advantage: "Feed with Confidence"
1. 360° Total Cost Optimization (TCO)
Feeder motor failure is often a gradual process that begins with increased component attrition. GEEKVALUE optimizes your TCO by providing 03003547 motors that have undergone Continuous Torque-Load Testing. By ensuring the motor operates within its peak efficiency window, we help you avoid the hidden costs of wasted components and frequent feeder rework.
2. Trusted by 400+ Public Companies
Global electronics manufacturing leaders trust GEEKVALUE for their gantry and feeder maintenance infrastructure. Our P/N 03003547 is a reliable spare for listed companies that require consistent, repeatable feeding performance to maintain their Tier-1 quality certifications.
3. Optimized for High-Density Layouts
The thermal profile of the 03003547 is optimized for high-density feeder banks. It maintains a cool operating temperature even when surrounded by dozens of active feeders, preventing heat from transferring to the carrier tape and affecting the adhesive properties of the solder paste.
Frequently Asked Questions (FAQ)
Q1: How does the 03003547 differ from the 03050686 motor?
A: While both are feeder motors, the P/N 03003547 is often associated with different feeder generations or specific torque requirements for larger tape widths. GEEKVALUE’s technical team will cross-reference your specific feeder model to ensure you receive the correct motor for your application.
Q2: What are the signs of "Motor Fatigue" in the 03003547?
A: Signs include the feeder making a "struggling" sound during advancement, components being "half-covered" by the shutter, or the feeder failing to index after a long production run due to thermal expansion.
Q3: Does GEEKVALUE test these motors for "Step Loss"?
A: Yes. Every 03003547 undergoes a Digital Pulse-Consistency Test. We verify that the motor completes exactly the required angular rotation for every command pulse, ensuring zero cumulative error over thousands of cycles.
Q4: Can I replace just the motor, or should I replace the gear train as well?
A: If the motor has failed due to internal wear, GEEKVALUE recommends inspecting the drive gears for damage. However, the 03003547 is a standalone module designed for easy replacement within the feeder housing.
Q5: What is the packaging standard for this precision drive?
A: We use Industrial ESD and Humidity-Controlled Packaging. Every 03003547 is sealed and protected by shock-absorbent foam to ensure the shaft's alignment and the motor's magnetism are fully preserved during shipping.
